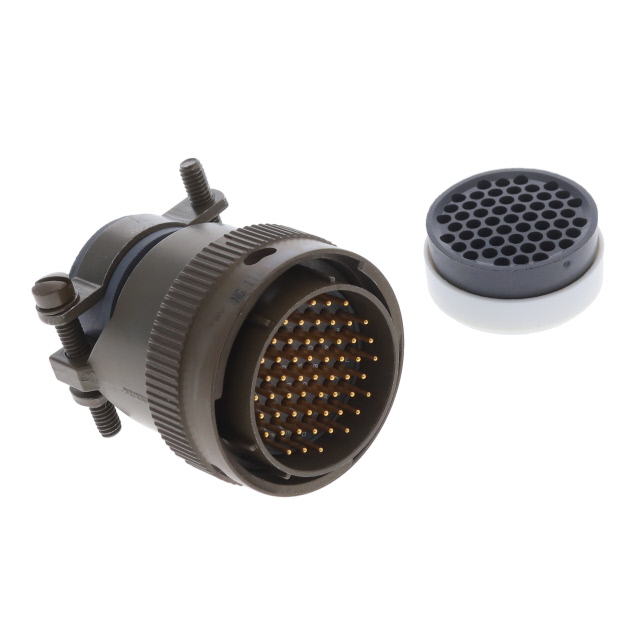

MS3116F22-55P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 55 CONTACTS, SOLDER PIN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Technical Data Sheet EN

MS3116F22-55P

Active

ITT Cannon, LLC

CIRCULAR CONNECTOR, MIL-DTL-26482 SERIES I, MS3116 SERIES, STRAIGHT PLUG, 55 CONTACTS, SOLDER PIN

Deep-Dive with AI

DocumentsDatasheet Technical Data Sheet EN

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MS3116F22-55P

Color	Olive Drab
Connector Type	Plug, Male Pins
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	1.27 µm
Contact Finish Thickness - Mating	50 µin
Current Rating (Amps)	7.5 A
Fastening Type	Bayonet Lock
Features	Strain Relief
Ingress Protection	Environment Resistant
Mounting Type	Free Hanging (In-Line)
Number of Positions	55 positions
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Orientation	N
Primary Material	Metal
Shell Finish	Olive Drab Cadmium
Shell Material	Aluminum Alloy
Shell Size - Insert [Max]	55
Shell Size - Insert [Min]	22
Voltage Rating	600 VAC, 850 V

MS3116F22 Series

Part	Color	Orientation	Shell Size - Insert [Max]	Shell Size - Insert [Min]	Contact Finish - Mating	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Primary Material	Current Rating (Amps)	Voltage Rating	Number of Positions	Connector Type	Fastening Type	Ingress Protection	Shell Material	Shell Finish	Features
ITT Cannon, LLC MS3116F22-41S	Olive Drab	N	41	22	Gold	Free Hanging (In-Line)	1.27 µm	50 µin	-55 °C	125 °C	Metal	7.5 A 13 A	600 VAC 850 V	41	Female Sockets Plug	Bayonet Lock	Environment Resistant	Aluminum Alloy	Olive Drab Cadmium	Strain Relief
ITT Cannon, LLC MS3116F22-55P	Olive Drab	N	55	22	Gold	Free Hanging (In-Line)	1.27 µm	50 µin	-55 °C	125 °C	Metal	7.5 A	600 VAC 850 V	55 positions	Male Pins Plug	Bayonet Lock	Environment Resistant	Aluminum Alloy	Olive Drab Cadmium	Strain Relief
ITT Cannon, LLC MS3116F22-55PY	Olive Drab	Y	55	22	Gold	Free Hanging (In-Line)	1.27 µm	50 µin	-55 °C	125 °C	Metal	7.5 A	600 VAC 850 V	55 positions	Male Pins Plug	Bayonet Lock	Environment Resistant	Aluminum Alloy	Olive Drab Cadmium	Strain Relief

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 134.12
		10	$ 114.01
		25	$ 106.88
		50	$ 101.79
Newark	Each	25	$ 119.55

Description

General part information

MS3116F22 Series

The MS3116F22-55P from ITT Cannon is MIL-DTL-26482 series I straight plug with 55 contacts. MIL-DTL-26482 series I connectors are available in various shell styles and shell plating with 48hr, 500hr salt spray exposure. The unmated connectors and protective covers meet 48hrs exposure to MIL-STD-1344 method 1001 per MIL-DTL-26482. It has a well-proven electrical capability and is designed to withstand extreme shock, exposure and vibration.
