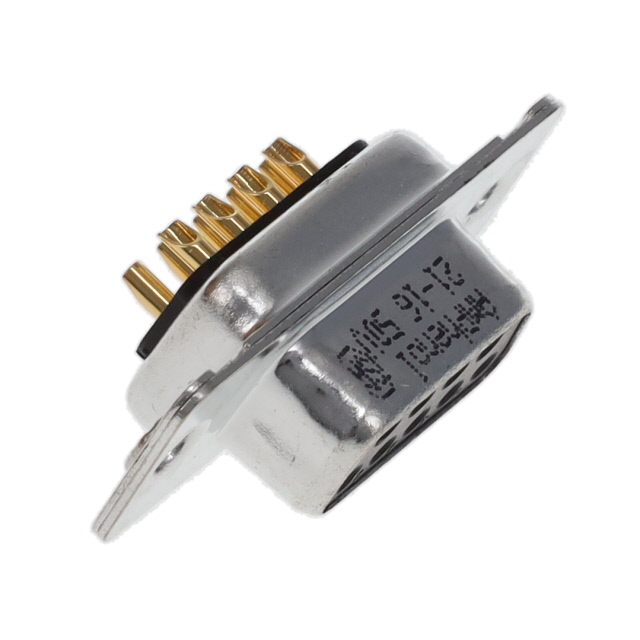

L177DFE09S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS PNL MNT

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

L177DFE09S

Active

Amphenol ICC (Commercial Products)

CONN D-SUB RCPT 9POS PNL MNT

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	L177DFE09S

Color	Black
Connector Style	D-Sub
Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	0.76 Ám
Contact Finish Thickness	30 Áin
Contact Material	Copper Alloy
Contact Type	Signal
Current Rating (Amps)	7.5 A
Dielectric Material	Thermoplastic, Glass Filled
Flange Feature	Housing/Shell (Unthreaded)
Material Flammability Rating	UL94 V-0
Number of Positions	9
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shell Size, Connector Layout [custom]	DE, E
Shell Size, Connector Layout [custom]	1
Voltage Rating	300 VDC

L177DFE09 Series

Part	Current Rating (Amps)	Number of Positions	Contact Finish	Mounting Type	Dielectric Material	Contact Material	Termination	Connector Type	Contact Type	Number of Rows	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout [custom]	Color	Flange Feature	Contact Finish Thickness	Contact Finish Thickness	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Material Flammability Rating	Backset Spacing	Backset Spacing	Features
Amphenol ICC (Commercial Products) L177DFE09SF179A	7.5 A	9	Gold	Panel Mount Through Hole	Thermoplastic Glass Filled	Copper Alloy	Wire Wrap	Receptacle Female Sockets	Signal	2	DE E	1	Black	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	D-Sub	-55 °C	125 °C	300 VDC	UL94 V-0
Amphenol ICC (Commercial Products) L177DFE09SA	7.5 A	9	Gold	Panel Mount Right Angle Through Hole	Thermoplastic Glass Filled	Copper Alloy	Solder	Receptacle Female Sockets	Signal	2	DE E	1	Black	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	D-Sub	-55 °C	125 °C	300 VDC	UL94 V-0	0.319 in	8.1 mm	Mounting Brackets
Amphenol ICC (Commercial Products) L177DFE09S1APN	7.5 A	9	Gold	Panel Mount Right Angle Through Hole	Thermoplastic Glass Filled	Copper Alloy	Solder	Receptacle Female Sockets	Signal	2	DE E	1	Black	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	D-Sub	-55 °C	125 °C	300 VDC	UL94 V-0	0.406 in	10.3 mm	Mounting Brackets
Amphenol ICC (Commercial Products) L177DFE09SV	7.5 A	9	Gold	Panel Mount Through Hole	Thermoplastic Glass Filled	Copper Alloy	Solder	Receptacle Female Sockets	Signal	2	DE E	1	Black	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	D-Sub	-55 °C	125 °C	300 VDC	UL94 V-0
Amphenol ICC (Commercial Products) L177DFE09SAM4	7.5 A	9	Gold	Panel Mount Right Angle Through Hole	Thermoplastic Glass Filled	Copper Alloy	Solder	Receptacle Female Sockets	Signal	2	DE E	1	Black	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	D-Sub	-55 °C	125 °C	300 VDC	UL94 V-0	0.319 in	8.1 mm	Mounting Brackets
Amphenol ICC (Commercial Products) L177DFE09S	7.5 A	9	Gold		Thermoplastic Glass Filled	Copper Alloy		Receptacle Female Sockets	Signal	2	DE E	1	Black	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	D-Sub	-55 °C	125 °C	300 VDC	UL94 V-0
Amphenol ICC (Commercial Products) L177DFE09SF179	7.5 A	9	Gold	Panel Mount Through Hole	Thermoplastic Glass Filled	Copper Alloy	Wire Wrap	Receptacle Female Sockets	Signal	2	DE E	1	Black	Housing/Shell (Unthreaded)	0.76 Ám	30 Áin	D-Sub	-55 °C	125 °C	300 VDC	UL94 V-0

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bag	1	$ 10.32
		10	$ 9.29
		25	$ 8.75
		50	$ 8.53
		100	$ 8.30
		250	$ 7.41
		500	$ 6.96
		1000	$ 6.15

Description

General part information

L177DFE09 Series

9 Position D-Sub Receptacle, Female Sockets Connector

Documents

Technical documentation and resources
