FD1L072RD
ActiveBelden Inc.
CBL FIBER OPTIC 125UM MULTIMODE
FD1L072RD
ActiveBelden Inc.
CBL FIBER OPTIC 125UM MULTIMODE
Description
General part information
FD1L072 Series

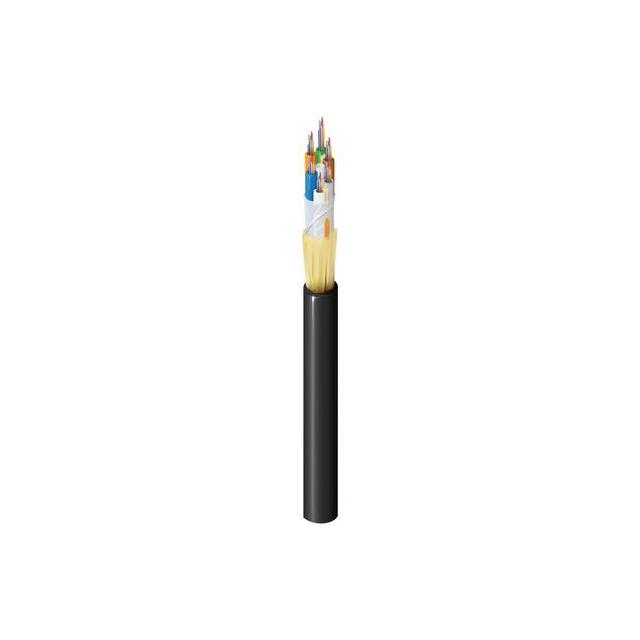

Fiber Optic Cable Black Multimode 125µm
Technical Specifications
Parameters and characteristics for this part
| Specification | FD1L072RD |
|---|---|
| Cladding Diameter | 125 µm |
| Core Diameter | 62.5 µm |
| Features | Rip Cord, 72 Fibers |
| Jacket (Insulation) Diameter | 0.43 in |
| Jacket (Insulation) Material | Poly-Vinyl Chloride (PVC) |
| Jacket Color | Black |
| Operating Temperature (Max) | 70 °C |
| Operating Temperature (Min) | -50 °C |
| Ratings | OFNR |
| Style | Multiple Fibers |
| Tensile Strength | 81.6 kg |
| Type | Multimode |
