387-082-560-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
387-082-560-808
ActiveEDAC Inc.
CONN EDGE DUAL FMALE 82POS 0.156
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 387-082-560-808 |
|---|---|
| Card Thickness [Max] | 1.78 mm |
| Card Thickness [Max] | 0.07 in |
| Card Thickness [Min] | 1.37 mm |
| Card Thickness [Min] | 0.054 " |
| Card Type | Non Specified - Dual Edge |
| Color | Black |
| Contact Finish | Gold |
| Contact Finish Thickness | 10 Áin |
| Contact Finish Thickness | 0.25 Ám |
| Contact Material | Copper Alloy |
| Contact Type | Cantilever |
| Features | Card Extender |
| Flange Feature | Top Mount Opening, 4-40, Threaded Insert |
| Gender | Female |
| Material - Insulation | Polyester Thermoplastic |
| Mounting Type | Board Edge, Straddle Mount |
| Number of Positions | 82 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 0.156 in |
| Pitch [x] | 3.96 mm |
| Read Out | Dual |
| Termination | Solder |
| Termination Rows | 2 |
387-082 Series
...
| Part | Gender | Termination Rows | Number of Positions | Pitch [x] | Pitch [x] | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Number of Rows | Termination | Material - Insulation | Color | Contact Material | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Card Type | Contact Type | Mounting Type | Read Out | Flange Feature | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] | Features | Flange Feature | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
EDAC Inc. | Female | 2 | 82 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Polyester Thermoplastic | Black | Copper Alloy | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Cantilever | Through Hole | Dual | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | |||||
EDAC Inc. | Female | 2 | 82 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Polyester Thermoplastic | Black | Copper Alloy | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Cantilever | Through Hole | Dual | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | |||||
EDAC Inc. | Female | 2 | 82 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Wire Wrap | Polyester Thermoplastic | Black | Copper Alloy | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Cantilever | Through Hole | Dual | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | |||||
EDAC Inc. | Female | 2 | 82 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Polyester Thermoplastic | Black | Copper Alloy | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Cantilever | Through Hole | Dual | Floating Bobbin Top Mount Opening | -40 °C | 105 ░C | 2.95 mm | 0.116 in | |||
EDAC Inc. | Female | 2 | 82 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Polyester Thermoplastic | Black | Copper Alloy | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Cantilever | Through Hole | Dual | 4-40 Flush Mount Threaded Insert Top Opening | -40 °C | 105 ░C | |||||
EDAC Inc. | Female | 2 | 82 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder Eyelet(s) | Polyester Thermoplastic | Black | Copper Alloy | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Cantilever | Board Edge Straddle Mount | Dual | -40 °C | 105 ░C | Card Extender | 3.25 mm | 0.128 in | |||
EDAC Inc. | Female | 2 | 82 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Polyester Thermoplastic | Black | Copper Alloy | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Cantilever | Through Hole | Dual | -40 °C | 105 ░C | ||||||
EDAC Inc. | Female | 2 | 82 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Polyester Thermoplastic | Black | Copper Alloy | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Cantilever | Through Hole | Dual | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | |||||
EDAC Inc. | Female | 2 | 82 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Polyester Thermoplastic | Black | Copper Alloy | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Cantilever | Through Hole | Dual | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | |||||
EDAC Inc. | Female | 2 | 82 | 0.156 in | 3.96 mm | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | 2 | Solder | Polyester Thermoplastic | Black | Copper Alloy | Gold | 10 Áin | 0.25 Ám | Non Specified - Dual Edge | Cantilever | Board Edge Straddle Mount | Dual | 4-40 Threaded Insert Top Mount Opening | -40 °C | 105 ░C | Card Extender |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
387-082 Series

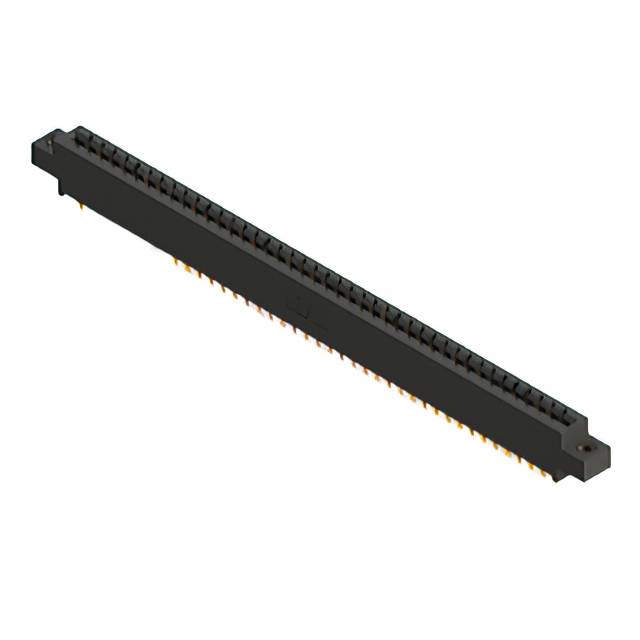

82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
