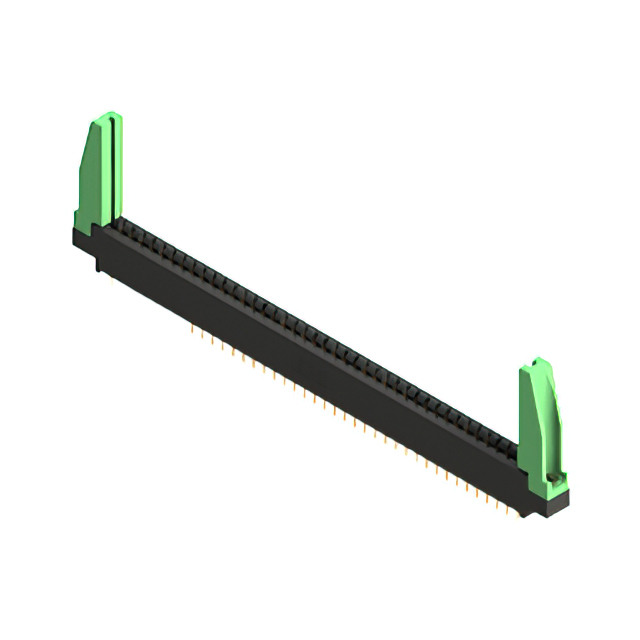

387-082-524-878

Active

EDAC Inc.

3.96MM STRAIGHT 82P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

387-082-524-878

Active

EDAC Inc.

3.96MM STRAIGHT 82P -40℃~+105℃ PLUGIN,P=3.96MM EDGEBOARD CONNECTORS ROHS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	387-082-524-878

Card Thickness [Max]	1.78 mm
Card Thickness [Max]	0.07 in
Card Thickness [Min]	1.37 mm
Card Thickness [Min]	0.054 "
Card Type	Non Specified - Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Áin
Contact Finish Thickness	0.25 Ám
Contact Material	Copper Alloy
Contact Type	Cantilever
Flange Feature	Top Mount Opening, 4-40, Threaded Insert
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole
Number of Positions	82
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch [x]	0.156 in
Pitch [x]	3.96 mm
Read Out	Dual
Termination	Solder
Termination Rows	2

387-082 Series

...

Part	Gender	Termination Rows	Number of Positions	Pitch [x]	Pitch [x]	Card Thickness [Min]	Card Thickness [Min]	Card Thickness [Max]	Card Thickness [Max]	Number of Rows	Termination	Material - Insulation	Color	Contact Material	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Card Type	Contact Type	Mounting Type	Read Out	Flange Feature	Operating Temperature [Min]	Operating Temperature [Max]	Flange Feature [diameter]	Flange Feature [diameter]	Features	Flange Feature	Flange Feature
EDAC Inc. 387-082-521-868	Female	2	82	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Solder	Polyester Thermoplastic	Black	Copper Alloy	Gold	10 Áin	0.25 Ám	Non Specified - Dual Edge	Cantilever	Through Hole	Dual	4-40 Threaded Insert Top Mount Opening	-40 °C	105 ░C
EDAC Inc. 387-082-521-858	Female	2	82	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Solder	Polyester Thermoplastic	Black	Copper Alloy	Gold	10 Áin	0.25 Ám	Non Specified - Dual Edge	Cantilever	Through Hole	Dual	4-40 Threaded Insert Top Mount Opening	-40 °C	105 ░C
EDAC Inc. 387-082-542-878	Female	2	82	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Wire Wrap	Polyester Thermoplastic	Black	Copper Alloy	Gold	10 Áin	0.25 Ám	Non Specified - Dual Edge	Cantilever	Through Hole	Dual	4-40 Threaded Insert Top Mount Opening	-40 °C	105 ░C
EDAC Inc. 387-082-524-803	Female	2	82	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Solder	Polyester Thermoplastic	Black	Copper Alloy	Gold	10 Áin	0.25 Ám	Non Specified - Dual Edge	Cantilever	Through Hole	Dual	Floating Bobbin Top Mount Opening	-40 °C	105 ░C	2.95 mm	0.116 in
EDAC Inc. 387-082-520-208	Female	2	82	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Solder	Polyester Thermoplastic	Black	Copper Alloy	Gold	10 Áin	0.25 Ám	Non Specified - Dual Edge	Cantilever	Through Hole	Dual	4-40 Flush Mount Threaded Insert Top Opening	-40 °C	105 ░C
EDAC Inc. 387-082-555-802	Female	2	82	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Solder Eyelet(s)	Polyester Thermoplastic	Black	Copper Alloy	Gold	10 Áin	0.25 Ám	Non Specified - Dual Edge	Cantilever	Board Edge Straddle Mount	Dual		-40 °C	105 ░C			Card Extender	3.25 mm	0.128 in
EDAC Inc. 387-082-523-201	Female	2	82	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Solder	Polyester Thermoplastic	Black	Copper Alloy	Gold	10 Áin	0.25 Ám	Non Specified - Dual Edge	Cantilever	Through Hole	Dual		-40 °C	105 ░C
EDAC Inc. 387-082-524-878	Female	2	82	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Solder	Polyester Thermoplastic	Black	Copper Alloy	Gold	10 Áin	0.25 Ám	Non Specified - Dual Edge	Cantilever	Through Hole	Dual	4-40 Threaded Insert Top Mount Opening	-40 °C	105 ░C
EDAC Inc. 387-082-523-808	Female	2	82	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Solder	Polyester Thermoplastic	Black	Copper Alloy	Gold	10 Áin	0.25 Ám	Non Specified - Dual Edge	Cantilever	Through Hole	Dual	4-40 Threaded Insert Top Mount Opening	-40 °C	105 ░C
EDAC Inc. 387-082-560-808	Female	2	82	0.156 in	3.96 mm	1.37 mm	0.054 "	1.78 mm	0.07 in	2	Solder	Polyester Thermoplastic	Black	Copper Alloy	Gold	10 Áin	0.25 Ám	Non Specified - Dual Edge	Cantilever	Board Edge Straddle Mount	Dual	4-40 Threaded Insert Top Mount Opening	-40 °C	105 ░C			Card Extender

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	25	$ 26.05
LCSC	Piece	1	$ 28.24
		200	$ 10.93
		500	$ 10.55
		1000	$ 10.36
Newark	Each	1	$ 29.31
		100	$ 14.20
		250	$ 12.06
		500	$ 9.87
		1000	$ 7.16

Description

General part information

387-082 Series

82 Position Female Connector Non Specified - Dual Edge Gold 0.156" (3.96mm) Black
