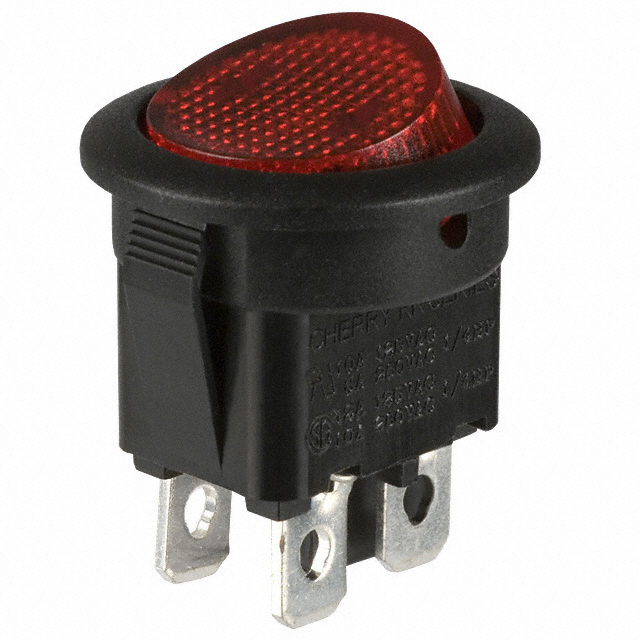

RRA32H3BBRLN

Active

ZF Electronics

SWITCH ROCKER DPST 10A 125V

Search across all available documentation for this part.

Active

ZF Electronics

SWITCH ROCKER DPST 10A 125V

Technical Specifications

Parameters and characteristics for this part

Specification	RRA32H3BBRLN

Actuator Marking	No Marking
Actuator Type	Round - Illuminated
Circuit	DPST
Color - Actuator/Cap	Red
Current Rating (Amps)	10 A
Electrical Life	6000 Cycles
Illumination Type, Color	Red, Neon
Illumination Voltage (Nominal)	125 VAC
Mechanical Life	100000 Cycles
Mounting Type	Panel Mount, Snap-In
Switch Function	On-Off
Termination Style	Quick Connect - 0.187" (4.7mm)
Voltage Rating - AC	125 V

SWITCH ROCKER DPST 10A 125V

Part	Switch Function	Illumination Type, Color	Current Rating (Amps)	Voltage Rating - AC	Termination Style	Illumination Voltage (Nominal)	Mounting Type	Actuator Type	Actuator Marking	Circuit	Electrical Life	Color - Actuator/Cap	Mechanical Life
ZF Electronics RRA32H3BBRLN	On-Off	Neon, Red	10 A	125 V	Quick Connect - 0.187" (4.7mm)	125 VAC	Panel Mount, Snap-In	Round - Illuminated	No Marking	DPST	6000 Cycles	Red	100000 Cycles

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1200	$ 1.77

General part information

Rocker Switch DPST 10A (AC) 125 V Panel Mount, Snap-In
