5168-0

Active

Pomona Electronics

BANANA TEST CONNECTOR, JACK, CABLE MOUNT, 15 A, 5 KV, NICKEL PLATED CONTACTS, BLACK

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

5168-0

Active

Pomona Electronics

BANANA TEST CONNECTOR, JACK, CABLE MOUNT, 15 A, 5 KV, NICKEL PLATED CONTACTS, BLACK

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	5168-0

Body Material	Polyvinyl Chloride (PVC)
Color	Black
Contact Finish	Nickel
Contact Material	Brass
Gender	Female
Insulation	Sheathed
Mounting Type	Free Hanging (In-Line)
Operating Temperature	50 °C
Plug/Mating Plug Diameter	Standard Banana
Termination	Crimp or Solder
Type	Banana Jack

5168 Series

Part	Operating Temperature	Contact Finish	Plug/Mating Plug Diameter	Mounting Type	Termination	Contact Material	Type	Body Material	Insulation	Color	Gender
Pomona Electronics 5168-0	50 °C	Nickel	Standard Banana	Free Hanging (In-Line)	Crimp or Solder	Brass	Banana Jack	Polyvinyl Chloride (PVC)	Sheathed	Black	Female
Pomona Electronics 5168-2	50 °C	Nickel	Standard Banana	Free Hanging (In-Line)	Crimp or Solder	Brass	Banana Jack	Polyvinyl Chloride (PVC)	Sheathed	Red	Female
Pomona Electronics 5168-0#	50 °C	Nickel	Standard Banana	Free Hanging (In-Line)	Crimp or Solder	Brass	Banana Jack	Polyvinyl Chloride (PVC)	Sheathed	Black	Female

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 3.69
		25	$ 3.56
Newark	Each	1	$ 4.19
		25	$ 4.03
		50	$ 3.73
		100	$ 3.65
		200	$ 3.48
		500	$ 3.36

Description

General part information

5168 Series

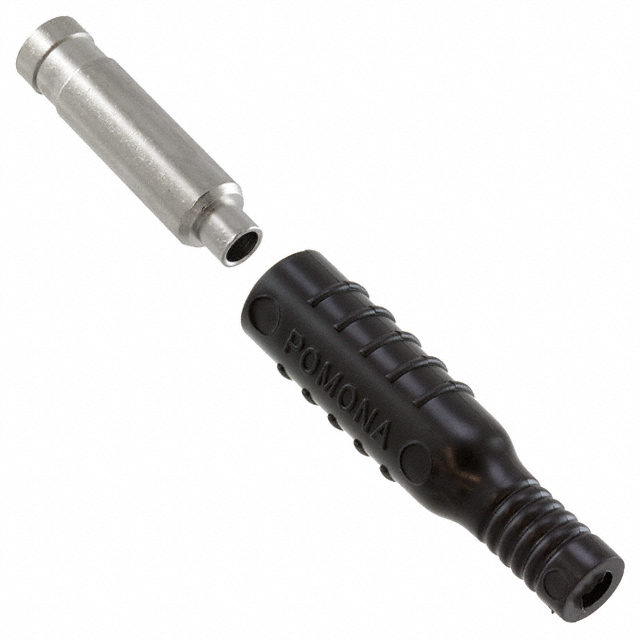

The 5168-0 is a black do-it-yourself in-line Banana Jack with flexible boot, cable mounting, crimp/solder contact termination, brass body, flexible PVC insulation and nickel-plated finish. This banana jack is ideal for making test cables and field repairs.
