281786-4

Active

TE Connectivity Raychem Cable Protection

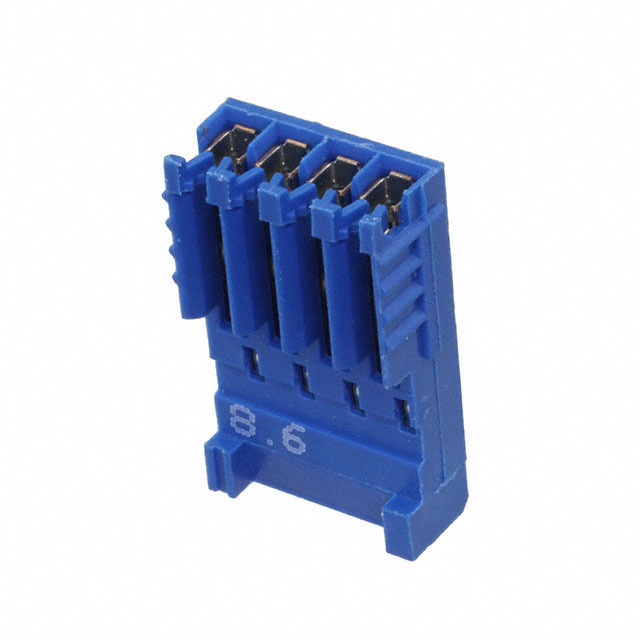

PLUG HE14 IDC 180 4 P AWG 28-26

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet MODULAR HEADERS AND PLUGS ACCORDING TO IEC 60603-8 SERIES (HE13 HE14 SERIES)+1

281786-4

Active

TE Connectivity Raychem Cable Protection

PLUG HE14 IDC 180 4 P AWG 28-26

Deep-Dive with AI

DocumentsDatasheet MODULAR HEADERS AND PLUGS ACCORDING TO IEC 60603-8 SERIES (HE13 HE14 SERIES)+1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	281786-4

Cable Termination	IDC
Color	Blue
Connector Type	Plug
Contact Finish	Tin
Contact Type	Female Socket
Fastening Type	Detent Lock
Mounting Type	Free Hanging (In-Line)
Number of Positions	4
Number of Rows	1
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Wire Type	Discrete

AMPMODU HE 13/HE 14 Series

Headers & Wire Housings PLUG HE13 IDC 180 3P AWG 26-24

Part	Termination	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Number of Positions Loaded	Insulation Color	Number of Rows	Shrouding	Contact Shape	Pitch - Mating	Pitch - Mating	Contact Material	Mounting Type	Fastening Type	Contact Type	Insulation Material	Style	Material Flammability Rating	Connector Type	Operating Temperature [Max]	Operating Temperature [Min]	Contact Finish - Post	Applications	Number of Positions	Color	Wire Type	Contact Finish	Pitch [x]	Pitch [x]	Cable Termination	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Overall Contact Length	Overall Contact Length	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness	Contact Finish Thickness	Wire Gauge	Contact Termination	Note
TE Connectivity Raychem Cable Protection 281698-5	Solder	0.114 in	2.9 mm	7 mm	0.276 in	All	Blue	1	Shrouded - 2 Wall	Square	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Friction Lock	Male Pin	Thermoplastic	Board to Cable/Wire	UL94 V-0	Header	100 °C	-40 °C	Tin	General Purpose
TE Connectivity Raychem Cable Protection 281786-2								1						Free Hanging (In-Line)	Detent Lock	Female Socket				Plug					2	Blue	Discrete	Tin	2.54 mm	0.1 in	IDC
TE Connectivity Raychem Cable Protection 281740-6	Solder	0.114 in	2.9 mm	7 mm	0.276 in	All	Blue	2	Shrouded - 2 Wall	Square	0.1 in	2.54 mm	Phosphor Bronze	Through Hole	Friction Lock	Male Pin	Thermoplastic	Board to Cable/Wire	UL94 V-0	Header	100 °C	-40 °C	Tin	General Purpose	12							Gold	2.5 µm	98.4 µin	12.5 mm	0.492 in	16 Áin	0.41 Ám	2.54 mm	0.1 in	0.449 in	11.4 mm
TE Connectivity Raychem Cable Protection 281699-2	Solder	0.114 in	2.9 mm	7 mm	0.276 in	All	Blue	1	Shrouded - 2 Wall	Square	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Friction Lock	Male Pin	Thermoplastic	Board to Cable/Wire	UL94 V-0	Header	100 °C	-40 °C	Tin	General Purpose	2							Gold	2.5 µm	98.4 µin			16 Áin	0.41 Ám
TE Connectivity Raychem Cable Protection 281786-8								1						Free Hanging (In-Line)	Detent Lock	Female Socket				Plug					8	Blue	Discrete	Tin	2.54 mm	0.1 in	IDC
TE Connectivity Raychem Cable Protection 1-281743-0	Solder	0.114 in	2.9 mm	7 mm	0.276 in	All	Blue	2	Shrouded - 2 Wall	Square	0.1 in	2.54 mm	Phosphor Bronze	Through Hole Right Angle	Friction Lock	Male Pin	Thermoplastic	Board to Cable/Wire	UL94 V-0	Header	100 °C	-40 °C	Tin	General Purpose	20							Gold	2.5 µm	98.4 µin			16 Áin	0.41 Ám	2.54 mm	0.1 in	0.3 in	7.62 mm
TE Connectivity Raychem Cable Protection 281709-4								1						Free Hanging (In-Line) Right Angle		Female Socket				Plug					4		Discrete	Gold	2.54 mm	0.1 in	IDC												16 µin	0.41 µm	24 AWG
TE Connectivity Raychem Cable Protection 1-281696-0	Solder	0.114 in	2.9 mm	7 mm	0.276 in	All	Blue	1	Shrouded - 2 Wall	Square	0.1 in	2.54 mm	Phosphor Bronze	Through Hole	Friction Lock	Male Pin	Thermoplastic	Board to Cable/Wire	UL94 V-0	Header	100 °C	-40 °C	Tin	General Purpose	10							Gold	2.5 µm	98.4 µin	12.5 mm	0.492 in	16 Áin	0.41 Ám			0.449 in	11.4 mm
TE Connectivity Raychem Cable Protection 1-281838-5								1						Free Hanging (In-Line)		Female Socket	Polybutylene Terephthalate (PBT) Glass Filled			Receptacle	125 °C	-55 °C			15	Blue			2.54 mm	0.1 in																Crimp	Contacts Not Included
TE Connectivity Raychem Cable Protection 281786-4								1						Free Hanging (In-Line)	Detent Lock	Female Socket				Plug					4	Blue	Discrete	Tin	2.54 mm	0.1 in	IDC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.98
		10	$ 1.81
		25	$ 1.75
		50	$ 1.74
		100	$ 1.61
		250	$ 1.59
		500	$ 1.44
		1000	$ 1.29
		2500	$ 1.19

Description

General part information

AMPMODU HE 13/HE 14 Series

Headers & Wire Housings PLUG HE13 IDC 180 3P AWG 26-24
