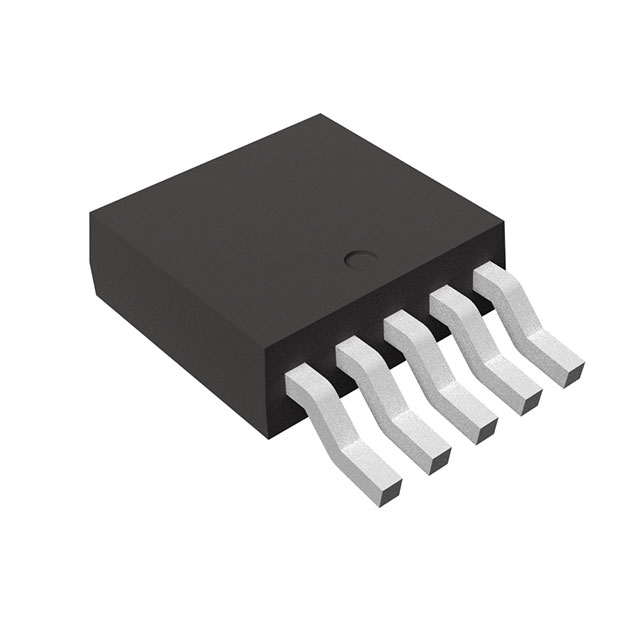

R1190J050B-T1-FE

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 5V 1A TO252-5-P2

Search across all available documentation for this part.

Active

Nisshinbo Micro Devices Inc

IC REG LINEAR 5V 1A TO252-5-P2

Technical Specifications

Parameters and characteristics for this part

Specification	R1190J050B-T1-FE

Control Features	Enable
Current - Output	1 A
Current - Quiescent (Iq)	220 µA
Mounting Type	Surface Mount
Number of Regulators	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Configuration	Positive
Output Type	1.81 mOhm
Package / Case	TO-252-6, DPAK (5 Leads + Tab)
Protection Features	Over Temperature, Over Current, Short Circuit
PSRR	60 dB
Supplier Device Package	TO-252-5-P2
Voltage - Input (Max) [Max]	16 V
Voltage - Output (Min/Fixed)	5 V
Voltage Dropout (Max) [Max]	1.85 V

Part	Control Features	Output Type	Protection Features	Current - Quiescent (Iq)	Voltage Dropout (Max) [Max]	Current - Output	Voltage - Input (Max) [Max]	PSRR	Mounting Type	Package / Case	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Output Configuration	Voltage - Output (Min/Fixed)
Nisshinbo Micro Devices Inc R1190H031B-T1-FE	Enable	1.81 mOhm	Over Current Over Temperature Short Circuit	220 µA	2.15 V	1 A	16 V	60 dB	Surface Mount	SOT-89-5/6	SOT-89-5	85 °C	-40 °C	1	Positive	3.1 V
Nisshinbo Micro Devices Inc R1190J050B-T1-FE	Enable	1.81 mOhm	Over Current Over Temperature Short Circuit	220 µA	1.85 V	1 A	16 V	60 dB	Surface Mount	TO-252-6 DPAK (5 Leads + Tab)	TO-252-5-P2	85 °C	-40 °C	1	Positive	5 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Linear Voltage Regulator IC Positive Fixed 1 Output 1A TO-252-5-P2
