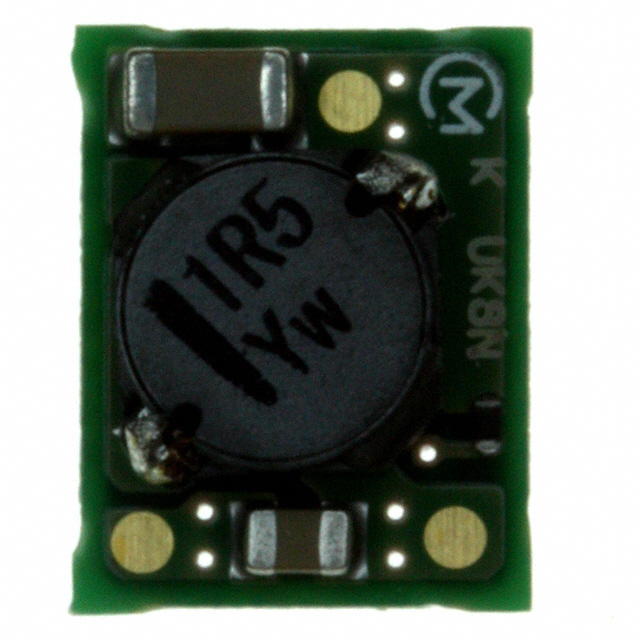

MPDTY201S

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.8-2.5V 7W

Search across all available documentation for this part.

Active

Murata Power Solutions Inc.

DC DC CONVERTER 0.8-2.5V 7W

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	MPDTY201S	MPDTY Series

Applications	ITE (Commercial)	ITE (Commercial)
Control Features	Active High, Enable	Active High, Enable, Active Low
Current - Output (Max) [Max]	3 A	2 - 8 A
Efficiency	87 %	87 - 93 %
Features	UVLO, Remote On/Off, SCP	UVLO, Remote On/Off, SCP, OTP
Mounting Type	Surface Mount	Surface Mount
Number of Outputs	1	1
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Package / Case	8-SMD Module	8-SMD Module, 22-SMD Module, 12-SMD Module
Power (Watts)	7 W	7 - 44 W
Size / Dimension [x]	0.43 "	0.43 - 1.33 "
Size / Dimension [x]	11 mm	11 - 33.8 mm
Size / Dimension [y]	8.5 mm	8.5 - 18.7 mm
Size / Dimension [y]	0.33 in	0.33 - 0.74 in
Size / Dimension [z]	5.6 mm	4.2 - 6 mm
Size / Dimension [z]	0.22 in	0.17 - 0.24 in
Type	Non-Isolated PoL Module	Non-Isolated PoL Module
Voltage - Input (Max) [Max]	5.5 V	5.5 - 14 V
Voltage - Input (Min) [Min]	3 V	2.97 - 6.5 V
Voltage - Output 1	-	1.2 V
Voltage - Output 1 [Max]	2.5 V	2.5 - 5.5 V
Voltage - Output 1 [Min]	0.8 V	0.8 V

DC DC CONVERTER 0.8-2.5V 7W

Part	Type	Voltage - Input (Max) [Max]	Features	Voltage - Input (Min) [Min]	Number of Outputs	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Power (Watts)	Current - Output (Max) [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Control Features	Package / Case	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Applications	Efficiency	Voltage - Output 1
Murata Power Solutions Inc. MPDTY201S	Non-Isolated PoL Module	5.5 V	Remote On/Off, SCP, UVLO	3 V	1	2.5 V	0.8 V	7 W	3 A	Surface Mount	85 °C	-40 °C	Active High, Enable	8-SMD Module	5.6 mm	0.43 "	8.5 mm	0.33 in	0.22 in	11 mm	ITE (Commercial)	87 %
Murata Power Solutions Inc. MPDTY303S	Non-Isolated PoL Module	14 V	OTP, Remote On/Off, SCP, UVLO	6.5 V	1	5.5 V	0.8 V	44 W	8 A	Surface Mount	85 °C	-40 °C	Active Low, Enable	22-SMD Module	4.2 mm	1.09 "	15.4 mm	0.61 in	0.17 in	27.8 mm	ITE (Commercial)	92 %
Murata Power Solutions Inc. MPDTY102S	Non-Isolated PoL Module	5.5 V	Remote On/Off, SCP	2.97 V	1	5 V	0.8 V	10 W	2 A	Surface Mount	85 °C	-40 °C	Active Low, Enable	12-SMD Module	4.2 mm	0.65 in	18.7 mm	0.74 in	0.17 in	16.4 mm	ITE (Commercial)	93 %
Murata Power Solutions Inc. MPDTY122S	Non-Isolated PoL Module	5.5 V	Remote On/Off, SCP	4.5 V	1			7 W	6 A	Surface Mount	85 °C	-40 °C	Active Low, Enable	12-SMD Module	6 mm	1.33 "	15.4 mm	0.61 in	0.24 "	33.8 mm	ITE (Commercial)	93 %	1.2 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Non-Isolated PoL Module DC DC Converter 1 Output 0.8 ~ 2.5V 3A 3V - 5.5V Input
