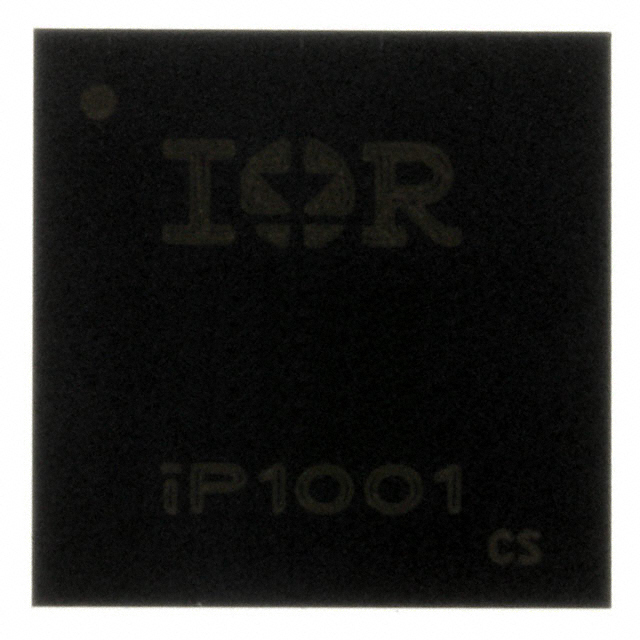

IP1001TR
ObsoleteInfineon Technologies
IC REG BUCK ADJ 20A 218BGA
Deep-Dive with AI
Search across all available documentation for this part.
IP1001TR
ObsoleteInfineon Technologies
IC REG BUCK ADJ 20A 218BGA
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IP1001TR |
|---|---|
| Current - Output | 20 A |
| Frequency - Switching | 200 kHz, 300 kHz |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | Adjustable |
| Package / Case | 218-BFBGA Power Module |
| Supplier Device Package | 218-BGA Power Block |
| Supplier Device Package [x] | 14 |
| Supplier Device Package [y] | 14 |
| Synchronous Rectifier | True |
| Topology | Buck |
| Voltage - Input (Max) [Max] | 12 V |
| Voltage - Output (Max) [Max] | 2 V |
| Voltage - Output (Min/Fixed) | 0.925 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
IP1001 Series
Buck Switching Regulator IC Positive Adjustable 0.925V 1 Output 20A 218-BFBGA Power Module
