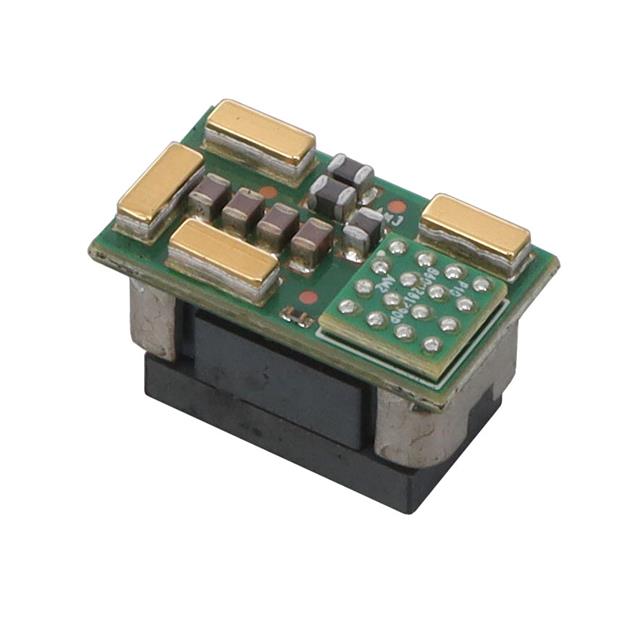

UJT060A0X43-SRPZ

Unknown

OmniOn Power™

60A DC/DC CONVERT 0.5-2.1V

Search across all available documentation for this part.

Unknown

OmniOn Power™

60A DC/DC CONVERT 0.5-2.1V

Technical Specifications

Parameters and characteristics for this part

Specification	UJT060A0X43-SRPZ

Applications	ITE (Commercial)
Control Features	Active High, Enable
Current - Output (Max) [Max]	60 A
Efficiency	91.2 %
Features	Remote Sense, Adjustable Output, PMBus™, Remote On/Off
Mounting Type	Surface Mount
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	Module
Size / Dimension [x]	0.8 "
Size / Dimension [x]	20.3 mm
Size / Dimension [y]	11.4 mm
Size / Dimension [y]	0.45 in
Size / Dimension [z]	12.9 mm
Size / Dimension [z]	0.51 in
Type	Non-Isolated PoL Module, Digital
Voltage - Input (Max) [Max]	14.4 V
Voltage - Input (Min) [Min]	7.5 V
Voltage - Output 1 [Max]	2 V
Voltage - Output 1 [Min]	0.5 V

60A DC/DC CONVERT 0.5-2.1V

Part	Applications	Voltage - Input (Max) [Max]	Mounting Type	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max) [Max]	Number of Outputs	Control Features	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Min) [Min]	Features	Package / Case	Type	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Efficiency
OmniOn Power™ UJT060A0X43-SRPZ	ITE (Commercial)	14.4 V	Surface Mount	12.9 mm	0.51 in	11.4 mm	0.8 "	20.3 mm	0.45 in	60 A	1	Active High, Enable	85 °C	-40 °C	7.5 V	Adjustable Output, PMBus™, Remote On/Off, Remote Sense	Module	Non-Isolated PoL Module, Digital	2 V	0.5 V	91.2 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Non-Isolated PoL Module, Digital DC DC Converter 1 Output 0.5 ~ 2V 60A 7.5V - 14.4V Input
