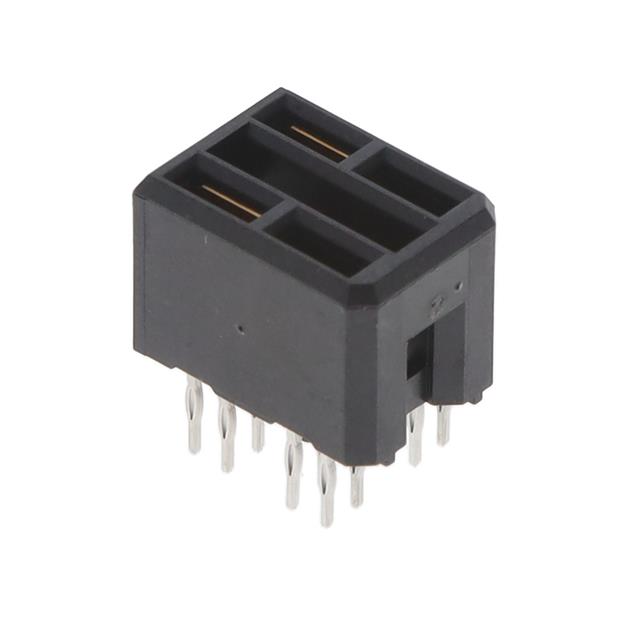

10124646-4455P00LF

Active

Amphenol ICC (FCI)

CONN RCPT BLADE PWR 4POS PCB

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT BLADE PWR 4POS PCB

Technical Specifications

Parameters and characteristics for this part

Specification	10124646-4455P00LF

Color	Black
Connector Style	Blade Power
Connector Type	Receptacle, Female Blade Sockets
Contact Layout, Typical	4 Power
Features	Board Guide
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	4
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-65 ░C
Pitch [x]	0.079 in
Pitch [x]	2 mm
Termination	Press-Fit

Part	Operating Temperature [Min]	Operating Temperature [Max]	Connector Type	Pitch [x]	Pitch [x]	Termination	Features	Mounting Type	Color	Number of Positions Loaded	Contact Layout, Typical	Number of Rows	Material Flammability Rating	Connector Style	Number of Positions
Amphenol ICC (FCI) 10124646-4444P00LF	-65 ░C	105 ░C	Receptacle Female Blade Sockets	0.079 in	2 mm	Press-Fit	Board Guide	Through Hole	Black	All	4 Power	2	UL94 V-0	Blade Power	4
Amphenol ICC (FCI) 10124646-4554P00LF	-65 ░C	105 ░C	Receptacle Female Blade Sockets	0.079 in	2 mm	Press-Fit	Board Guide	Through Hole	Black	All	4 Power	2	UL94 V-0	Blade Power	4
Amphenol ICC (FCI) 10124646-4455P00LF	-65 ░C	105 ░C	Receptacle Female Blade Sockets	0.079 in	2 mm	Press-Fit	Board Guide	Through Hole	Black	All	4 Power	2	UL94 V-0	Blade Power	4

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 Connector Receptacle, Female Blade Sockets Through Hole Black Blade Power
