R164184000

Active

Radiall USA, Inc.

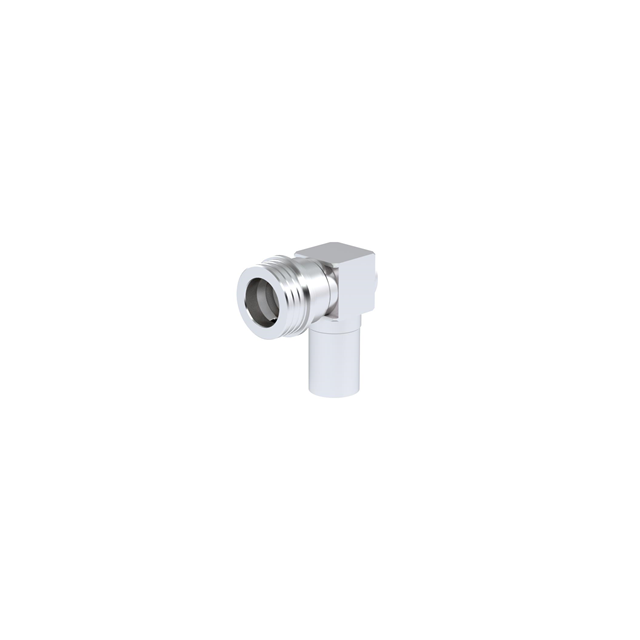

QN / RIGHT ANGLE PLUG CRIMP TYPE

Search across all available documentation for this part.

Active

Radiall USA, Inc.

QN / RIGHT ANGLE PLUG CRIMP TYPE

Technical Specifications

Parameters and characteristics for this part

Specification	R164184000

Body Finish	White Bronze
Body Material	Brass
Cable Group [custom]	213
Cable Group [custom]	RG-165
Center Contact Material	Brass
Center Contact Plating	Silver
Connector Style	QN
Connector Type	Male Pin, Plug
Contact Termination	Crimp
Dielectric Material	Polytetrafluoroethylene (PTFE)
Fastening Type	Snap-On
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Ingress Protection	IP68 - Dust Tight, Waterproof
Mounting Type	Free Hanging (In-Line), Right Angle
Number of Ports	1
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Crimp
Voltage Rating	1000 VDC

Part	Housing Color	Cable Group [custom]	Cable Group [custom]	Contact Termination	Connector Type	Body Finish	Mounting Type	Body Material	Impedance	Connector Style	Frequency - Max [Max]	Center Contact Plating	Center Contact Material	Fastening Type	Voltage Rating	Number of Ports	Ingress Protection	Operating Temperature [Min]	Operating Temperature [Max]	Dielectric Material	Shield Termination	Cable Group
Radiall USA, Inc. R164184000W	Silver	213	RG-165	Crimp	Male Pin Plug	White Bronze	Free Hanging (In-Line) Right Angle	Brass	50 Ohms	QN	6000 MHz	Silver	Brass	Snap-On	1000 VDC	1	IP68 - Dust Tight Waterproof	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Crimp
Radiall USA, Inc. R164184000	Silver	213	RG-165	Crimp	Male Pin Plug	White Bronze	Free Hanging (In-Line) Right Angle	Brass	50 Ohms	QN	6000 MHz	Silver	Brass	Snap-On	1000 VDC	1	IP68 - Dust Tight Waterproof	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Crimp
Radiall USA, Inc. R164185007	Silver			Crimp	Male Pin Plug	Silver	Free Hanging (In-Line) Right Angle	Brass	50 Ohms	QN	6000 MHz	Silver	Brass	Snap-On	1000 VDC	1	IP68 - Dust Tight Waterproof	-55 °C	125 °C	Polytetrafluoroethylene (PTFE)	Crimp	LMR-400

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 20.03

General part information

QN Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line), Right Angle Crimp
