109853-1
ActiveTE Connectivity Raychem Cable Protection

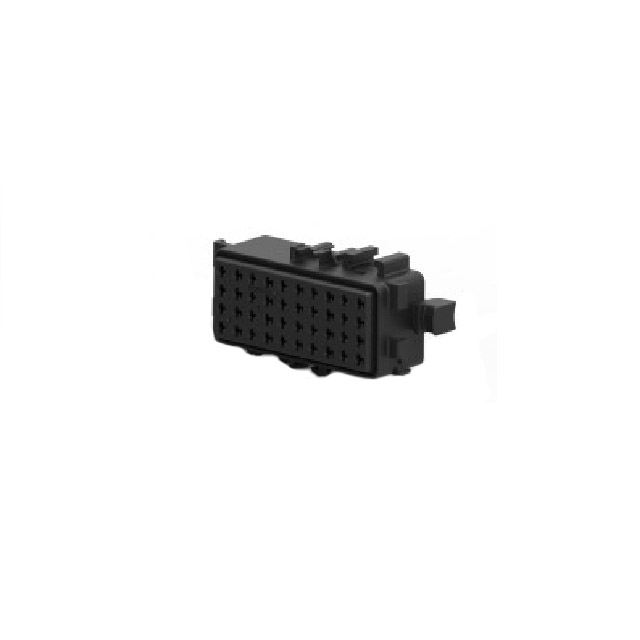

FUSE HOLDER BASE, 40 POSITION
Deep-Dive with AI
Search across all available documentation for this part.
109853-1
ActiveTE Connectivity Raychem Cable Protection
FUSE HOLDER BASE, 40 POSITION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 109853-1 |
|---|---|
| For Use With/Related Products | Miniature (ATM) |
| Fuse Size [x] | 0.433 " |
| Fuse Size [x] | 11 mm |
| Fuse Size [y] | 0.152 " |
| Fuse Size [y] | 3.85 mm |
| Fuse Type | Blade |
| Fuseholder Type | Block |
| Mounting Type | Chassis Mount |
| Number of Circuits | 20 |
| Orientation | Horizontal |
| Termination Style | Quick Connect |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.13 | |
| 5 | $ 5.82 | |||
| 10 | $ 5.39 | |||
Description
General part information
109853 Series
Fuse Holder, Mini ATM Fuse, 6 Relays (Maximum), 40 Position, 8.13 mm [.32 in] Centerline, Sealable, IPX4, Other Hard Wired Boxes
