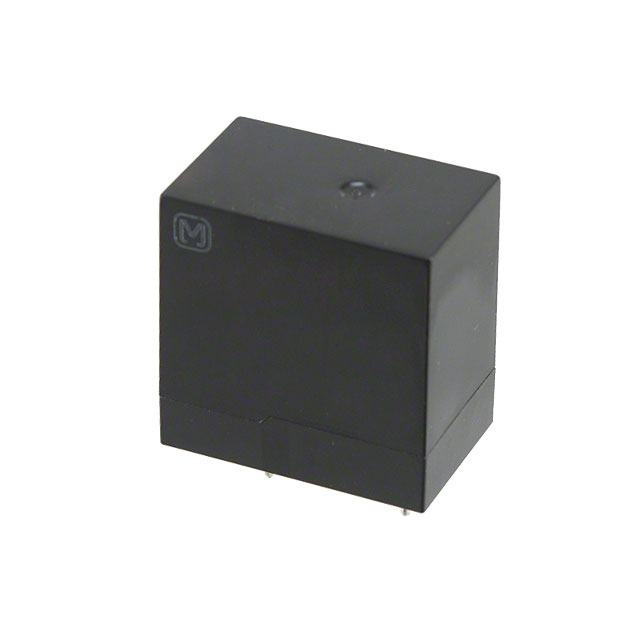

JC1AF-DC24V-F

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 15A 24V

Search across all available documentation for this part.

Obsolete

Panasonic Electric Works

RELAY GEN PURPOSE SPST 15A 24V

Technical Specifications

Parameters and characteristics for this part

Part	Coil Type	Contact Form	Operate Time	Termination Style	Coil Current	Coil Resistance	Approval Agency	Must Release Voltage	Must Operate Voltage	Relay Type	Switching Voltage	Contact Material	Contact Rating (Current)	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Load - Max Switching	Release Time	Coil Voltage
Panasonic Electric Works JC1AF-DC6V	Non Latching	SPST-NO (1 Form A)	15 ms	PC Pin	150 mA	40 Ohms	CSA TUV UR VDE	0.6 VDC	4.8 VDC	General Purpose	250 VAC	Silver Alloy	15 A	60 °C	-50 °C	Through Hole	3750 VA	2 ms
Panasonic Electric Works JC1AF-DC5V-F	Non Latching	SPST-NO (1 Form A)	30 ms	PC Pin	180 mA	27.8 Ohms	CSA TUV UR VDE	0.5 VDC	4 VDC	General Purpose	250 VAC	Silver Tin Oxide (AgSnO)	15 A	60 °C	-50 °C	Through Hole	3750 VA	10 ms	5 VDC
Panasonic Electric Works JC1AF-DC12V	Non Latching	SPST-NO (1 Form A)	15 ms	PC Pin	75 mA	160 Ohms	CSA TUV UR VDE	1.2 VDC	9.6 VDC	General Purpose	250 VAC	Silver Alloy	15 A	60 °C	-50 °C	Through Hole	3750 VA	2 ms	12 VDC
Panasonic Electric Works JC1AF-DC12V-F	Non Latching	SPST-NO (1 Form A)	30 ms	PC Pin	75 mA	160 Ohms	CSA TUV UR VDE	1.2 VDC	9.6 VDC	General Purpose	250 VAC	Silver Tin Oxide (AgSnO)	15 A	60 °C	-50 °C	Through Hole	3750 VA	10 ms	12 VDC
Panasonic Electric Works JC1AF-DC24V-F	Non Latching	SPST-NO (1 Form A)	30 ms	PC Pin	37.5 mA	640 Ohms	CSA TUV UR VDE	2.4 VDC	19.2 VDC	General Purpose	250 VAC	Silver Tin Oxide (AgSnO)	15 A	60 °C	-50 °C	Through Hole	3750 VA	10 ms	24 VDC
