TLE-105-01-G-DV

Active

Samtec Inc.

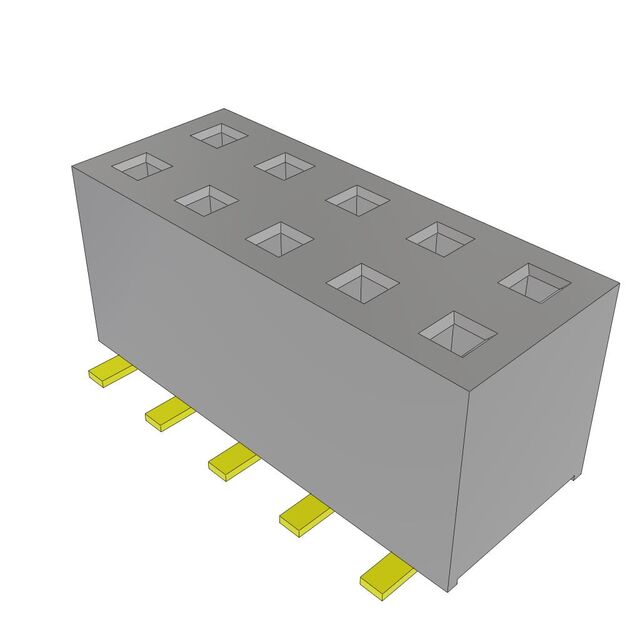

CONN RCPT 2MM 10POS DUAL SMD

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsTLE Datasheet TLE Series Datasheet +2

TLE-105-01-G-DV

Active

Samtec Inc.

CONN RCPT 2MM 10POS DUAL SMD

Deep-Dive with AI

DocumentsTLE Datasheet TLE Series Datasheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLE-105-01-G-DV

Connector Type	Receptacle, Pass Through
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	10 çin
Contact Finish Thickness - Mating	0.25 çm
Contact Material	Phosphor Bronze
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	3.2 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.177 in
Insulation Height	4.5 mm
Insulation Material	Liquid Crystal Polymer (LCP)
Mounting Type	Surface Mount
Number of Positions	10
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Style	Board to Board, Cable
Termination	Solder

TLE-105 Series

Part	Insulation Height	Insulation Height	Insulation Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Rows	Current Rating (Amps)	Insulation Color	Contact Material	Contact Shape	Connector Type	Number of Positions Loaded	Contact Type	Style	Pitch - Mating [x]	Pitch - Mating [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Contact Finish - Mating	Features	Fastening Type	Termination	Contact Finish - Post
Samtec Inc. TLE-105-01-G-DV-A-P-TR	0.177 in	4.5 mm	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	2	3.2 A	Black	Phosphor Bronze	Square	Pass Through Receptacle	All	Female Socket	Board to Board Cable	0.079 in	2 mm	-55 °C	125 °C	Surface Mount	0.079 in	2 mm	10	Gold	Board Guide Pick and Place	Push-Pull	Solder
Samtec Inc. TLE-105-01-G-DV-A-P	0.177 in	4.5 mm	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	2	3.2 A	Black	Phosphor Bronze	Square	Pass Through Receptacle	All	Female Socket	Board to Board Cable	0.079 in	2 mm	-55 °C	125 °C	Surface Mount	0.079 in	2 mm	10	Gold	Board Guide Pick and Place	Push-Pull	Solder	Gold
Samtec Inc. TLE-105-01-G-DV-K	0.177 in	4.5 mm	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	2	3.2 A	Black	Phosphor Bronze	Square	Pass Through Receptacle	All	Female Socket	Board to Board Cable	0.079 in	2 mm	-55 °C	125 °C	Surface Mount	0.079 in	2 mm	10	Gold	Pick and Place	Push-Pull	Solder	Gold
Samtec Inc. TLE-105-01-G-DV-P	0.177 in	4.5 mm	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	2	3.2 A	Black	Phosphor Bronze	Square	Pass Through Receptacle	All	Female Socket	Board to Board Cable	0.079 in	2 mm	-55 °C	125 °C	Surface Mount	0.079 in	2 mm	10	Gold	Pick and Place	Push-Pull	Solder	Gold
Samtec Inc. TLE-105-01-G-DV-A-TR	0.177 in	4.5 mm	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	2	3.2 A	Black	Phosphor Bronze	Square	Pass Through Receptacle	All	Female Socket	Board to Board Cable	0.079 in	2 mm	-55 °C	125 °C	Surface Mount	0.079 in	2 mm	10	Gold	Board Guide	Push-Pull	Solder	Gold
Samtec Inc. TLE-105-01-G-DV	0.177 in	4.5 mm	Liquid Crystal Polymer (LCP)	10 çin	0.25 çm	2	3.2 A	Black	Phosphor Bronze	Square	Pass Through Receptacle	All	Female Socket	Board to Board Cable	0.079 in	2 mm	-55 °C	125 °C	Surface Mount	0.079 in	2 mm	10	Gold		Push-Pull	Solder

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1	$ 2.71
		50	$ 2.21
		100	$ 1.88
		500	$ 1.67
		1000	$ 1.56

Description

General part information

TLE-105 Series

10 Position Receptacle, Pass Through Connector 0.079" (2.00mm) Surface Mount Gold

TLE-105-01-G-DV

Deep-Dive with AI

TLE-105-01-G-DV

Deep-Dive with AI

Technical Specifications

TLE-105 Series

Pricing

Description

TLE-105 Series

Documents

TLE Datasheet

TLE Series Datasheet

2.00 mm Tiger Beam™ Cost-effective Single Beam Socket Strip

Datasheet

TLE-105 Series
