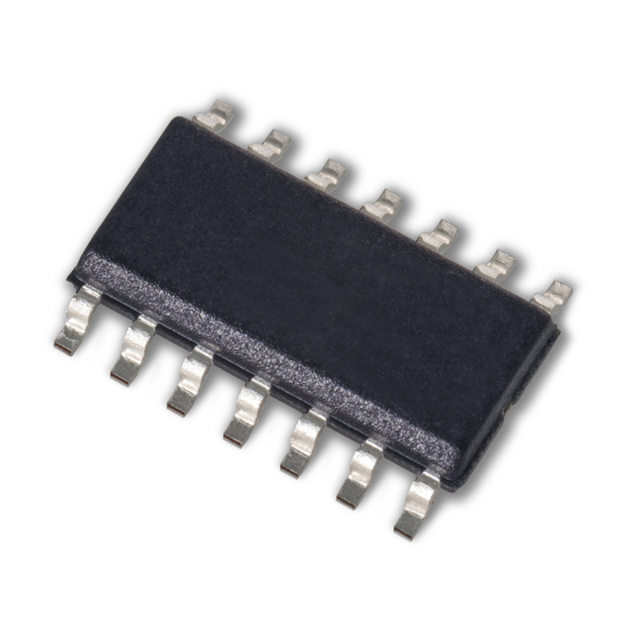

SD5401CY SOIC 14L ROHS

Active

Linear Integrated Systems, Inc.

MOSFET 4N-CH 10V 0.05A 14SOIC

Search across all available documentation for this part.

Active

Linear Integrated Systems, Inc.

MOSFET 4N-CH 10V 0.05A 14SOIC

Technical Specifications

Parameters and characteristics for this part

Specification	SD5401CY SOIC 14L ROHS

Configuration	4 N-Channel
Current - Continuous Drain (Id) @ 25°C	50 mA
Drain to Source Voltage (Vdss)	10 V
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-55 °C
Package / Case	14-SOIC
Package / Case [x]	0.154 in
Package / Case [y]	3.9 mm
Power - Max [Max]	500 mW
Rds On (Max) @ Id, Vgs	75 Ohm
Technology	MOSFET (Metal Oxide)
Vgs(th) (Max) @ Id	1.5 V

MOSFET 4N-CH 10V 0.05A 14SOIC

Part	Current - Continuous Drain (Id) @ 25°C	Operating Temperature [Min]	Operating Temperature [Max]	Power - Max [Max]	Configuration	Technology	Mounting Type	Drain to Source Voltage (Vdss)	Package / Case [x]	Package / Case [y]	Package / Case	Vgs(th) (Max) @ Id	Rds On (Max) @ Id, Vgs
Linear Integrated Systems, Inc. SD5401CY SOIC 14L ROHS	50 mA	-55 °C	150 °C	500 mW	4 N-Channel	MOSFET (Metal Oxide)	Surface Mount	10 V	0.154 in	3.9 mm	14-SOIC	1.5 V	75 Ohm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Mosfet Array 10V 50mA (Ta) 500mW (Ta) Surface Mount 14-SOIC
