242-1293-29-0602J
Active3M

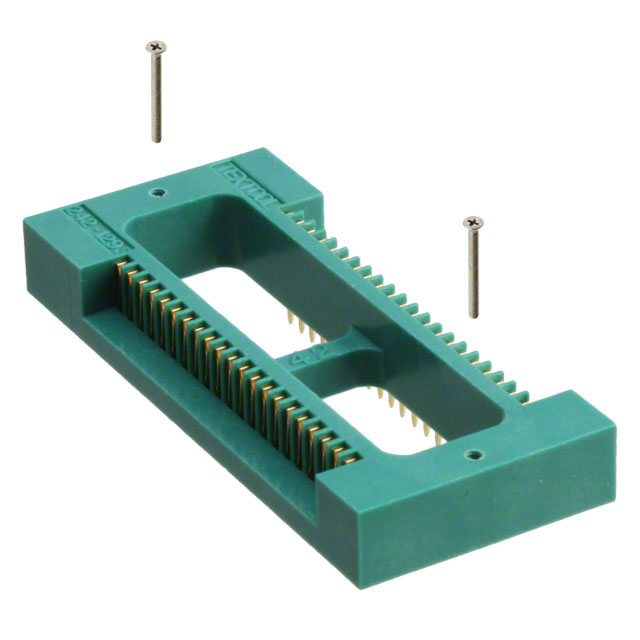

RECEPTACLE DIP SOCKET 42POS .6"
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
242-1293-29-0602J
Active3M
RECEPTACLE DIP SOCKET 42POS .6"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | 242-1293-29-0602J | 242 Series |
|---|---|---|
| Contact Finish - Mating | Gold | Gold |
| Contact Finish - Post | Gold | Gold |
| Contact Finish Thickness - Mating | 30 Áin | 30 Áin |
| Contact Finish Thickness - Mating | 0.76 Ám | 0.76 Ám |
| Contact Finish Thickness - Post | 30 µin | 30 µin |
| Contact Finish Thickness - Post | 0.76 µm | 0.76 µm |
| Contact Material - Mating | Beryllium Copper | Beryllium Copper |
| Contact Material - Post | Beryllium Copper | Beryllium Copper |
| Contact Resistance | - | 15 mOhm |
| Convert From (Adapter End) | 15.24 mm | 15.24 mm |
| Convert From (Adapter End) | DIP | DIP |
| Convert From (Adapter End) | 0.6 in | 0.6 in |
| Convert To (Adapter End) | 0.6 in | 0.6 in |
| Convert To (Adapter End) | DIP | DIP |
| Convert To (Adapter End) | 15.24 mm | 15.24 mm |
| Current Rating (Amps) | 1 A | 1 A |
| Features | Closed Frame | Closed Frame |
| Housing Material | Polysulfone (PSU), Glass Filled | Polysulfone (PSU), Glass Filled |
| Material Flammability Rating | UL94 V-0 | UL94 V-0 |
| Mounting Type | Through Hole | Through Hole, Connector |
| Number of Pins | 42 | 42 |
| Number of Positions or Pins (Grid) | - | 42 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | -55 °C | -55 °C |
| Pitch - Mating | 0.07 in | 0.07 - 0.1 in |
| Pitch - Mating | 1.78 mm | 1.78 - 2.54 mm |
| Pitch - Post | 0.07 in | 0.07 - 0.1 in |
| Pitch - Post | 1.78 mm | 1.78 - 2.54 mm |
| Termination | Solder | Solder, Press-Fit |
| Termination Post Length | 3.3 mm | 2.78 - 3.3 mm |
| Termination Post Length | 0.13 in | 0.11 - 0.13 in |
| Type | - | 15.24 mm |
| Type | - | DIP, ZIF (ZIP) |
| Type | - | 0.6 " |
242 Series
RECEPTACLE DIP SOCKET 42POS .6"
| Part | Pitch - Mating | Pitch - Mating | Contact Finish - Mating | Pitch - Post | Pitch - Post | Contact Material - Mating | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Material - Post | Termination Post Length | Termination Post Length | Mounting Type | Convert From (Adapter End) | Convert From (Adapter End) | Convert From (Adapter End) | Current Rating (Amps) | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Features | Number of Pins | Contact Finish - Post | Housing Material | Convert To (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Material Flammability Rating | Termination | Number of Positions or Pins (Grid) | Contact Resistance | Type | Type | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
0.07 in | 1.78 mm | Gold | 0.07 in | 1.78 mm | Beryllium Copper | -55 °C | 125 °C | 30 µin | 0.76 µm | Beryllium Copper | 3.3 mm | 0.13 in | Through Hole | 15.24 mm | DIP | 0.6 in | 1 A | 30 Áin | 0.76 Ám | Closed Frame | 42 | Gold | Polysulfone (PSU), Glass Filled | 0.6 in | DIP | 15.24 mm | UL94 V-0 | Solder | ||||||
0.1 in | 2.54 mm | Gold | 0.1 in | 2.54 mm | Beryllium Copper | -55 °C | 125 °C | 30 µin | 0.76 µm | Beryllium Copper | 2.78 mm | 0.11 in | Connector | 1 A | 30 Áin | 0.76 Ám | Closed Frame | Gold | Polysulfone (PSU), Glass Filled | UL94 V-0 | Press-Fit | 42 | 15 mOhm | 15.24 mm | DIP, ZIF (ZIP) | 0.6 " | ||||||||
0.07 in | 1.78 mm | Gold | 0.1 in | 2.54 mm | Beryllium Copper | -55 °C | 125 °C | 30 µin | 0.76 µm | Beryllium Copper | 2.78 mm | 0.11 in | Connector | 1 A | 30 Áin | 0.76 Ám | Closed Frame | Gold | Polysulfone (PSU), Glass Filled | UL94 V-0 | Press-Fit | 42 | 15 mOhm | 15.24 mm | DIP, ZIF (ZIP) | 0.6 " | ||||||||
0.1 in | 2.54 mm | Gold | 0.1 in | 2.54 mm | Beryllium Copper | -55 °C | 125 °C | 30 µin | 0.76 µm | Beryllium Copper | 3.3 mm | 0.13 in | Through Hole | 15.24 mm | DIP | 0.6 in | 1 A | 30 Áin | 0.76 Ám | Closed Frame | 42 | Gold | Polysulfone (PSU), Glass Filled | 0.6 in | DIP | 15.24 mm | UL94 V-0 | Solder |
