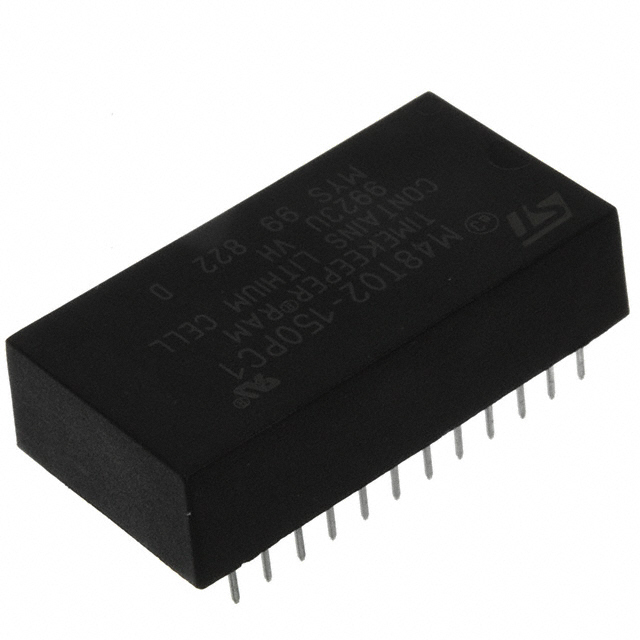

M48T02-70PC1
ActiveRTC IC, YY-MM-DD-DD, HH:MM:SS, 24HR, PARALLEL, 4.75 V TO 5.5 V, 24 PINS, PDIP
Deep-Dive with AI
Search across all available documentation for this part.
M48T02-70PC1
ActiveRTC IC, YY-MM-DD-DD, HH:MM:SS, 24HR, PARALLEL, 4.75 V TO 5.5 V, 24 PINS, PDIP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | M48T02-70PC1 |
|---|---|
| Current - Timekeeping (Max) | 3 mA |
| Features | Leap Year |
| Interface | Parallel |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | 0 °C |
| Package / Case | 0.6 in |
| Package / Case | 24-DIP Module |
| Package / Case | 15.24 mm |
| Supplier Device Package | 24-PCDIP, CAPHAT® |
| Time Format | HH:MM:SS (24 hr) |
| Type | Clock/Calendar |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 4.75 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
M48T02 Series
The M48T02/12 TIMEKEEPER®RAM is a 2 Kb x 8 non-volatile static RAM and real-time clock which is pin and functional compatible with the DS1642.
A special 24-pin, 600 mil DIP CAPHAT™package houses the M48T02/12 silicon with a quartz crystal and a long life lithium button cell to form a highly integrated battery-backed memory and real-time clock solution.
The M48T02/12 button cell has sufficient capacity and storage life to maintain data and clock functionality for an accumulated time period of at least 10 years in the absence of power over the operating temperature range.
