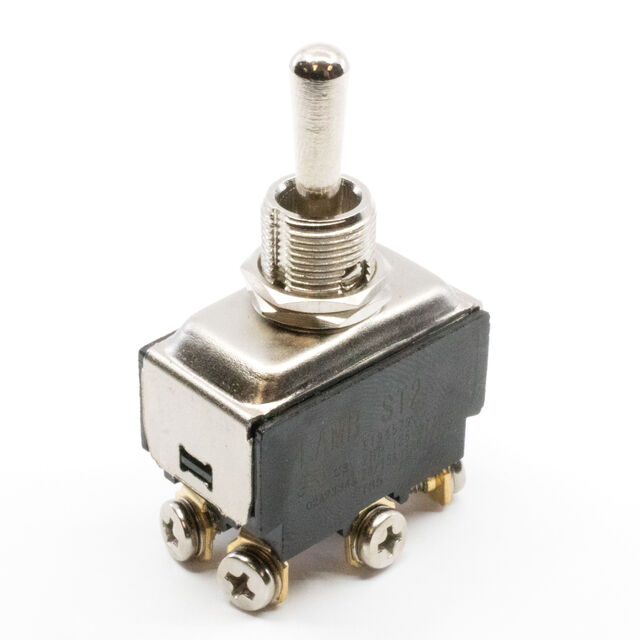

ST266D02

Active

E-Switch

SWITCH: TOGGLE; POS: 3; DP3T; ON-OFF-ON; 15A/277VAC; ST2; 0÷85°C

Search across all available documentation for this part.

Active

E-Switch

SWITCH: TOGGLE; POS: 3; DP3T; ON-OFF-ON; 15A/277VAC; ST2; 0÷85°C

Technical Specifications

Parameters and characteristics for this part

Specification	ST266D02

Actuator Length [x]	16.6 mm
Actuator Material	Brass, Nickel Plated
Actuator Type	Standard Round
Bushing Thread	15/32-32
Circuit	DPDT
Current Rating (Amps)	20 A
Electrical Life	6000 Cycles
Illumination	Non-Illuminated
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	0 °C
Panel Cutout Dimensions [diameter]	12 mm
Switch Function	On-Off-On
Termination Style	Screw Terminal
Voltage Rating - AC	125 V

Part	Current Rating (Amps)	Actuator Length [x]	Voltage Rating - AC	Switch Function	Termination Style	Actuator Type	Panel Cutout Dimensions [diameter]	Actuator Material	Illumination	Operating Temperature [Min]	Operating Temperature [Max]	Electrical Life	Bushing Thread	Bushing Thread	Circuit
E-Switch ST266D00	20 A	17.5 mm	125 V	On-Off-On	Screw Terminal	Standard Round	12 mm	Brass Nickel Plated	Non-Illuminated	0 °C	85 °C	6000 Cycles	M12	1 x 1	DPDT
E-Switch ST266D02	20 A	16.6 mm	125 V	On-Off-On	Screw Terminal	Standard Round	12 mm	Brass Nickel Plated	Non-Illuminated	0 °C	85 °C	6000 Cycles	15/32-32		DPDT

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1000	$ 5.88

General part information

Toggle Switch DPDT Panel Mount

Technical documentation and resources

No documents available
