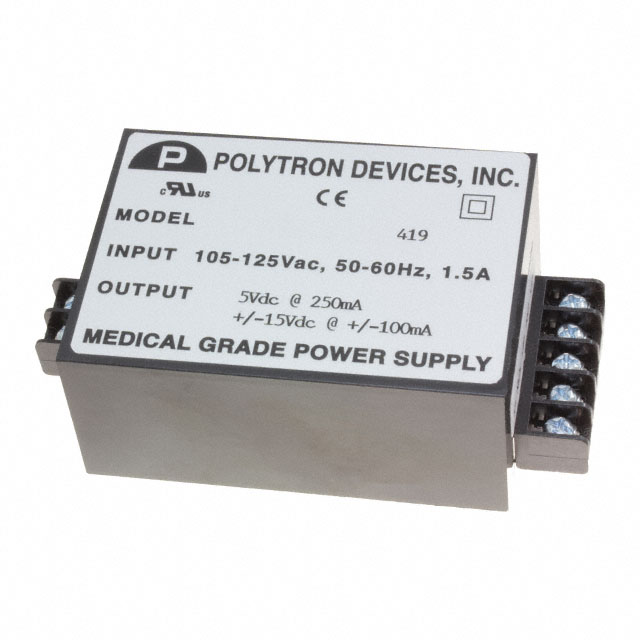

P52-15T/MHIA

Active

Polytron

AC/DC CONVERTER 5V +/-15V

Search across all available documentation for this part.

Active

Polytron

AC/DC CONVERTER 5V +/-15V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Enclosed AC DC Converters 3 Output 5V 15V -15V 105 ~ 125 VAC Input

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

AC/DC CONVERTER 5V +/-15V

Part	Voltage - Output 3	Number of Outputs	Voltage - Output 2	Applications	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output 2	Current - Output 3	Current - Output 1	Approval Agency	Type	Voltage - Output 1	Mounting Type	Voltage - Isolation	Voltage - Input [Min]	Voltage - Input [Max]	Load Regulation	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Package / Case	Current - Output (Max)	Line Regulation	Features
Polytron P52-15QXT/MHIA	-15 V	3	15 V	Medical	-25 °C	71 °C	100 mA	100 mA	250 mA	CE, cURus	Enclosed	5 V	Chassis Mount	4000 V	100 VAC	220 VAC
Polytron P52-15T/MHIA	-15 V	3	15 V	Medical	-25 °C	71 °C	100 mA	100 mA	250 mA	CE, cURus	Enclosed	5 V	Chassis Mount	4000 V	105 VAC	125 VAC
Polytron P52-15AX/MHIA	-15 V	3	15 V	Medical	-25 °C	71 °C				CE, cURus	Enclosed	5 V	Through Hole		115 VAC	220 VAC	0.1 %	3.5 in	88.9 mm	63.5 mm	1.56 in	39.6 mm	2.5 in	7-DIP Module	100 mA, 250 mA	0.02 %
Polytron P52-15XE	-15 V	3	15 V	ITE (Commercial)	-25 °C	71 °C				CE, cURus, UL	Enclosed	5 V	Through Hole		105 VAC	240 VAC	0.1 %	3.5 in	88.9 mm	63.5 mm	1.56 in	39.6 mm	2.5 in	7-DIP Module	100 mA, 250 mA	0.02 %	SCP
Polytron P52-15X/MHIA	-15 V	3	15 V	Medical	-25 °C	71 °C				CE, cURus	Enclosed	5 V	Through Hole		105 VAC	220 VAC	0.1 %	3.5 in	88.9 mm	63.5 mm	1.56 in	39.6 mm	2.5 in	7-DIP Module	100 mA, 250 mA	0.02 %
