VSC8531XMW-02
ActivePHY 1-CH 10MBPS/100MBPS/1GBPS 0.95V/2.38V 48-PIN QFN EP TRAY
Deep-Dive with AI
Search across all available documentation for this part.
VSC8531XMW-02
ActivePHY 1-CH 10MBPS/100MBPS/1GBPS 0.95V/2.38V 48-PIN QFN EP TRAY
Deep-Dive with AI
Technical Specifications
Parameters and characteristics commom to parts in this series
| Specification | VSC8531XMW-02 | VSC8531 Series |
|---|---|---|
| - | - | |
| Function | Ethernet | Ethernet |
| Interface | RMII | RMII |
| Mounting Type | Surface Mount | Surface Mount |
| Number of Circuits | 1 | 1 |
| Operating Temperature [Max] | 125 °C | 125 °C |
| Operating Temperature [Min] | 0 °C | -40 - 0 °C |

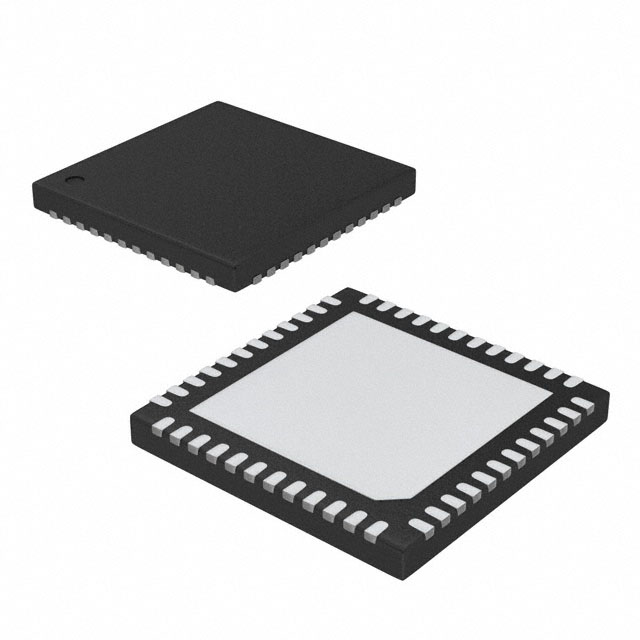

| Package / Case | 48-VFQFN Exposed Pad | 48-VFQFN Exposed Pad |
| Supplier Device Package | 48-QFN (6x6) | 48-QFN (6x6) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.40 | |
| 25 | $ 2.83 | |||
| 100 | $ 2.74 | |||
| Microchip Direct | TRAY | 1 | $ 3.40 | |
| 25 | $ 2.83 | |||
| 100 | $ 2.57 | |||
| 1000 | $ 2.39 | |||
| 5000 | $ 2.27 | |||
VSC8531 Series
1 Port GbE Cu PHY with RGMII/RMII (Ind. Temp)
| Part | Interface | Operating Temperature [Min] | Operating Temperature [Max] | Function | Mounting Type | Number of Circuits | Package / Case | Supplier Device Package |
|---|---|---|---|---|---|---|---|---|
Microchip Technology VSC8531XMW-02 | RMII | 0 °C | 125 °C | Ethernet | Surface Mount | 1 | 48-VFQFN Exposed Pad | 48-QFN (6x6) |
Microchip Technology VSC8531XMW-05 | RMII | -40 °C | 125 °C | Ethernet | Surface Mount | 1 | 48-VFQFN Exposed Pad | 48-QFN (6x6) |
Microchip Technology VSC8531XMW-02 | ||||||||
Microchip Technology VSC8531XMW-05 | ||||||||
Microchip Technology VSC8531XMW-02 | ||||||||
Microchip Technology VSC8531XMW-05 | ||||||||
Microchip Technology VSC8531XMW-05 |
Description
General part information
VSC8531 Series
Low-power, small form-factor Cu PHY with IEEE 802.3az Energy Efficient Ethernet (EEE) and Wake-on-LAN (WoL), with widest I/O LVCMOS support. The VSC8531 device, offered in a tiny 6 mm x 6 mm single-row QFN package, is designed for space-constrained 10/100/1000BASE-T applications. It features integrated line-side termination to conserve board space, lower EMI, and improve system performance. Additionally, integrated RGMII version 2.0 standard timing compliant compensation eliminates the need for on-board delay lines.
The device supports the industry’s widest range of LVCMOS levels for a parallel MAC interface including 1.5 V, 1.8 V, 2.5 V, and 3.3 V, as well as 1.2 V, 1.5 V, 1.8 V, 2.5 V, and 3.3 V support on the MDIO/MDC interface.
VSC8531 includes Microchip’s EcoEthernet™ 2.0 technology with Energy Efficient Ethernet and power saving features to reduce power based on link state and cable reach. It optimizes power consumption at all link operating speeds, and features Wake-on-LAN power management using magic packets.
