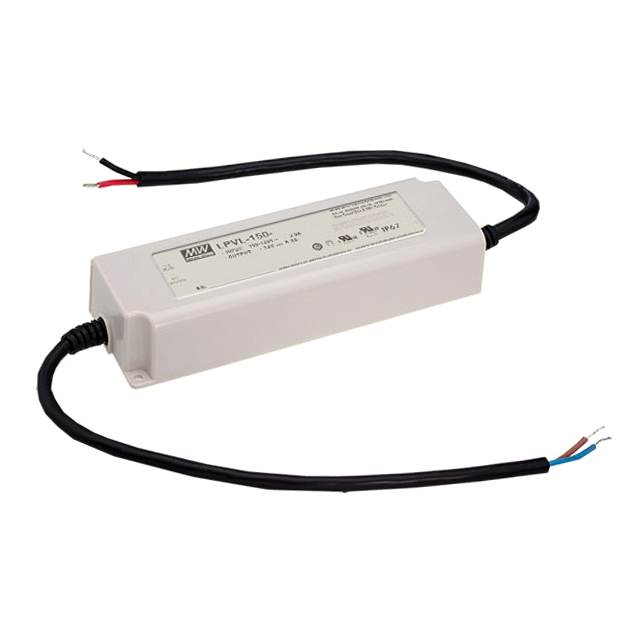

LPVL-150-24
ActiveMEAN WELL USA Inc.
LED DRIVER CV AC/DC 24V 6.3A
LPVL-150-24
ActiveMEAN WELL USA Inc.
LED DRIVER CV AC/DC 24V 6.3A
Description
General part information
LPVL-150 Series
6.3A 24V Constant Voltage LED Driver AC DC Converter Topology 1 Output
Technical Specifications
Parameters and characteristics for this part
| Specification | LPVL-150-24 |
|---|---|
| Approval Agency | cURus |
| Current - Output (Max) | 6.3 A |
| Efficiency | 89 % |
| Features | OCP, SCP, OTP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature (Max) | 65 °C |
| Operating Temperature (Min) | -25 °C |
| Power (Watts) | 151 W |
| Ratings | IP67 |
| Size / Dimension Height | 1.48 in |
| Size / Dimension Length | 7.52 in |
| Size / Dimension Width | 2.48 in |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Voltage |
| Voltage - Input (Max) | 132 VAC |
| Voltage - Input (Min) | 90 VAC |
| Voltage - Isolation | 3 kV |
| Voltage - Output | 24 V |
