TFA9892AUK/N1BZ

Active

NXP USA Inc.

IC AMP CLASS D MONO 6.6W 49WLCSP

Search across all available documentation for this part.

Active

NXP USA Inc.

IC AMP CLASS D MONO 6.6W 49WLCSP

Technical Specifications

Parameters and characteristics for this part

Specification	TFA9892AUK/N1BZ

Features	Short-Circuit, Thermal Protection, Depop
Max Output Power x Channels @ Load	1, 6.6 W, 8 Ohm
Mounting Type	Surface Mount
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Output Type	1-Channel (Mono)

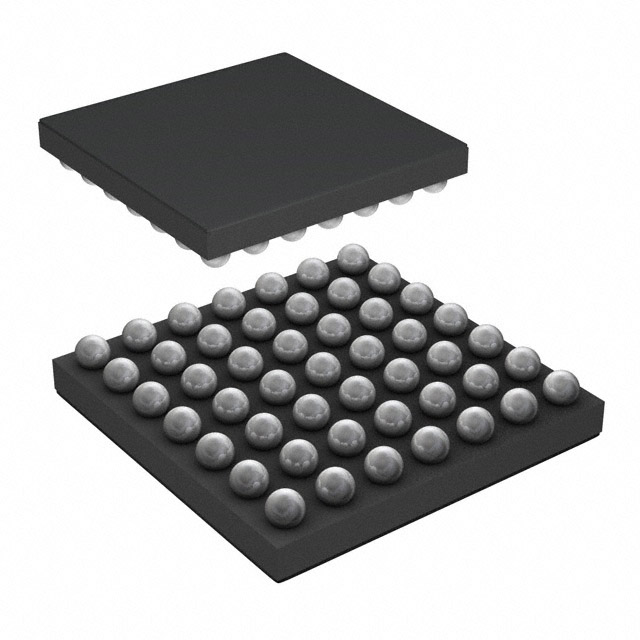

Package / Case	WLCSP, 49-UFBGA
Supplier Device Package	49-WLCSP
Supplier Device Package [x]	3.63
Supplier Device Package [y]	3.13
Type	Class D
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

IC AMP CLASS D MONO 6.6W 49WLCSP

Part	Max Output Power x Channels @ Load	Supplier Device Package [x]	Supplier Device Package	Supplier Device Package [y]	Voltage - Supply [Min]	Voltage - Supply [Max]	Mounting Type	Operating Temperature [Max]	Operating Temperature [Min]	Type	Package / Case	Features	Output Type
NXP USA Inc. TFA9892AUK/N1BZ	1, 6.6 W, 8 Ohm	3.63	49-WLCSP	3.13	2.7 V	5.5 V	Surface Mount	85 °C	-40 °C	Class D	49-UFBGA, WLCSP	Depop, Short-Circuit, Thermal Protection	1-Channel (Mono)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Amplifier IC 1-Channel (Mono) Class D 49-WLCSP (3.63x3.13)
