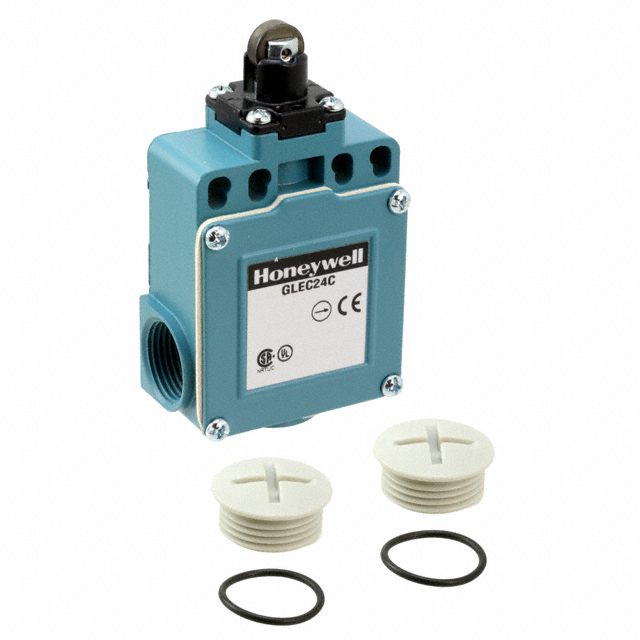

GLEC24C

Obsolete

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION DPDT 6A 120V

Search across all available documentation for this part.

Obsolete

Honeywell Sensing and Control EMEA

SWITCH SNAP ACTION DPDT 6A 120V

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	GLEC24C	GLEC2 Series

Actuator Type	Roller Plunger	Roller Plunger, Side Rotary, Roller
Circuit	DPDT	DPDT
Current Rating (Amps)	550 mA, 6 A	6 - 550 mA
Differential Travel	0.6 mm	0.6 mm
Differential Travel	0.025 in	0.025 in
Features	-	Steel Roller
Ingress Protection	IP67 - Dust Tight, Waterproof	IP67 - Dust Tight, Waterproof
Mechanical Life	15000000 Cycles	10000000 - 15000000 Cycles
Mounting Type	Chassis Mount	Chassis Mount
Operating Force	1315 gf	17 - 1315 gf
Operating Position	1.1 in	1.1 - 26 in
Operating Position	28 mm	28 mm
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-40 °C	-40 °C
Overtravel	3 mm	3 mm
Overtravel	0.118 in	0.118 - 49 in
Pretravel	0.12 in	0.12 - 26 in
Pretravel	3 mm	3 mm
Switch Function	On-Mom	On-Mom
Termination Style	Screw Terminal	Screw Terminal
Voltage Rating - AC	120 V	120 V
Voltage Rating - DC	125 VDC	125 VDC

SWITCH SNAP ACTION DPDT 6A 120V

Part	Operating Position	Operating Position	Termination Style	Switch Function	Mounting Type	Voltage Rating - AC	Overtravel	Overtravel	Operating Force	Voltage Rating - DC	Circuit	Differential Travel	Differential Travel	Ingress Protection	Pretravel	Pretravel	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Actuator Type	Features
Honeywell Sensing and Control EMEA GLEC24C	1.1 in	28 mm	Screw Terminal	On-Mom	Chassis Mount	120 V	3 mm	0.118 in	1315 gf	125 VDC	DPDT	0.6 mm	0.025 in	IP67 - Dust Tight, Waterproof	0.12 in	3 mm	6 A, 550 mA	85 °C	-40 °C	15000000 Cycles	Roller Plunger
Honeywell Sensing and Control EMEA GLEC24A1B	26 °		Screw Terminal	On-Mom	Chassis Mount	120 V		49 °	17 gfm	125 VDC	DPDT			IP67 - Dust Tight, Waterproof	26 °		6 A, 550 mA	85 °C	-40 °C	10000000 Cycles	Roller, Side Rotary	Steel Roller

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Switch DPDT Chassis Mount
