1241.1055.8000

Active

SCHURTER Inc.

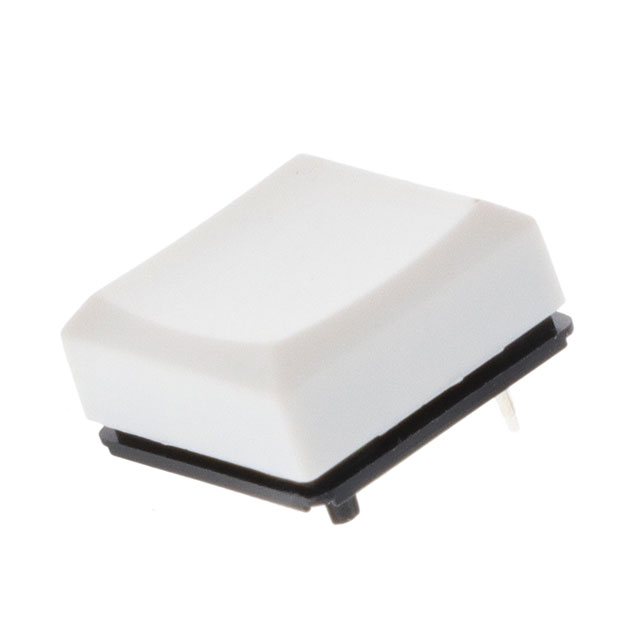

SWITCH TACT SPST-NO 0.125A 48V

Search across all available documentation for this part.

Active

SCHURTER Inc.

SWITCH TACT SPST-NO 0.125A 48V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Tactile Switch SPST-NO Top Actuated Through Hole

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	1241.1055.8000	1241.1055 Series

	-	-
Actuator Height off PCB, Vertical [z]	5.85 mm	5.85 mm
Actuator Material	Thermoplastic	Thermoplastic
Actuator Orientation	Top Actuated	Top Actuated
Actuator Type	Round Button	Round Button
Circuit	SPST-NO	SPST-NO
Contact Rating @ Voltage	0.125 A, 48 VDC	0.125 - 48 A
Illumination	Non-Illuminated	Non-Illuminated
Ingress Protection	IP40	IP40
Mechanical Life	1000000 Cycles	1000000 Cycles
Mounting Type	Through Hole	Through Hole
Operating Force	235 gf	235 gf
Operating Temperature [Max]	85 °C	85 °C
Operating Temperature [Min]	-25 °C	-25 °C
Outline [x]	12.65 mm	12.65 mm
Outline [y]	12.65 mm	12.65 mm
Switch Function	Off-Mom	Off-Mom
Switch Travel	0.45 mm	0.45 mm
Termination Style	PC Pin	PC Pin

SWITCH TACT SPST-NO 0.125A 48V

Part	Operating Force	Mechanical Life	Termination Style	Switch Function	Outline [y]	Outline [x]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Illumination	Actuator Type	Circuit	Ingress Protection	Actuator Material	Actuator Height off PCB, Vertical [z]	Actuator Orientation	Switch Travel	Contact Rating @ Voltage
SCHURTER Inc. 1241.1055.8000	235 gf	1000000 Cycles	PC Pin	Off-Mom	12.65 mm	12.65 mm	-25 °C	85 °C	Through Hole	Non-Illuminated	Round Button	SPST-NO	IP40	Thermoplastic	5.85 mm	Top Actuated	0.45 mm	0.125 A, 48 VDC
SCHURTER Inc. 1241.1055.7058	235 gf	1000000 Cycles	PC Pin	Off-Mom	12.65 mm	12.65 mm	-25 °C	85 °C	Through Hole	Non-Illuminated	Round Button	SPST-NO	IP40	Thermoplastic	5.85 mm	Top Actuated	0.45 mm	0.125 A, 48 VDC
SCHURTER Inc. 1241.1055.7000
