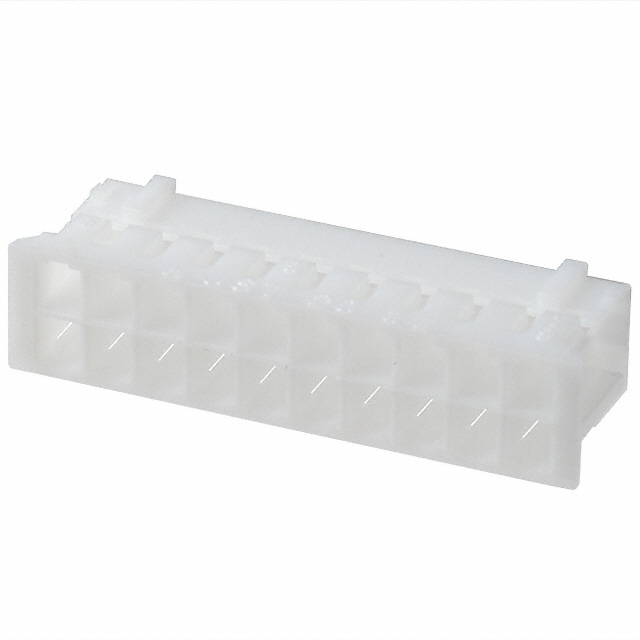

PHDR-20VS
ActiveJST Sales America Inc.
CONN RCPT HSG 20POS 2.00MM
Deep-Dive with AI
Search across all available documentation for this part.
PHDR-20VS
ActiveJST Sales America Inc.
CONN RCPT HSG 20POS 2.00MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PHDR-20VS |
|---|---|
| Color | Natural |
| Connector Type | Receptacle |
| Contact Termination | Crimp |
| Contact Type | Female Socket |
| Insulation Material | Polyamide (PA66), Nylon 6/6 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Number of Positions | 20 |
| Number of Rows | 2 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Pitch [x] | 0.079 in |
| Pitch [x] | 2 mm |
| Row Spacing | 2 mm |
| Row Spacing | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.39 | |
| 10 | $ 0.33 | |||
| 100 | $ 0.26 | |||
| 1000 | $ 0.19 | |||
| 5000 | $ 0.16 | |||
| 10000 | $ 0.15 | |||
Description
General part information
PHDR-20V Series
20 Rectangular Connectors - Housings Receptacle Natural 0.079" (2.00mm)
