SF1JWF-7

Active

Diodes Inc

1.0A SURFACE MOUNT SUPER-FAST RECTIFIER

Search across all available documentation for this part.

Active

Diodes Inc

1.0A SURFACE MOUNT SUPER-FAST RECTIFIER

Technical Specifications

Parameters and characteristics for this part

Specification	SF1JWF-7

Capacitance @ Vr, F	7 pF
Current - Average Rectified (Io)	1 A
Current - Reverse Leakage @ Vr	5 µA
Mounting Type	Surface Mount
Operating Temperature - Junction [Max]	150 °C
Operating Temperature - Junction [Min]	-65 C

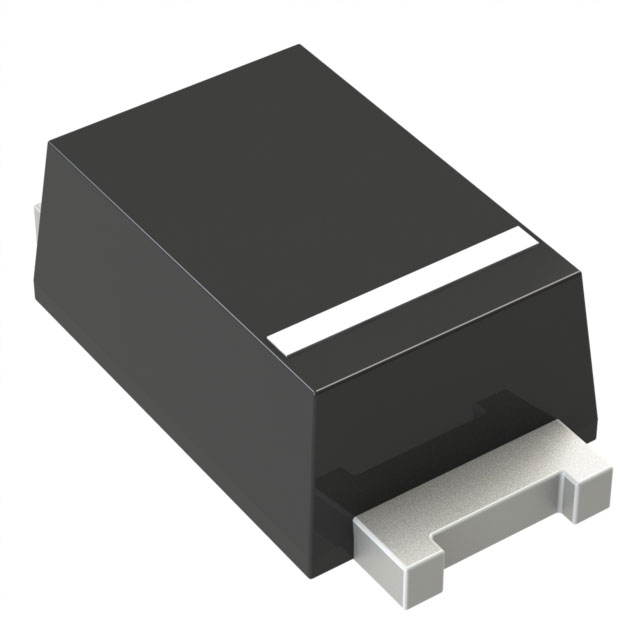

Package / Case	SOD-123F
Reverse Recovery Time (trr)	35 ns
Speed	200 mA, 500 ns
Supplier Device Package	SOD-123F
Technology	Standard
Voltage - DC Reverse (Vr) (Max) [Max]	600 V
Voltage - Forward (Vf) (Max) @ If	1.7 V

1.0A SURFACE MOUNT SUPER-FAST RECTIFIER

Part	Current - Average Rectified (Io)	Reverse Recovery Time (trr)	Package / Case	Capacitance @ Vr, F	Technology	Mounting Type	Voltage - DC Reverse (Vr) (Max) [Max]	Supplier Device Package	Speed	Operating Temperature - Junction [Max]	Operating Temperature - Junction [Min]	Current - Reverse Leakage @ Vr	Voltage - Forward (Vf) (Max) @ If
Diodes Inc SF1JWF-7	1 A	35 ns	SOD-123F	7 pF	Standard	Surface Mount	600 V	SOD-123F	200 mA 500 ns	150 °C	-65 C	5 µA	1.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

1.0A SURFACE MOUNT SUPER-FAST RECTIFIER
