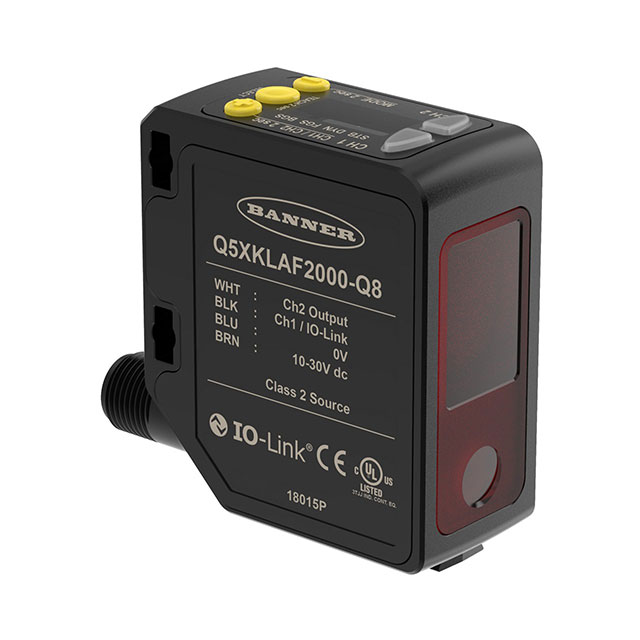

Q5XKLAF2000-Q8

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, Q5X SERIES, LASER, 2 M, BACKGROUND SUPPRESSION, NPN/PNP, 10 TO 30 VDC

Search across all available documentation for this part.

Active

BANNER ENGINEERING

PHOTOELECTRIC SENSOR, Q5X SERIES, LASER, 2 M, BACKGROUND SUPPRESSION, NPN/PNP, 10 TO 30 VDC

Technical Specifications

Parameters and characteristics for this part

Specification	Q5XKLAF2000-Q8

Ingress Protection	IP67 (IEC 60529)
Light Source	RED (650nm)
Operating Temperature [Max] [custom]	50 °C
Operating Temperature [Min] [custom]	-10 °C
Output Configuration	PNP/NPN
Sensing Distance [Max]	78.74 "
Sensing Distance [Max]	2000 mm
Sensing Distance [Min]	3.74 in
Sensing Distance [Min]	9.5 cm
Sensing Method	Reflective
Voltage - Supply [Max]	30 VDC
Voltage - Supply [Min]	10 VDC

Part	Ingress Protection	Sensing Distance [Max]	Sensing Distance [Max]	Sensing Distance [Min]	Sensing Distance [Min]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Sensing Method	Output Configuration	Voltage - Supply [Max]	Voltage - Supply [Min]	Light Source
BANNER ENGINEERING Q5XKLAF2000-Q8	IP67 (IEC 60529)	78.74 "	2000 mm	3.74 in	9.5 cm	-10 °C	50 °C	Reflective	PNP/NPN	30 VDC	10 VDC	RED (650nm)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 419.00
Newark	Each	1	$ 407.69

General part information

Q5XKLAF2000-Q8 is a Q5X series adjustable field, high power, multi-purpose photoelectric sensor.
