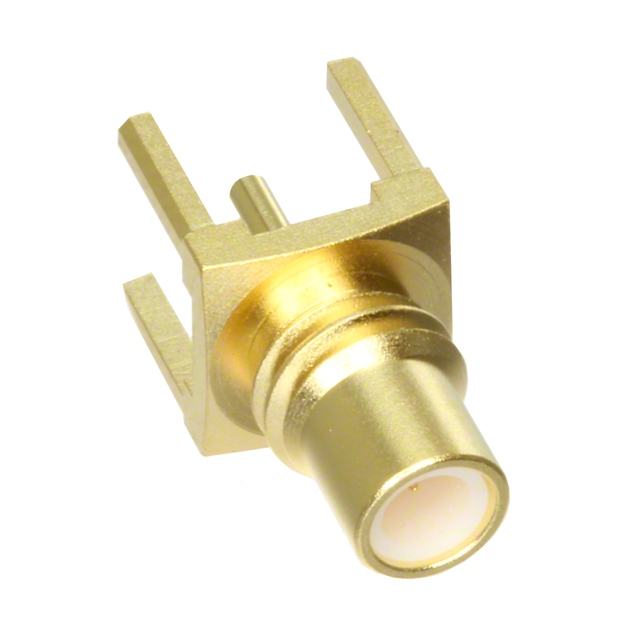

39S101-400L5

Active

Rosenberger

CONN SMC PLUG STR 50OHM PCB

Search across all available documentation for this part.

Active

Rosenberger

CONN SMC PLUG STR 50OHM PCB

Technical Specifications

Parameters and characteristics for this part

Specification	39S101-400L5

Body Finish	Gold
Body Material	Brass
Center Contact Material	Brass
Center Contact Plating	Gold
Connector Style	SMC
Connector Type	Male Pin, Plug
Contact Termination	Solder
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Gold
Impedance	50 Ohms
Mating Cycles	500
Mounting Type	Through Hole
Number of Ports	1
Operating Temperature [Max]	155 °C
Operating Temperature [Min]	-55 °C
Shield Termination	Solder
Voltage Rating	250 VDC

Part	Center Contact Plating	Connector Style	Impedance	Number of Ports	Voltage Rating	Frequency - Max [Max]	Mating Cycles	Body Material	Shield Termination	Dielectric Material	Body Finish	Mounting Type	Connector Type	Center Contact Material	Housing Color	Operating Temperature [Max]	Operating Temperature [Min]	Contact Termination
Rosenberger 39S101-400L5	Gold	SMC	50 Ohms	1	250 VDC	6000 MHz	500	Brass	Solder	Polytetrafluoroethylene (PTFE)	Gold	Through Hole	Male Pin Plug	Brass	Gold	155 °C	-55 °C	Solder

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

SMC Connector Plug, Male Pin 50 Ohms Through Hole Solder

Technical documentation and resources

No documents available
