KPJX-PM-4S-S

Active

Kycon, Inc.

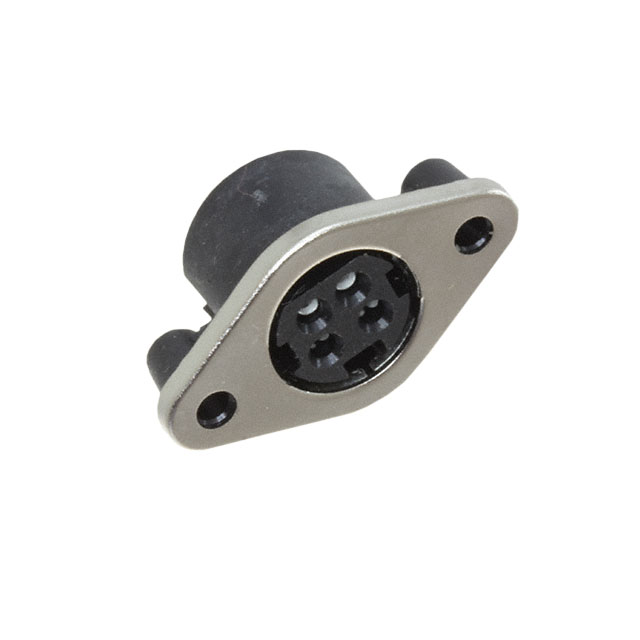

CONN JACK FMALE 4POS TIN SOLDER

Search across all available documentation for this part.

Active

Kycon, Inc.

CONN JACK FMALE 4POS TIN SOLDER

Technical Specifications

Parameters and characteristics for this part

Specification	KPJX-PM-4S-S

Applications	Digital, Power
Color	Black, Silver
Connector Type	Female Sockets, Jack
Contact Material	Brass
Current Rating (Amps)	7.5 A
Fastening Type	Snap-In
Features	Ground
Insert Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Mounting Type	Through Hole, Panel Mount
Number of Positions	4
Operating Temperature [Max]	75 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Primary Material	Plastic
Shell Material	Polybutylene Terephthalate (PBT)
Shell Size - Insert	Power DIN
Shielding	Shielded
Termination	Solder
Voltage Rating	48 VDC

Part	Applications	Connector Type	Material Flammability Rating	Number of Positions	Color	Insert Material	Features	Operating Temperature [Max]	Operating Temperature [Min]	Current Rating (Amps)	Voltage Rating	Primary Material	Shell Size - Insert	Orientation	Mounting Type	Termination	Contact Material	Shielding	Fastening Type	Mounting Feature	Shell Material	Cable Opening [custom]	Cable Opening [custom]	Backshell Material, Plating
Kycon, Inc. KPJXHT-3S-S	Digital Power	Female Sockets Jack	UL94 V-0	3	Black Silver	Thermoplastic	Board Guide Board Lock	85 °C	-40 °C	1 A 7.5 A	48 VDC	Plastic	Power DIN	Keyed	Through Hole Right Angle	Solder	Brass Phosphor Bronze	Shielded	Snap-In
Kycon, Inc. KPJX-PM-4S-S	Digital Power	Female Sockets Jack	UL94 V-0	4	Black Silver	Polybutylene Terephthalate (PBT)	Ground	75 ░C	-40 °C	7.5 A	48 VDC	Plastic	Power DIN	Keyed	Panel Mount Through Hole	Solder	Brass	Shielded	Snap-In	Flange	Polybutylene Terephthalate (PBT)
Kycon, Inc. KPJX-CM-4S	Digital Power	Receptacle Female Sockets	UL94 HB UL94 V-2	4	Black	Nylon Polyamide (PA)	Backshell Strain Relief	85 °C	-40 °C	7.5 A	48 VDC	Plastic	Power DIN	Keyed	Free Hanging (In-Line)		Brass	Unshielded	Snap-In		Polyacrylonitrile Butadiene Styrene (ABS)	6.3 mm	0.248 in	Polyacrylonitrile Butadiene Styrene (ABS)

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

4 (Power) Position Circular Connector Jack, Female Sockets Solder
