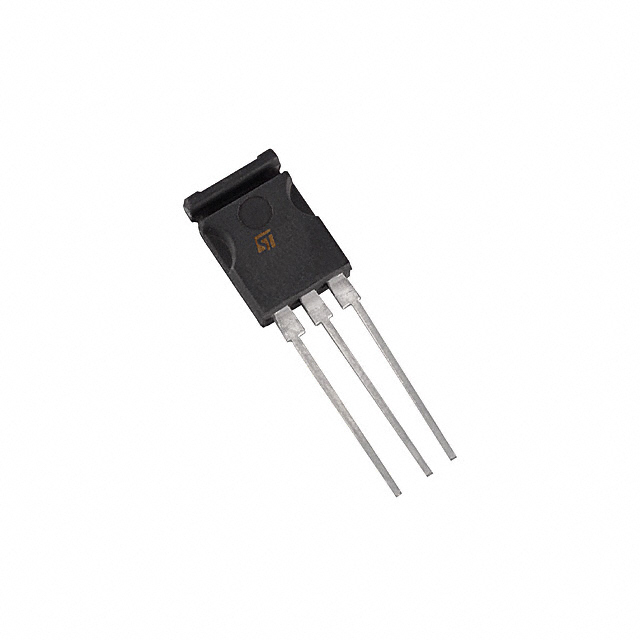

VNK5N07FM
ActiveSTMicroelectronics
IC PWR DRIVER N-CHAN 1:1 SOT82FM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
VNK5N07FM
ActiveSTMicroelectronics
IC PWR DRIVER N-CHAN 1:1 SOT82FM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | VNK5N07FM |
|---|---|
| Current - Output (Max) [Max] | 3.5 A |
| Fault Protection | Over Temperature, Current Limiting (Fixed), Over Voltage |
| Features | Status Flag |
| Input Type | Non-Inverting |
| Interface | On/Off |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Output Configuration | High Side |
| Output Type | N-Channel |
| Package / Case | SOT-82FM-3 |
| Ratio - Input:Output [custom] | 1:1 |
| Rds On (Typ) | 200 mOhm |
| Supplier Device Package | SOT-82FM |
| Switch Type | General Purpose |
| Voltage - Load | 55 V |
| Voltage - Supply (Vcc/Vdd) | False |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
VNK5N Series
IC PWR DRIVER N-CHAN 1:1 SOT82FM
| Part | Supplier Device Package | Switch Type | Input Type | Features | Package / Case | Current - Output (Max) [Max] | Number of Outputs | Voltage - Load | Fault Protection | Interface | Output Type | Rds On (Typ) | Mounting Type | Ratio - Input:Output [custom] | Voltage - Supply (Vcc/Vdd) | Output Configuration |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
STMicroelectronics VNK5N07FM | SOT-82FM | General Purpose | Non-Inverting | Status Flag | SOT-82FM-3 | 3.5 A | 1 | 55 V | Current Limiting (Fixed), Over Temperature, Over Voltage | On/Off | N-Channel | 200 mOhm | Surface Mount | 1:1 | High Side |
Description
General part information
VNK5N Series
Power Switch/Driver 1:1 N-Channel 3.5A SOT-82FM
