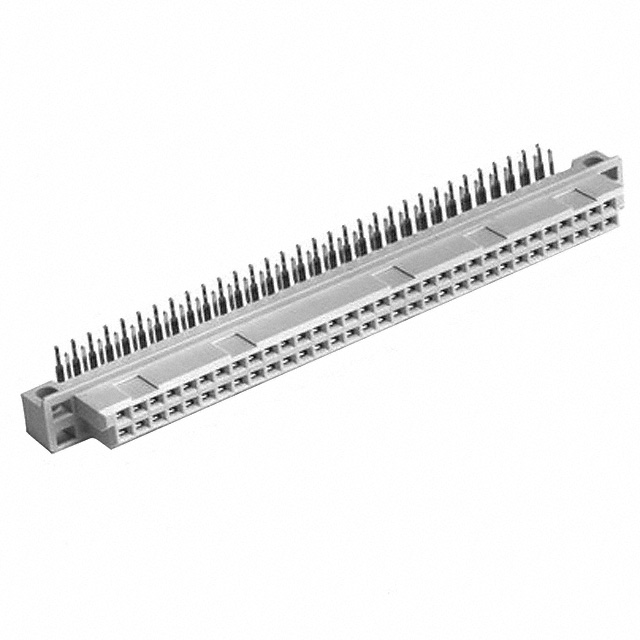

7164-50B2TH

Active

3M (TC)

CONN DIN RCPT 64POS PCB RA GOLD

Search across all available documentation for this part.

Active

3M (TC)

CONN DIN RCPT 64POS PCB RA GOLD

Technical Specifications

Parameters and characteristics for this part

Specification	7164-50B2TH

Connector Type	Receptacle, Female Sockets
Contact Finish	Gold
Contact Finish Thickness	15 µin
Contact Finish Thickness	0.38 µm
Current Rating (Amps)	3 A
Material - Insulation	Glass Filled, Polyester, Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	64
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch [x]	2.54 mm
Pitch [x]	0.1 in
Style	Q
Termination	Solder

Part	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish Thickness	Contact Finish Thickness	Number of Positions Loaded	Style	Mounting Type	Pitch [x]	Pitch [x]	Number of Rows	Material - Insulation	Termination	Number of Positions	Connector Type	Contact Finish	Current Rating (Amps)
3M (TC) 7164-50B2TH	-55 °C	125 °C	UL94 V-0	15 µin	0.38 µm	All	Q	Through Hole Right Angle	2.54 mm	0.1 in	2	Glass Filled Polybutylene Terephthalate (PBT) Polyester	Solder	64	Receptacle Female Sockets	Gold	3 A

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

64 Position Din Connector Receptacle, Female Sockets Gold Through Hole, Right Angle
