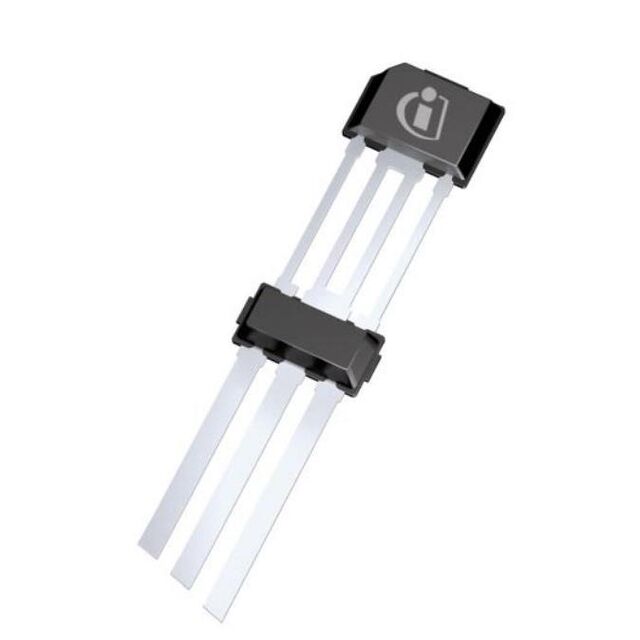

TLE4929CXVAM18AAHAMA1

Active

Infineon Technologies

SPEED SENSORS

Search across all available documentation for this part.

Active

Infineon Technologies

SPEED SENSORS

Technical Specifications

Parameters and characteristics for this part

Specification	TLE4929CXVAM18AAHAMA1

Current - Output (Max) [Max]	15 mA
Current - Supply (Max) [Max]	13.4 mA
Features	Temperature Compensated, Programmable
Grade	Automotive
Mounting Type	Through Hole
Operating Temperature [Max]	175 °C
Operating Temperature [Min]	-40 C
Output Type	Open Drain
Package / Case	3-SIP Module
Qualification	AEC-Q100
Sensing Range	120 mT
Supplier Device Package	PG-SSO-3-52
Technology	Hall Effect
Voltage - Supply [Max]	16 V
Voltage - Supply [Min]	4 V

Part	Package / Case	Voltage - Supply [Max]	Voltage - Supply [Min]	Output Type	Technology	Current - Supply (Max) [Max]	Sensing Range	Grade	Operating Temperature [Min]	Operating Temperature [Max]	Features	Supplier Device Package	Current - Output (Max) [Max]	Mounting Type	Qualification
Infineon Technologies TLE4929CXVAM18NAHAMA1	3-SIP Module	16 V	4 V	Open Drain	Hall Effect	13.4 mA	120 mT	Automotive	-40 C	175 °C	Programmable Temperature Compensated	PG-SSO-3-52	15 mA	Through Hole	AEC-Q100
Infineon Technologies TLE4929CXVAM38NAHAMA1	3-SIP Module	16 V	4 V	Open Drain	Hall Effect	13.4 mA	120 mT	Automotive	-40 C	175 °C	Programmable Temperature Compensated	PG-SSO-3-52	15 mA	Through Hole	AEC-Q100
Infineon Technologies TLE4929CXAFM28HAMA1	3-SIP Module	16 V	4 V	Open Drain	Hall Effect	13.4 mA	120 mT	Automotive	-40 °C	185 °C		PG-SSO-3-52	15 mA	Through Hole	AEC-Q100
Infineon Technologies TLE4929CXVAM18AAHAMA1	3-SIP Module	16 V	4 V	Open Drain	Hall Effect	13.4 mA	120 mT	Automotive	-40 C	175 °C	Programmable Temperature Compensated	PG-SSO-3-52	15 mA	Through Hole	AEC-Q100

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Digital Switch Open Drain Hall Effect PG-SSO-3-52
