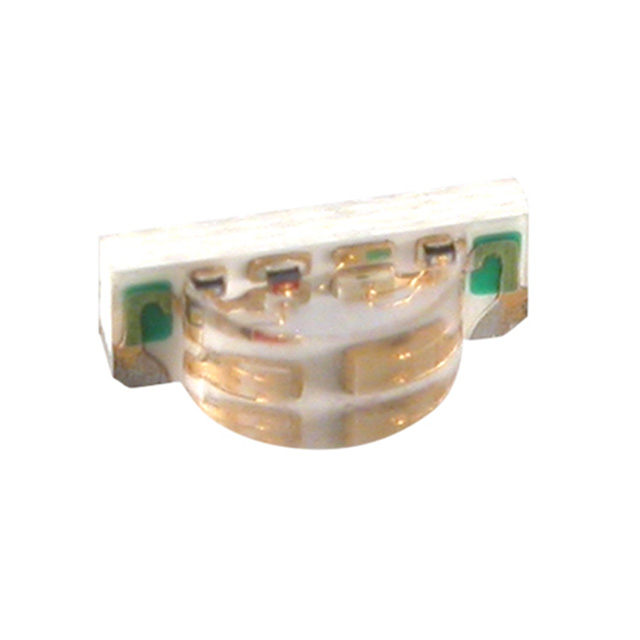

XZFBBZEBM2DGZ157W
ActiveSunLED
LED RGB CLEAR 6SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XZFBBZEBM2DGZ157W
ActiveSunLED
LED RGB CLEAR 6SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XZFBBZEBM2DGZ157W |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Independent |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Current - Test [custom] | 20 mA |
| Height (Max) [Max] | 1.2 mm |
| Lens Color | Colorless |
| Lens Size [x] | 2 mm |
| Lens Size [y] | 1 mm |
| Lens Style | Rectangle with Domed Top |
| Lens Transparency | Clear |
| Millicandela Rating [custom] | 775 mcd |
| Millicandela Rating [custom] | 148 mcd |
| Millicandela Rating [custom] | 657 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | 6-SMD |
| Viewing Angle | 150 ° |
| Voltage - Forward (Vf) (Typ) [custom] | 3.2 V |
| Voltage - Forward (Vf) (Typ) [custom] | 3.3 V |
| Voltage - Forward (Vf) (Typ) [custom] | 2.1 V |
| Wavelength - Dominant [custom] | 624 nm |
| Wavelength - Dominant [custom] | 470 nm |
| Wavelength - Dominant [custom] | 525 nm |
| Wavelength - Peak [custom] | 631 nm |
| Wavelength - Peak [custom] | 465 nm |
| Wavelength - Peak [custom] | 520 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.88 | |
| 10 | $ 1.25 | |||
| 100 | $ 0.96 | |||
| 500 | $ 0.87 | |||
| 1000 | $ 0.75 | |||
| Digi-Reel® | 1 | $ 1.88 | ||
| 10 | $ 1.25 | |||
| 100 | $ 0.96 | |||
| 500 | $ 0.87 | |||
| 1000 | $ 0.75 | |||
| Tape & Reel (TR) | 2000 | $ 0.67 | ||
Description
General part information
XZFBBZEBM2 Series
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2.1V Red, 3.2V Green, 3.3V Blue 6-SMD, No Lead
