392-036-559-201

Active

EDAC Inc.

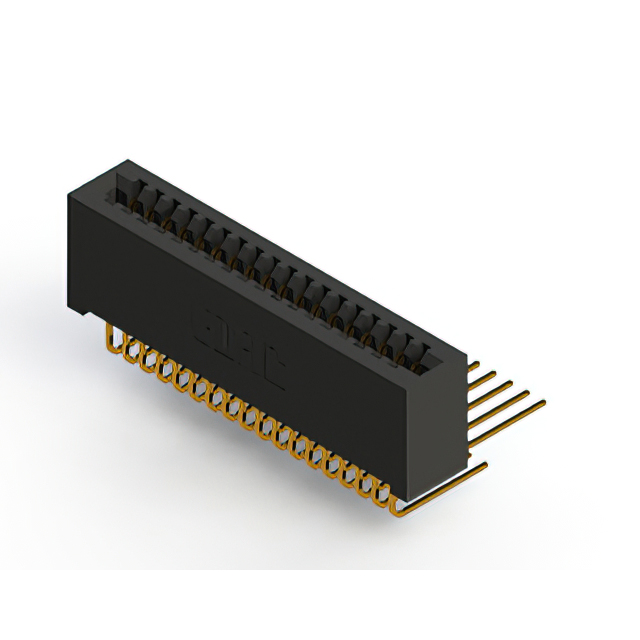

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

392-036-559-201

Active

EDAC Inc.

CARD EDGE CONNECTOR ROHS COMPLIANT: YES

Description Specifications Series Pricing CAD Documents

Description

General part information

392-036 Series

36 Position Female Connector Non Specified - Dual Edge Gold 0.100" (2.54mm) Black

Technical Specifications

Parameters and characteristics for this part

Specification	392-036-559-201

Card Thickness (Max)	0.07 in
Card Thickness (Min)	0.054 in
Card Type	Non Specified, Dual Edge
Color	Black
Contact Finish	Gold
Contact Finish Thickness	10 Ąin
Contact Material	Copper Alloy
Contact Type	Cantilever
Gender	Female
Material - Insulation	Polyester Thermoplastic
Mounting Type	Through Hole, Right Angle
Number of Positions	18, 36
Number of Rows	2
Operating Temperature (Max)	105 °C
Operating Temperature (Min)	-40 °C
Pitch	0.1 in
Read Out	Dual
Termination	Wire Wrap, Solder
Termination Rows	2 rows

392-036 Series

...

Part	Contact Finish	Mounting Type	Flange Feature Diameter	Flange Feature	Contact Material	Contact Type	Gender	Contact Finish Thickness	Read Out	Number of Rows	Termination	Operating Temperature (Min)	Operating Temperature (Max)	Number of Positions	Pitch	Card Type	Color	Card Thickness (Min)	Card Thickness (Max)	Material - Insulation	Termination Rows	Features
EDAC Inc. 392-036-559-203	Gold	Right Angle Through Hole	0.116 in	Floating Bobbin Flush Mount	Copper Alloy	Cantilever	Female	10 Ąin	Dual	2	Solder Wire Wrap	-40 °C	105 °C	18 36	0.1 in	Dual Edge Non Specified	Black	0.054 in	0.07 in	Polyester Thermoplastic	2 rows
EDAC Inc. 392-036-521-201	Gold	Through Hole			Copper Alloy	Cantilever	Female	10 Ąin	Dual	2	Solder	-40 °C	105 °C	18 36	0.1 in	Dual Edge Non Specified	Black	0.054 in	0.07 in	Polyester Thermoplastic	2 rows
EDAC Inc. 392-036-559-201	Gold	Right Angle Through Hole			Copper Alloy	Cantilever	Female	10 Ąin	Dual	2	Solder Wire Wrap	-40 °C	105 °C	18 36	0.1 in	Dual Edge Non Specified	Black	0.054 in	0.07 in	Polyester Thermoplastic	2 rows
EDAC Inc. 392-036-542-104	Gold	Through Hole	0.156 in	Flush Mount Top Opening Unthreaded	Copper Alloy	Cantilever	Female	10 Ąin	Single	1	Wire Wrap	-40 °C	105 °C	36	0.1 in	Non Specified Single Edge	Black	0.054 in	0.07 in	Polyester Thermoplastic	1 rows
EDAC Inc. 392-036-541-107	Gold	Through Hole		Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Cantilever	Female	10 Ąin	Single	1	Wire Wrap	-40 °C	105 °C	36	0.1 in	Non Specified Single Edge	Black	0.054 in	0.07 in	Polyester Thermoplastic	1 rows
EDAC Inc. 392-036-524-101	Gold	Through Hole			Copper Alloy	Cantilever	Female	10 Ąin	Single	1	Solder	-40 °C	105 °C	36	0.1 in	Non Specified Single Edge	Black	0.054 in	0.07 in	Polyester Thermoplastic	1 rows
EDAC Inc. 392-036-555-207	Gold	Board Edge Straddle Mount		Flush Mount M3 Threaded Insert Top Opening	Copper Alloy	Cantilever	Female	10 Ąin	Dual	2	Solder Eyelet(s)	-40 °C	105 °C	18 36	0.1 in	Dual Edge Non Specified	Black	0.054 in	0.07 in	Polyester Thermoplastic	2 rows	Card Extender
EDAC Inc. 392-036-544-104	Gold	Through Hole	0.156 in	Flush Mount Top Opening Unthreaded	Copper Alloy	Cantilever	Female	10 Ąin	Single	1	Wire Wrap	-40 °C	105 °C	36	0.1 in	Non Specified Single Edge	Black	0.054 in	0.07 in	Polyester Thermoplastic	1 rows
EDAC Inc. 392-036-540-208	Gold	Through Hole		4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Cantilever	Female	10 Ąin	Dual	2	Wire Wrap	-40 °C	105 °C	18 36	0.1 in	Dual Edge Non Specified	Black	0.054 in	0.07 in	Polyester Thermoplastic	2 rows
EDAC Inc. 392-036-558-108	Gold	Right Angle Through Hole		4-40 Flush Mount Threaded Insert Top Opening	Copper Alloy	Cantilever	Female	10 Ąin	Single	1	Solder Wire Wrap	-40 °C	105 °C	36	0.1 in	Non Specified Single Edge	Black	0.054 in	0.07 in	Polyester Thermoplastic	1 rows

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Create a free account to access distributor pricing data.

CAD

3D models and CAD resources for this part

Documents

Technical documentation and resources

392-036-559-201 | Datasheet
