JB-FT20.

Active

American Electrical Inc.

JUNCTION BOX PLAS 6.3"L X 3.15"W

Search across all available documentation for this part.

Active

American Electrical Inc.

JUNCTION BOX PLAS 6.3"L X 3.15"W

Technical Specifications

Parameters and characteristics for this part

Part	Design	Ratings	Height [z]	Height [z]	Features	Area (L x W)	Area (L x W)	Material	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Container Type	Color	Features
American Electrical Inc. JB-FT5	Cover Included	IP65	85 mm	3.346 in	Sealed Terminals - 5	10.3 in²	66 cm²	Plastic Polycarbonate	82 mm	3.15 in	80 mm	3.228 in	Junction Box	Gray
American Electrical Inc. JB-FT15.	Cover Included	IP65	85 mm	3.346 in	Sealed	19.8 in˛	128 cm˛	Plastic Polycarbonate	160 mm	3.15 in	80 mm	6.299 "	Junction Box	Gray	15
American Electrical Inc. JB-FT10.	Cover Included	IP65	85 mm	3.346 in	Sealed	14.9 in˛	96 cm˛	Plastic Polycarbonate	120 mm	3.15 in	80 mm	4.724 "	Junction Box	Gray	10
American Electrical Inc. JB-FT20.	Cover Included	IP65	85 mm	3.346 in	Sealed Terminals - 20	19.8 in˛	128 cm˛	Plastic Polycarbonate	160 mm	3.15 in	80 mm	6.299 "	Junction Box	Gray

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

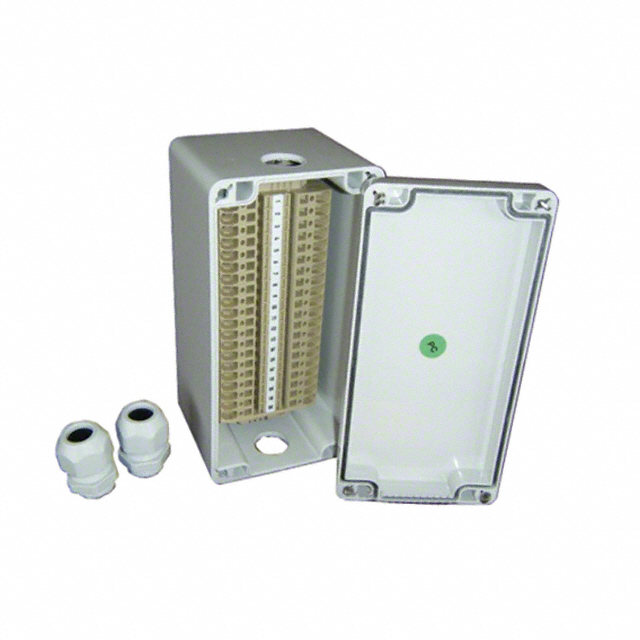

Junction Box Plastic, Polycarbonate Gray Cover Included 6.299" L x 3.150" W (160.00mm x 80.00mm) X 3.346" (85.00mm)

Technical documentation and resources

No documents available
