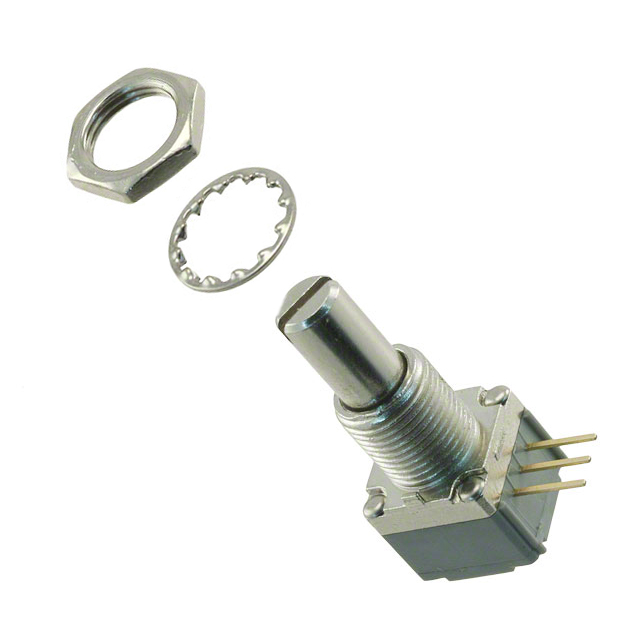

P260P-S1BS3CA10K

Active

TT Electronics/BI

POT 10K OHM 1/4W PLASTIC LOG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P260P-S1BS3CA10K

Active

TT Electronics/BI

POT 10K OHM 1/4W PLASTIC LOG

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P260P-S1BS3CA10K	P260P Series

Actuator Diameter	6.35 mm	6.35 mm
Actuator Diameter	-	3.18 - 3.2 mm
Actuator Diameter [diameter]	0.25 in	0.125 - 0.25 in
Actuator Length	-	0.472 - 1.102 in
Actuator Length	-	12 - 28 mm
Actuator Length [z]	20 mm	16 - 20 mm
Actuator Length [z]	0.787 in	0.63 - 0.787 in
Actuator Type	Slotted	Slotted, Flatted
Adjustment Type	Side Adjustment	Side Adjustment
Built in Switch	False	False
Bushing Thread	3/8-32	1/4-32, 3/8-32
Features	Sealed	Sealed
Number of Gangs	1	1 - 2
Number of Turns	1	1
Power (Watts)	0.25 W	0.25 - 0.5 W
Power (Watts)	250 mW	0.5 - 250 W
Resistance (Ohms)	10k	10k, 1M, 25k
Resistance (Ohms)	-	2.5 - 500 kOhms
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	295 °	295 °
Size - Body	-	12.7 mm
Size - Body	-	12.7 mm
Size - Body	-	0.5 "
Size - Body [x]	12.7 mm	12.7 mm
Size - Body [x]	0.5 in	0.5 in
Size - Body [y]	12.7 mm	12.7 mm
Size - Body [y]	0.5 "	0.5 "
Taper	Logarithmic	Linear, Logarithmic, Reverse Logarithmic
Termination Style	PC Pins	PC Pins
Tolerance	10 %	10 %

P260P Series

POT 50K OHM 1/2W PLASTIC LINEAR

Part	Power (Watts)	Power (Watts)	Tolerance	Actuator Length [z]	Actuator Length [z]	Termination Style	Taper	Number of Gangs	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Adjustment Type	Bushing Thread	Number of Turns	Rotation	Features	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Actuator Type	Resistance (Ohms)	Resistive Material	Resistance (Ohms)	Size - Body [y]	Size - Body [z]	Size - Body [z]	Actuator Diameter
TT Electronics/BI P260P-D1AS2CB50K	0.5 W	0.5 W	10 %	0.63 in	16 mm	PC Pins	Linear	1	0.126 in	3.2 mm	Side Adjustment	1/4-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Slotted	50 kOhms	Conductive Plastic
TT Electronics/BI P260P-D1AS2AB10K	0.5 W	0.5 W	10 %	0.63 in	16 mm	PC Pins	Linear	1	0.125 in	3.18 mm	Side Adjustment	1/4-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Slotted		Conductive Plastic	10k
TT Electronics/BI P260P-S1AS4CA10K	250 mW	0.25 W	10 %			PC Pins	Logarithmic	1	0.126 in	3.2 mm	Side Adjustment	1/4-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Slotted		Conductive Plastic	10k
TT Electronics/BI P260P-S1AS4CB50K	0.5 W	0.5 W	10 %			PC Pins	Linear	1	0.126 in	3.2 mm	Side Adjustment	1/4-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Slotted	50 kOhms	Conductive Plastic
TT Electronics/BI P260P-D1AS3CB100K	0.5 W	0.5 W	10 %	0.787 in	20 mm	PC Pins	Linear	1	0.125 in	3.18 mm	Side Adjustment	1/4-32	1	295 °		12.7 mm		0.5 "	0.5 in	Slotted	100 kOhms	Conductive Plastic		12.7 mm	12.7 mm	0.5 "
TT Electronics/BI P260P-D1BF20CC10K	250 mW	0.25 W	10 %	0.63 in	16 mm	PC Pins	Reverse Logarithmic	1	0.25 in		Side Adjustment	3/8-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Flatted		Conductive Plastic	10k				6.35 mm
TT Electronics/BI P260P-D2BF3CA50K	250 mW	0.25 W	10 %	0.787 in	20 mm	PC Pins	Logarithmic	2	0.25 in		Side Adjustment	3/8-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Flatted	50 kOhms	Conductive Plastic					6.35 mm
TT Electronics/BI P260P-S2BS3CB500K	0.5 W	0.5 W	10 %	0.787 in	20 mm	PC Pins	Linear	2	0.25 in		Side Adjustment	3/8-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Slotted	500 kOhms	Conductive Plastic					6.35 mm
TT Electronics/BI P260P-S2BS3CA10K	250 mW	0.25 W	10 %	0.787 in	20 mm	PC Pins	Logarithmic	2	0.25 in		Side Adjustment	3/8-32	1	295 °		12.7 mm		0.5 "	0.5 in	Slotted		Conductive Plastic	10k	12.7 mm	12.7 mm	0.5 "	6.35 mm
TT Electronics/BI P260P-D1AF3CB10K	0.5 W	0.5 W	10 %	0.787 in	20 mm	PC Pins	Linear	1	0.126 in	3.2 mm	Side Adjustment	1/4-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Flatted		Conductive Plastic	10k

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1120	$ 7.61

Description

General part information

P260P Series

10k Ohm 1 Gang Logarithmic Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.25W, 1/4W PC Pins
