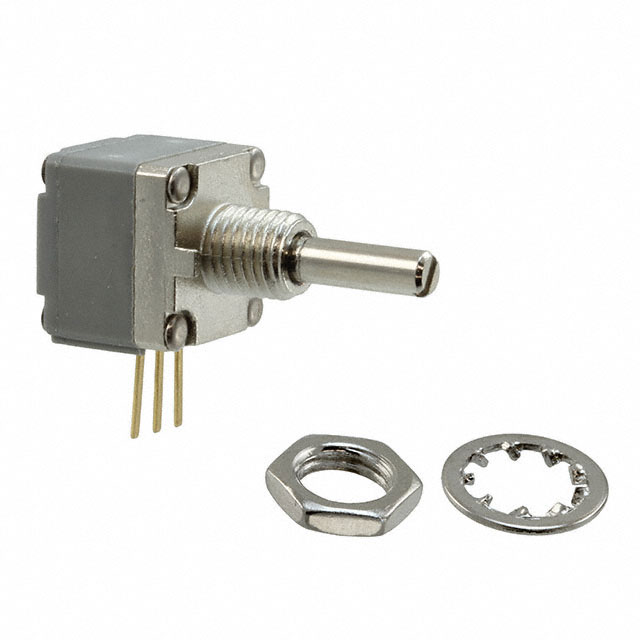

P260P-D1AS2AB10K

Active

TT Electronics/BI

POT 10K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

P260P-D1AS2AB10K

Active

TT Electronics/BI

POT 10K OHM 1/2W PLASTIC LINEAR

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1120	$ 7.22

Description

General part information

P260P Series

10k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 0.5W, 1/2W PC Pins

Documents

Technical documentation and resources

Datasheet

Technical Specifications

Parameters and characteristics commom to parts in this series

Specification	P260P-D1AS2AB10K	P260P Series

Actuator Diameter	-	6.35 mm
Actuator Diameter [diameter]	0.125 in	0.125 - 0.25 in
Actuator Diameter [diameter]	3.18 mm	3.18 - 3.2 mm
Actuator Length	-	0.472 - 1.102 in
Actuator Length	-	12 - 28 mm
Actuator Length [z]	0.63 in	0.63 - 0.787 in
Actuator Length [z]	16 mm	16 - 20 mm
Actuator Type	Slotted	Slotted, Flatted
Adjustment Type	Side Adjustment	Side Adjustment
Built in Switch	False	False
Bushing Thread	1/4-32	1/4-32, 3/8-32
Features	Sealed	Sealed
Number of Gangs	1	1 - 2
Number of Turns	1	1
Power (Watts)	0.5 W	0.5 - 250 W
Power (Watts)	0.5 W	0.25 - 0.5 W
Resistance (Ohms)	10k	10k, 1M, 25k
Resistance (Ohms)	-	2.5 - 500 kOhms
Resistive Material	Conductive Plastic	Conductive Plastic
Rotation	295 °	295 °
Size - Body	-	12.7 mm
Size - Body	-	12.7 mm
Size - Body	-	0.5 "
Size - Body [x]	12.7 mm	12.7 mm
Size - Body [x]	0.5 in	0.5 in
Size - Body [y]	12.7 mm	12.7 mm
Size - Body [y]	0.5 "	0.5 "
Taper	Linear	Linear, Logarithmic, Reverse Logarithmic
Termination Style	PC Pins	PC Pins
Tolerance	10 %	10 %

P260P Series

POT 50K OHM 1/2W PLASTIC LINEAR

Part	Power (Watts)	Power (Watts)	Tolerance	Actuator Length [z]	Actuator Length [z]	Termination Style	Taper	Number of Gangs	Actuator Diameter [diameter]	Actuator Diameter [diameter]	Adjustment Type	Bushing Thread	Number of Turns	Rotation	Features	Size - Body [x]	Size - Body [y]	Size - Body [y]	Size - Body [x]	Actuator Type	Resistance (Ohms)	Resistive Material	Resistance (Ohms)	Size - Body [y]	Size - Body [z]	Size - Body [z]	Actuator Diameter
TT Electronics/BI P260P-D1AS2CB50K	0.5 W	0.5 W	10 %	0.63 in	16 mm	PC Pins	Linear	1	0.126 in	3.2 mm	Side Adjustment	1/4-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Slotted	50 kOhms	Conductive Plastic
TT Electronics/BI P260P-D1AS2AB10K	0.5 W	0.5 W	10 %	0.63 in	16 mm	PC Pins	Linear	1	0.125 in	3.18 mm	Side Adjustment	1/4-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Slotted		Conductive Plastic	10k
TT Electronics/BI P260P-S1AS4CA10K	250 mW	0.25 W	10 %			PC Pins	Logarithmic	1	0.126 in	3.2 mm	Side Adjustment	1/4-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Slotted		Conductive Plastic	10k
TT Electronics/BI P260P-S1AS4CB50K	0.5 W	0.5 W	10 %			PC Pins	Linear	1	0.126 in	3.2 mm	Side Adjustment	1/4-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Slotted	50 kOhms	Conductive Plastic
TT Electronics/BI P260P-D1AS3CB100K	0.5 W	0.5 W	10 %	0.787 in	20 mm	PC Pins	Linear	1	0.125 in	3.18 mm	Side Adjustment	1/4-32	1	295 °		12.7 mm		0.5 "	0.5 in	Slotted	100 kOhms	Conductive Plastic		12.7 mm	12.7 mm	0.5 "
TT Electronics/BI P260P-D1BF20CC10K	250 mW	0.25 W	10 %	0.63 in	16 mm	PC Pins	Reverse Logarithmic	1	0.25 in		Side Adjustment	3/8-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Flatted		Conductive Plastic	10k				6.35 mm
TT Electronics/BI P260P-D2BF3CA50K	250 mW	0.25 W	10 %	0.787 in	20 mm	PC Pins	Logarithmic	2	0.25 in		Side Adjustment	3/8-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Flatted	50 kOhms	Conductive Plastic					6.35 mm
TT Electronics/BI P260P-S2BS3CB500K	0.5 W	0.5 W	10 %	0.787 in	20 mm	PC Pins	Linear	2	0.25 in		Side Adjustment	3/8-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Slotted	500 kOhms	Conductive Plastic					6.35 mm
TT Electronics/BI P260P-S2BS3CA10K	250 mW	0.25 W	10 %	0.787 in	20 mm	PC Pins	Logarithmic	2	0.25 in		Side Adjustment	3/8-32	1	295 °		12.7 mm		0.5 "	0.5 in	Slotted		Conductive Plastic	10k	12.7 mm	12.7 mm	0.5 "	6.35 mm
TT Electronics/BI P260P-D1AF3CB10K	0.5 W	0.5 W	10 %	0.787 in	20 mm	PC Pins	Linear	1	0.126 in	3.2 mm	Side Adjustment	1/4-32	1	295 °	Sealed	12.7 mm	12.7 mm	0.5 "	0.5 in	Flatted		Conductive Plastic	10k
