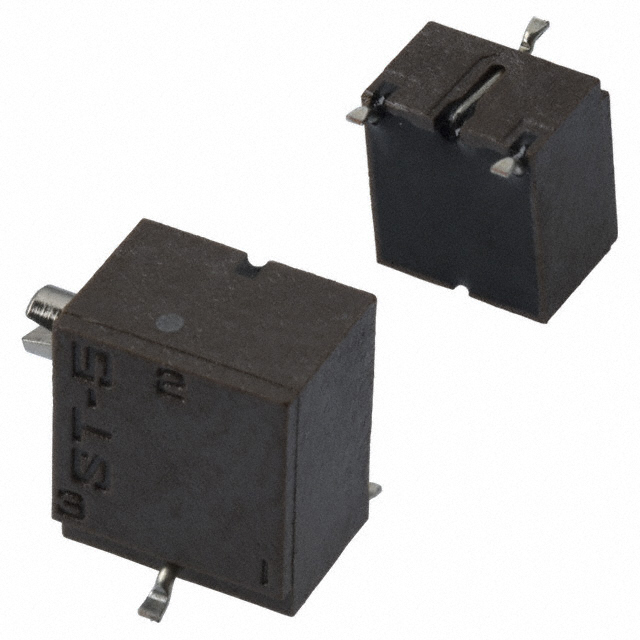

ST-5ETX205

Active

Nidec Components Corporation

TRIMMER 2M OHM 0.25W GW SIDE ADJ

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

ST-5ETX205

Active

Nidec Components Corporation

TRIMMER 2M OHM 0.25W GW SIDE ADJ

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	ST-5ETX205

Adjustment Type	Side Adjustment
Mounting Type	Surface Mount
Number of Turns	14
Power (Watts)	0.25 W
Power (Watts)	250 mW
Resistance	2 MOhms
Resistive Material	Cermet
Size / Dimension [x]	6 mm
Size / Dimension [x]	0.236 in
Size / Dimension [y]	4.3 mm
Size / Dimension [y]	0.169 in
Temperature Coefficient	100 ppm/°C
Termination Style	Gull Wing
Tolerance	10 %

ST5ETX Series

Part	Number of Turns	Tolerance	Power (Watts)	Power (Watts)	Mounting Type	Resistance	Adjustment Type	Termination Style	Resistive Material	Temperature Coefficient	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]
Nidec Components Corporation ST-5ETX103	14	10 %	0.25 W	250 mW	Surface Mount	10000 Ohms	Side Adjustment	Gull Wing	Cermet	100 ppm/°C	4.3 mm	6 mm	0.236 in	0.169 in
Nidec Components Corporation ST-5ETX105	14	10 %	0.25 W	250 mW	Surface Mount	1 MOhms	Side Adjustment	Gull Wing	Cermet	100 ppm/°C	4.3 mm	6 mm	0.236 in	0.169 in
Nidec Components Corporation ST-5ETX102	14	10 %	0.25 W	250 mW	Surface Mount	1000 Ohms	Side Adjustment	Gull Wing	Cermet	100 ppm/°C	4.3 mm	6 mm	0.236 in	0.169 in
Nidec Components Corporation ST-5ETX204	14	10 %	0.25 W	250 mW	Surface Mount	200000 Ohms	Side Adjustment	Gull Wing	Cermet	100 ppm/°C	4.3 mm	6 mm	0.236 in	0.169 in
Nidec Components Corporation ST-5ETX203	14	10 %	0.25 W	250 mW	Surface Mount	20 kOhms	Side Adjustment	Gull Wing	Cermet	100 ppm/°C	4.3 mm	6 mm	0.236 in	0.169 in
Nidec Components Corporation ST-5ETX504	14	10 %	0.25 W	250 mW	Surface Mount		Side Adjustment	Gull Wing	Cermet	100 ppm/°C	4.3 mm	6 mm	0.236 in	0.169 in
Nidec Components Corporation ST-5ETX205	14	10 %	0.25 W	250 mW	Surface Mount	2 MOhms	Side Adjustment	Gull Wing	Cermet	100 ppm/°C	4.3 mm	6 mm	0.236 in	0.169 in
Nidec Components Corporation ST-5ETX104	14	10 %	0.25 W	250 mW	Surface Mount	100 kOhms	Side Adjustment	Gull Wing	Cermet	100 ppm/°C	4.3 mm	6 mm	0.236 in	0.169 in
Nidec Components Corporation ST-5ETX101	14	10 %	0.25 W	250 mW	Surface Mount	100 Ohms	Side Adjustment	Gull Wing	Cermet	100 ppm/°C	4.3 mm	6 mm	0.236 in	0.169 in

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	500	$ 2.72

Description

General part information

ST5ETX Series

2 MOhms 0.25W, 1/4W Gull Wing Surface Mount Trimmer Potentiometer Cermet 14.0 Turn Side Adjustment
