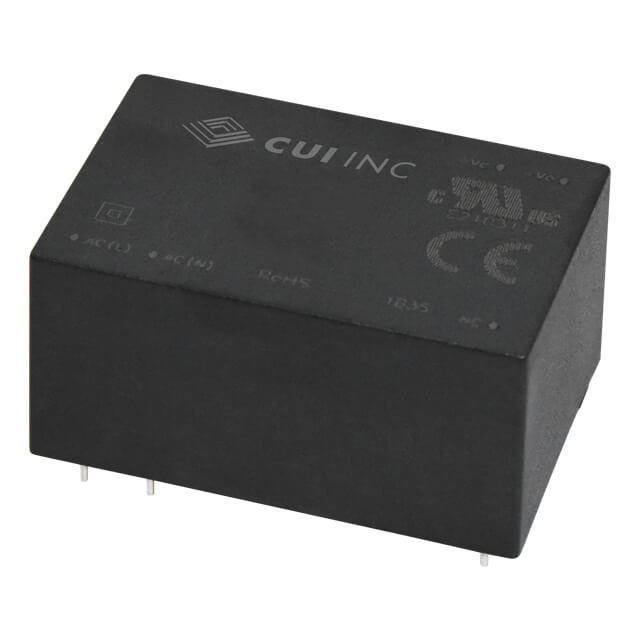

PSK-S3-9

Obsolete

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 9V 0.33A 3W 5-PIN TRAY

Deep-Dive with AI

Search across all available documentation for this part.

PSK-S3-9

Obsolete

CUI Inc.

AC/DC POWER SUPPLY SINGLE-OUT 9V 0.33A 3W 5-PIN TRAY

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	PSK-S3-9

Applications	ITE (Commercial)
Approval Agency	EN, CB Scheme, UL, IEC
Current - Output (Max)	330 mA
Efficiency	75 %
Features	Universal Input
Line Regulation	0.5 %
Load Regulation	1 %
Mounting Type	Through Hole
Number of Outputs	1
Package / Case	26-DIP Module, 5 Leads
Power (Watts)	3 W
Size / Dimension [x]	1.46 in
Size / Dimension [x]	37 mm
Size / Dimension [y]	24.5 mm
Size / Dimension [y]	0.96 in
Size / Dimension [z]	0.71 in
Size / Dimension [z]	18 mm
Standard Number	55024, 62368-1, 55032 Class A, 60950-1, 61000-3-2
Type	Enclosed
Voltage - Input [Max]	264 VAC, 370 VDC
Voltage - Input [Min]	100 V, 85 VAC
Voltage - Output 1	9 V

PSK-S3 Series

Part	Approval Agency	Voltage - Input [Max]	Voltage - Input [Min]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Standard Number	Voltage - Isolation	Applications	Current - Output 1	Efficiency	Power (Watts)	Features	Voltage - Output 1	Number of Outputs	Mounting Type	Type	AC Voltage - Input [Min]	AC Voltage - Input [Max]	DC Voltage - Input (Max) [Max]	Current - Output (Max) [Max]	Input Type	DC Voltage - Input (Min) [Min]	Package / Case	Load Regulation	Line Regulation	Current - Output (Max)
CUI Inc. PSK-S3-12-T	CB Scheme EN IEC UL	264 VAC 370 VDC	85 VAC 100 V	31.5 mm	26.8 mm	76 mm	1.24 in	1.06 in	2.99 in	55024 55032 Class A 60950-1 61000-3-2 62368-1	4000 V	ITE (Commercial)	250 mA	77 %	3 W	Universal Input	12 V	1	Chassis Mount	Enclosed
CUI Inc. PSK-S3-12-L	CB Scheme EN IEC UL	264 VAC 370 VDC	85 VAC 100 V	24.5 mm	18 mm	37 mm	0.96 in	0.71 in	1.46 in	55024 55032 Class A 60950-1 61000-3-2 62368-1	4000 V	ITE (Commercial)	250 mA	77 %	3 W	Universal Input	12 V	1	Chassis Mount	Enclosed
CUI Inc. PSK-S3-12-DIN	CB Scheme EN IEC UL			31.5 mm	31.4 mm	76 mm	1.24 in	1.24 "	2.99 in	55024 55032 Class A 60950-1 61000-3-2 62368-1	4000 V	ITE (Commercial)		77 %	3 W	Universal Input	12 V	1			85 VAC	264 VAC	370 V	250 mA	AC or DC	100 V
CUI Inc. PSK-S3-12	CB Scheme EN IEC UL	264 VAC 370 VDC	85 VAC 100 V	24.5 mm	18 mm	37 mm	0.96 in	0.71 in	1.46 in	55024 55032 Class A 60950-1 61000-3-2 62368-1		ITE (Commercial)		77 %	3 W	Universal Input	12 V	1	Through Hole	Enclosed				250 mA			26-DIP Module 5 Leads	1 %	0.5 %
CUI Inc. PSK-S3-9	CB Scheme EN IEC UL	264 VAC 370 VDC	85 VAC 100 V	24.5 mm	18 mm	37 mm	0.96 in	0.71 in	1.46 in	55024 55032 Class A 60950-1 61000-3-2 62368-1		ITE (Commercial)		75 %	3 W	Universal Input	9 V	1	Through Hole	Enclosed							26-DIP Module 5 Leads	1 %	0.5 %	330 mA
CUI Inc. PSK-S3-15	CB Scheme EN IEC UL	264 VAC 370 VDC	85 VAC 100 V	24.5 mm	18 mm	37 mm	0.96 in	0.71 in	1.46 in	55024 55032 Class A 60950-1 61000-3-2 62368-1		ITE (Commercial)		77 %	3 W	Universal Input	15 V	1	Through Hole	Enclosed				200 mA			26-DIP Module 5 Leads	1 %	0.5 %
CUI Inc. PSK-S3-3-DIN	CB Scheme EN IEC UL			31.5 mm	31.4 mm	76 mm	1.24 in	1.24 "	2.99 in	55024 55032 Class A 60950-1 61000-3-2 62368-1	4000 V	ITE (Commercial)		66 %	2.3 W	Universal Input	3.3 V	1			85 VAC	264 VAC	370 V	700 mA	AC or DC	100 V
CUI Inc. PSK-S3-24	CB Scheme EN IEC UL	264 VAC 370 VDC	85 VAC 100 V	24.5 mm	18 mm	37 mm	0.96 in	0.71 in	1.46 in	55024 55032 Class A 60950-1 61000-3-2 62368-1		ITE (Commercial)		78 %	3 W	Universal Input	24 V	1	Through Hole	Enclosed				125 mA			26-DIP Module 5 Leads	1 %	0.5 %
CUI Inc. PSK-S3-5	CB Scheme EN IEC UL	264 VAC 370 VDC	85 VAC 100 V	24.5 mm	18 mm	37 mm	0.96 in	0.71 in	1.46 in	55024 55032 Class A 60950-1 61000-3-2 62368-1		ITE (Commercial)		74 %	3 W	Universal Input	5 V	1	Through Hole	Enclosed				600 mA			26-DIP Module 5 Leads	1 %	0.5 %
CUI Inc. PSK-S3-3-T	CB Scheme EN IEC UL	264 VAC 370 VDC	85 VAC 100 V	31.5 mm	26.8 mm	76 mm	1.24 in	1.06 in	2.99 in	55024 55032 Class A 60950-1 61000-3-2 62368-1	4000 V	ITE (Commercial)	700 mA	66 %	2.3 W	Universal Input	3.3 V	1	Chassis Mount	Enclosed

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Arrow	N/A	1	$ 3.01

Description

General part information

PSK-S3 Series

Enclosed AC DC Converters 1 Output 9V 330mA 85 ~ 264 VAC, 100 ~ 370 VDC Input
