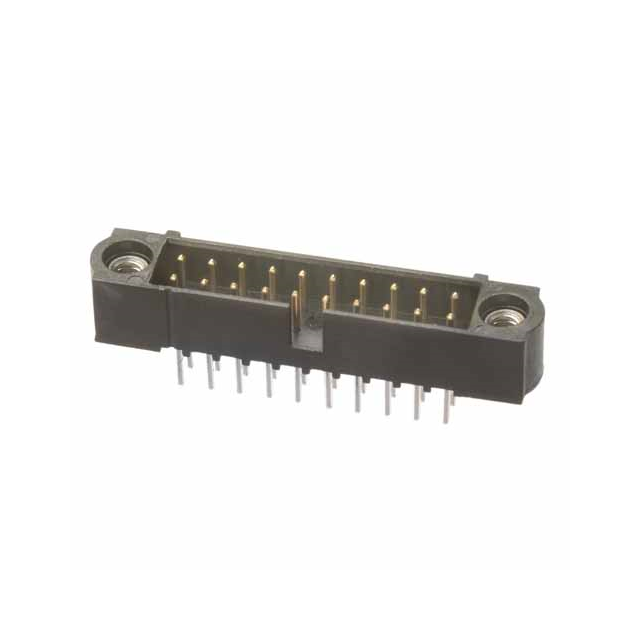

8+8 POS. MALE DIL VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsM80-001 M80, M83 Series Spec Sheet +2

M80-5011605

Active

Harwin Inc.

8+8 POS. MALE DIL VERTICAL THROUGHBOARD CONN. JACKSCREWS ROHS COMPLIANT: YES

Deep-Dive with AI

DocumentsM80-001 M80, M83 Series Spec Sheet +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	M80-5011605

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Gold
Contact Finish Thickness - Mating	29.5 Áin
Contact Finish Thickness - Mating	0.75 Ám
Contact Finish Thickness - Post	29.5 µin
Contact Finish Thickness - Post	0.75 µm
Contact Length - Post	0.173 in
Contact Length - Post	4.4 mm
Contact Material	Phosphor Bronze
Contact Shape	Circular
Contact Type	Male Pin
Current Rating (Amps)	2.2 A
Features	Keying Slot, Mating Flange
Insulation Color	Black
Insulation Height	5.6 mm
Insulation Height	0.22 in
Insulation Material	Polyphenylene Sulfide (PPS), Glass Filled
Mated Stacking Heights	7.3 mm, 7.8 mm
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole
Number of Positions	16
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating [x]	0.079 in
Pitch - Mating [x]	2 mm
Row Spacing - Mating	0.079 in
Row Spacing - Mating	2 mm
Shrouding	Shrouded - 4 Wall
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	800 VAC

M80-501 Series

Part	Mounting Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Number of Positions Loaded	Number of Positions	Shrouding	Style	Mated Stacking Heights	Connector Type	Contact Length - Post	Contact Length - Post	Operating Temperature [Min]	Operating Temperature [Max]	Current Rating (Amps)	Insulation Color	Voltage Rating	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Contact Material	Contact Type	Termination	Contact Shape	Insulation Height	Insulation Height	Material Flammability Rating	Number of Rows	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Material	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Features	Contact Finish Thickness - Post	Number of Positions	Contact Finish Thickness - Post
Harwin Inc. M80-5015042	Through Hole	29.5 Áin	0.75 Ám	Tin	All	50	Shrouded - 4 Wall	Board to Board Cable	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Header	0.173 in	4.4 mm	-55 °C	125 °C	2.2 A	Black	120 VDC	0.079 in	2 mm	Gold	Phosphor Bronze	Male Pin	Solder	Circular	5.6 mm	0.22 in	UL94 V-0	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	3 µm	118.1 µin	Keying Slot Mating Flange
Harwin Inc. M80-5011042	Through Hole	29.5 Áin	0.75 Ám	Tin	All	10	Shrouded - 4 Wall	Board to Board Cable	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Header	0.173 in	4.4 mm	-55 °C	125 °C	2.2 A	Black	120 VDC	0.079 in	2 mm	Gold	Phosphor Bronze	Male Pin	Solder	Circular	5.6 mm	0.22 in	UL94 V-0	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	3 µm	118.1 µin	Keying Slot Mating Flange
Harwin Inc. M80-5010805	Through Hole	29.5 Áin	0.75 Ám	Gold	All	8	Shrouded - 4 Wall	Board to Board Cable	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Header	0.173 in	4.4 mm	-55 °C	125 °C	2.2 A	Black	120 VDC	0.079 in	2 mm	Gold	Phosphor Bronze	Male Pin	Solder	Circular	5.6 mm	0.22 in	UL94 V-0	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	29.5 Áin		Keying Slot Mating Flange	0.75 Ám
Harwin Inc. M80-5010822	Through Hole	29.5 Áin	0.75 Ám	Tin-Lead	All	8	Shrouded - 4 Wall	Board to Board Cable	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Header	0.173 in	4.4 mm	-55 °C	125 °C	2.2 A	Black	120 VDC	0.079 in	2 mm	Gold	Phosphor Bronze	Male Pin	Solder	Circular	5.6 mm	0.22 in	UL94 V-0	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	3 µm	118.1 µin	Keying Slot Mating Flange
Harwin Inc. M80-5010642	Through Hole	29.5 Áin	0.75 Ám	Tin	All	6	Shrouded - 4 Wall	Board to Board Cable	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Header	0.173 in	4.4 mm	-55 °C	125 °C	2.2 A	Black	120 VDC	0.079 in	2 mm	Gold	Phosphor Bronze	Male Pin	Solder	Circular	5.6 mm	0.22 in	UL94 V-0	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	3 µm	118.1 µin	Keying Slot Mating Flange
Harwin Inc. M80-5011842	Through Hole	29.5 Áin	0.75 Ám	Tin	All	18	Shrouded - 4 Wall	Board to Board Cable	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Header	0.173 in	4.4 mm	-55 °C	125 °C	2.2 A	Black	120 VDC	0.079 in	2 mm	Gold	Phosphor Bronze	Male Pin	Solder	Circular	5.6 mm	0.22 in	UL94 V-0	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	3 µm	118.1 µin	Keying Slot Mating Flange
Harwin Inc. M80-5010622	Through Hole	29.5 Áin	0.75 Ám	Tin-Lead	All	6	Shrouded - 4 Wall	Board to Board Cable	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Header	0.173 in	4.4 mm	-55 °C	125 °C	2.2 A	Black	120 VDC	0.079 in	2 mm	Gold	Phosphor Bronze	Male Pin	Solder	Circular	5.6 mm	0.22 in	UL94 V-0	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	3 µm	118.1 µin	Keying Slot Mating Flange
Harwin Inc. M80-5014242	Through Hole	29.5 Áin	0.75 Ám	Tin	All	42	Shrouded - 4 Wall	Board to Board Cable	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Header	0.173 in	4.4 mm	-55 °C	125 °C	2.2 A	Black	120 VDC	0.079 in	2 mm	Gold	Phosphor Bronze	Male Pin	Solder	Circular	5.6 mm	0.22 in	UL94 V-0	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	3 µm	118.1 µin	Keying Slot Mating Flange
Harwin Inc. M80-5011622	Through Hole	29.5 Áin	0.75 Ám	Tin-Lead	All		Shrouded - 4 Wall	Board to Board Cable	7.3 mm 7.7 mm 9.75 mm 10.75 mm 13.35 mm 14.75 mm	Header	0.173 in	4.4 mm	-55 °C	125 °C	2.2 A	Black	120 VDC	0.079 in	2 mm	Gold	Phosphor Bronze	Male Pin	Solder	Circular	5.6 mm	0.22 in	UL94 V-0	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	3 µm	118.1 µin	Keying Slot Mating Flange		16
Harwin Inc. M80-5011605	Through Hole	29.5 Áin	0.75 Ám	Gold	All		Shrouded - 4 Wall	Board to Board Cable	7.3 mm 7.8 mm	Header	0.173 in	4.4 mm	-55 °C	125 °C	2.2 A	Black	800 VAC	0.079 in	2 mm	Gold	Phosphor Bronze	Male Pin	Solder	Circular	5.6 mm	0.22 in	UL94 V-0	2	0.079 in	2 mm	Polyphenylene Sulfide (PPS) Glass Filled	0.75 µm		Keying Slot Mating Flange		16	29.5 µin

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tube	1000	$ 7.97
Newark	Each	1000	$ 8.49
		2500	$ 8.08

Description

General part information

M80-501 Series

Connector Header Through Hole 16 position 0.079" (2.00mm)
