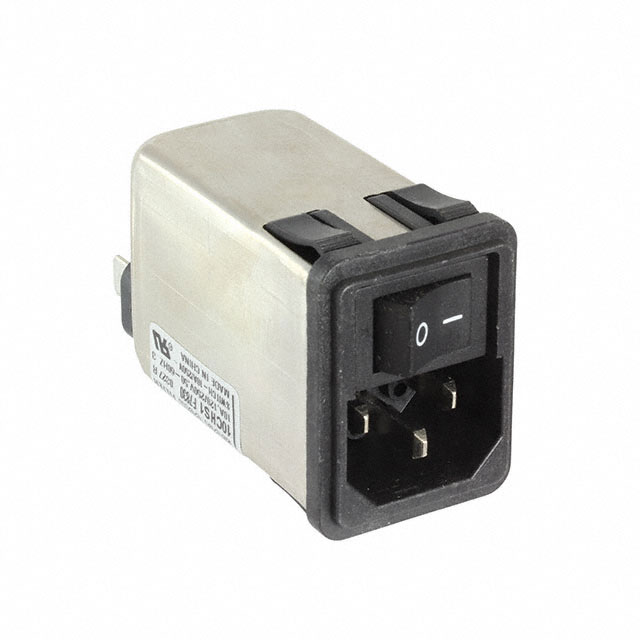

10CHS1

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Search across all available documentation for this part.

Active

TE Connectivity Corcom Filters

PWR ENT MOD RCPT IEC320-C14 PNL

Technical Specifications

Parameters and characteristics for this part

Specification	10CHS1

Accomodates a Fuse	False
Connector Style	IEC 320-C14
Connector Type	Receptacle, Male Blades - Module
Current Rating - Appliance Inlet	10 A
Current Rating - Filter	10 A
Filter Type	Filtered (EMI, RFI) - Commercial
Mounting Type	Panel Mount, Snap-In
Panel Thickness [Max]	0.098 in
Panel Thickness [Max]	2.49 mm
Panel Thickness [Min]	0.79 mm
Panel Thickness [Min]	0.031 "
Switch Features	Switch On-Off
Termination	0.25 in
Termination	6.3 mm
Termination	Quick Connect
Voltage Rating - Appliance Inlet [Max]	250 VAC
Voltage Rating - Appliance Inlet [Min]	120 VAC

PWR ENT MOD RCPT IEC320-C14 PNL

Part	Filter Type	Accomodates a Fuse	Current Rating - Appliance Inlet	Connector Style	Termination	Termination	Termination	Connector Type	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Panel Thickness [Min]	Mounting Type	Current Rating - Filter	Switch Features	Voltage Rating - Appliance Inlet [Max]	Voltage Rating - Appliance Inlet [Min]
TE Connectivity Corcom Filters 10CHS1	Filtered (EMI, RFI) - Commercial		10 A	IEC 320-C14	0.25 in	6.3 mm	Quick Connect	Receptacle, Male Blades - Module	0.098 in	2.49 mm	0.79 mm	0.031 "	Panel Mount, Snap-In	10 A	Switch On-Off	250 VAC	120 VAC

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Power Entry Connector Receptacle, Male Blades - Module IEC 320-C14 Panel Mount, Snap-In

Technical documentation and resources
