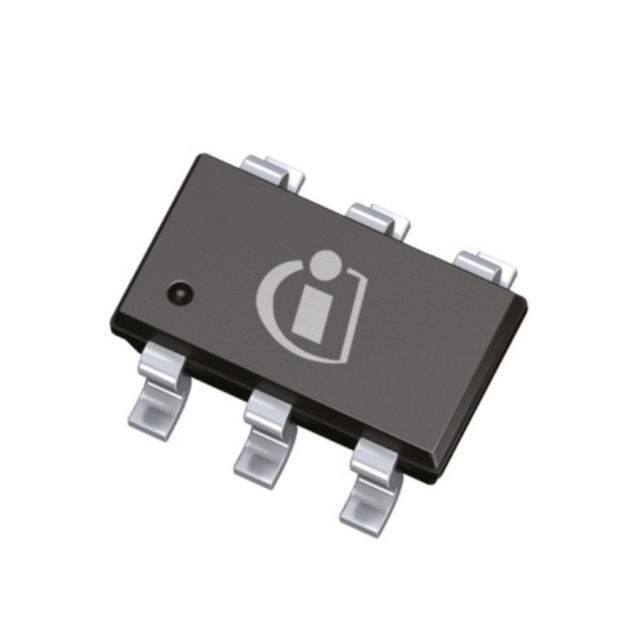

TLE4966GHTSA1

Active

Infineon Technologies

XENSIV™ - TLE4966G DOUBLE HALL-EFFECT SENSOR DESIGNED SPECIFICALLY FOR HIGHLY ACCURATE AUTOMOTIVE APPLICATIONS

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

TLE4966GHTSA1

Active

Infineon Technologies

XENSIV™ - TLE4966G DOUBLE HALL-EFFECT SENSOR DESIGNED SPECIFICALLY FOR HIGHLY ACCURATE AUTOMOTIVE APPLICATIONS

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	TLE4966GHTSA1

Current - Output (Max) [Max]	10 mA
Current - Supply (Max) [Max]	7 mA
Features	Temperature Compensated
Function	Bipolar Switch
Mounting Type	Surface Mount
Operating Temperature [Max]	150 °C
Operating Temperature [Min]	-40 °C
Package / Case	TSOT-23-6, SOT-23-6 Thin
Polarization	South Pole, North Pole
Sensing Range [Max]	10 mT
Sensing Range [Min]	-10 mT
Supplier Device Package	PG-TSOP6-6-9
Technology	Hall Effect
Test Condition	25 °C
Voltage - Supply [Max]	18 V
Voltage - Supply [Min]	2.7 V

TLE4966 Series

Part	Current - Output (Max) [Max]	Current - Supply (Max) [Max]	Mounting Type	Voltage - Supply [Max]	Voltage - Supply [Min]	Test Condition	Features	Operating Temperature [Max]	Operating Temperature [Min]	Output Type	Grade	Qualification	Package / Case	Supplier Device Package	Function	Sensing Range [Min]	Sensing Range [Max]	Polarization	Technology	Sensing Range
Infineon Technologies TLE4966KHTSA1	10 mA	7 mA	Surface Mount	18 V	2.7 V	25 °C	Temperature Compensated	150 °C	-40 °C	Open Collector	Automotive	AEC-Q100	SOT-23-6 Thin TSOT-23-6	PG-TSOP6-6	Bipolar Switch	-10 mT	10 mT	North Pole South Pole	Hall Effect
Infineon Technologies TLE4966GHTSA1	10 mA	7 mA	Surface Mount	18 V	2.7 V	25 °C	Temperature Compensated	150 °C	-40 °C				SOT-23-6 Thin TSOT-23-6	PG-TSOP6-6-9	Bipolar Switch	-10 mT	10 mT	North Pole South Pole	Hall Effect
Infineon Technologies TLE4966V1GHTSA1	10 mA		Surface Mount	32 VDC	3.5 V	25 °C	Temperature Compensated	150 °C	-40 °C		Automotive	AEC-Q100	SOT-23-6 Thin TSOT-23-6	PG-TSOP6-6-9	Latch			Either	Hall Effect	-4.1 mT 4.1 mT

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 1.01
		10	$ 0.78
		25	$ 0.67
		50	$ 0.64
		100	$ 0.55
		500	$ 0.48
		1000	$ 0.42
	Digi-Reel®	1	$ 1.01
		10	$ 0.78
		25	$ 0.67
		50	$ 0.64
		100	$ 0.55
		500	$ 0.48
		1000	$ 0.42
	Tape & Reel (TR)	3000	$ 0.30

Description

General part information

TLE4966 Series

The TLE4966G is an integrated circuit double Hall-effect sensor designed specifically for highly accurate applications in the automotive sector. Precise magnetic switching points and high temperature stability are achieved by active compensation circuits and chopper techniques on chip. They provide a speed signal at Q2 for every magnetic pole pair and a direction information at Q1, which is provided before the speed signal.
