AM3T-1205S-VZ

Unknown

aimtec

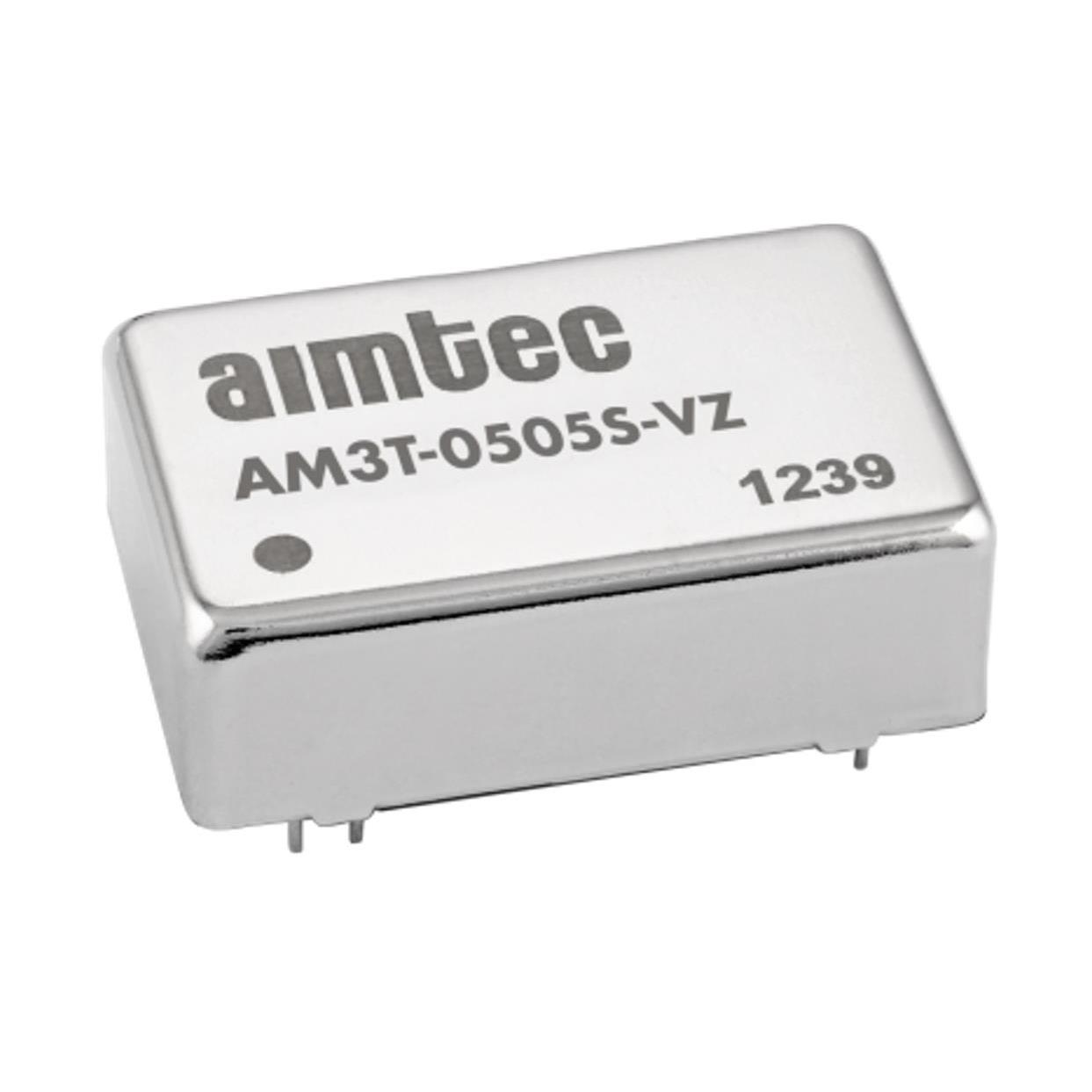

DC DC CONVERTER 5V 3W

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

AM3T-1205S-VZ

Unknown

aimtec

DC DC CONVERTER 5V 3W

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AM3T-1205S-VZ

Applications	ITE (Commercial)
Current - Output (Max) [Max]	600 mA
Efficiency	76 %
Mounting Type	Through Hole
Number of Outputs	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-40 °C
Package / Case	24-DIP Module
Package / Case	12 Leads
Power (Watts)	3 W
Size / Dimension [x]	31.8 mm
Size / Dimension [x]	1.25 "
Size / Dimension [y]	0.8 in
Size / Dimension [y]	20.3 mm
Size / Dimension [z]	0.4 "
Size / Dimension [z]	10.2 mm
Type	Isolated Module
Voltage - Input (Max) [Max]	18 V
Voltage - Input (Min) [Min]	9 V
Voltage - Isolation	1.5 kV
Voltage - Output 1	5 V

AM3T Series

Part	Voltage - Input (Min) [Min]	Applications	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Type	Current - Output (Max) [Max]	Number of Outputs	Efficiency	Package / Case	Mounting Type	Voltage - Isolation	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Output 1	Voltage - Input (Max) [Max]	Voltage - Output 2	Voltage - Output 1 [Max]	Voltage - Output 1 [Min]	Current - Output (Max)	Current - Output (Max)	Size / Dimension [z]	Size / Dimension [y]	Current - Output (Max)	Package / Case
aimtec AM3T-1205SZ	9 V	ITE (Commercial)	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	600 mA	1	76 %	24-DIP Module	Through Hole	1.5 kV	85 °C	-40 °C	3 W	5 V	18 V
aimtec AM3T-2415DZ	18 V	ITE (Commercial)	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module		2	80 %	24-DIP Module	Through Hole	1.5 kV	85 °C	-40 °C	3 W		36 V	-15 V	15 V	-15 V	100 mA	100 mA
aimtec AM3T-2405SH30-PNZ	18 V	ITE (Commercial)	31.6 mm	0.4 "	1.24 in		0.8 in		Isolated Module	600 mA	1	81 %	24-DIP Module 10 Leads	Through Hole	3000 V	85 °C	-40 °C	3 W	5 V	36 V						10.2 mm	20.3 mm
aimtec AM3T-2412D-PNZ	18 V	ITE (Commercial)	31.6 mm	0.4 "	1.24 in		0.8 in		Isolated Module		2	84 %	24-DIP Module	Through Hole	1.5 kV	85 °C	-40 °C	3 W		36 V	-12 V	12 V	-12 V	125 mA		10.2 mm	20.3 mm	125 mA
aimtec AM3T-2412SH35Z	18 V	ITE (Commercial)	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	250 mA	1		24-DIP Module	Through Hole	3.5 kV	85 °C	-40 °C	3 W	12 V	36 V
aimtec AM3T-2415DH35Z	18 V	ITE (Commercial)	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module		2	80 %	24-DIP Module	Through Hole	3.5 kV	85 °C	-40 °C	3 W		36 V	-15 V	15 V	-15 V	100 mA	100 mA
aimtec AM3T-1205S-VZ	9 V	ITE (Commercial)	31.8 mm	0.4 "	1.25 "	10.2 mm	0.8 in	20.3 mm	Isolated Module	600 mA	1	76 %	24-DIP Module	Through Hole	1.5 kV	85 °C	-40 °C	3 W	5 V	18 V									12 Leads
aimtec AM3T-2412S-NZ	18 V	ITE (Commercial)	10.16 mm	31.8 mm	10.2 mm		20.3 mm		Isolated Module	250 mA	1	86 %	24-DIP Module	Through Hole	1.5 kV	85 °C	-40 °C	3 W	12 V	36 V						1.25 "	20.32 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	10	$ 7.25
		60	$ 6.68

Description

General part information

AM3T Series

Isolated Module DC DC Converter 1 Output 5V 600mA 9V - 18V Input
