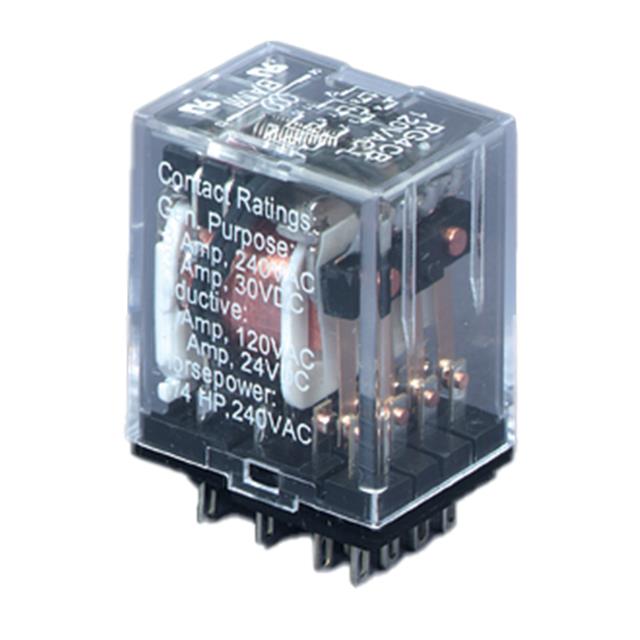

RG4CB-240VAC

Active

R-K Electronics, Inc.

RELAY GEN PURPOSE 4PDT 3A 240V

Search across all available documentation for this part.

Active

R-K Electronics, Inc.

RELAY GEN PURPOSE 4PDT 3A 240V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

General Purpose Relay 4PDT (4 Form C) 240VAC Coil Socketable

Technical documentation and resources

Parameters and characteristics commom to parts in this series

RELAY GEN PURPOSE 4PDT 3A 120V

Part	Features	Switching Voltage	Termination Style	Coil Voltage	Operating Temperature [Min]	Operating Temperature [Max]	Contact Form	Coil Type	Operate Time	Relay Type	Contact Rating (Current)	Must Release Voltage	Must Operate Voltage	Contact Material	Mounting Type
R-K Electronics, Inc. RG4CB-120VAC-L	Lighted Indicator	30 VDC, 240 VAC	Plug In	120 VAC	-10 °C	40 °C	4PDT (4 Form C)	Non Latching	20 ms	General Purpose	3 A	36 VAC	90 VAC	Silver (Ag)	Socketable
R-K Electronics, Inc. RG4CB-24VDC-L	Lighted Indicator	30 VDC, 240 VAC	Plug In	24 VDC	-10 °C	40 °C	4PDT (4 Form C)	Non Latching	20 ms	General Purpose	3 A	2.4 VDC	18 VDC	Silver (Ag)	Socketable
R-K Electronics, Inc. RG4CB-120VAC		30 VDC, 240 VAC	Plug In	120 VAC	-10 °C	40 °C	4PDT (4 Form C)	Non Latching	20 ms	General Purpose	3 A	36 VAC	90 VAC	Silver (Ag)	Socketable
R-K Electronics, Inc. RG4CB-240VAC		30 VDC, 240 VAC	Plug In	240 VAC	-10 °C	40 °C	4PDT (4 Form C)	Non Latching	20 ms	General Purpose	3 A	72 VAC/DC	180 VAC	Silver (Ag)	Socketable
R-K Electronics, Inc. RG4CB-24VAC		30 VDC, 240 VAC	Plug In	24 VAC	-10 °C	40 °C	4PDT (4 Form C)	Non Latching	20 ms	General Purpose	3 A	7.2 VAC	18 VAC	Silver (Ag)	Socketable
R-K Electronics, Inc. RG4CB-24VAC-L	Lighted Indicator	30 VDC, 240 VAC	Plug In	24 VAC	-10 °C	40 °C	4PDT (4 Form C)	Non Latching	20 ms	General Purpose	3 A	7.2 VAC	18 VAC	Silver (Ag)	Socketable
R-K Electronics, Inc. RG4CB-24VDC		30 VDC, 240 VAC	Plug In	24 VDC	-10 °C	40 °C	4PDT (4 Form C)	Non Latching	20 ms	General Purpose	3 A	2.4 VDC	18 VDC	Silver (Ag)	Socketable
