2701691

Active

Phoenix Contact

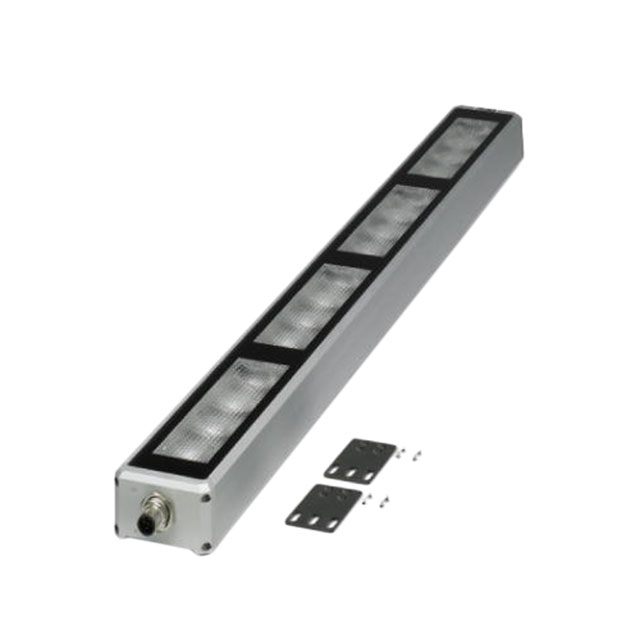

LED MOD COOL WHT RECT 5000K

Search across all available documentation for this part.

Active

Phoenix Contact

LED MOD COOL WHT RECT 5000K

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

LED Lighting COBs Engines Modules LED Module - White, Cool Rectangle

Technical documentation and resources

No documents available

Parameters and characteristics commom to parts in this series

Specification	2701691	27016 Series

CCT (K)	5000 K	5000 K
Color	Cool, White	Cool, White
Configuration	Rectangle	Rectangle
CRI (Color Rendering Index)	80	80
Current - Test	920 mA	460 - 920 mA
Features	With Connector	With Connector
Height [z]	35 mm	35 mm
Lens Type	Flat	Flat
Lumens/Watt @ Current - Test	64 lm/W	18 - 64 lm/W
Luminous Flux @ Current/Temperature	1410 lm	450 - 1410 lm
Size / Dimension [x]	695 mm	365 - 695 mm
Size / Dimension [y]	60 mm	60 mm
Temperature - Test	55 °C	55 °C
Type	LED Module	LED Module
Viewing Angle	50 °	50 - 100 °
Voltage - Forward (Vf) (Typ)	24 V	24 V

LED MOD COOL WHT RECT 5000K

Part	Lens Type	Type	Viewing Angle	Lumens/Watt @ Current - Test	Configuration	CCT (K)	CRI (Color Rendering Index)	Luminous Flux @ Current/Temperature	Color	Temperature - Test	Current - Test	Height [z]	Voltage - Forward (Vf) (Typ)	Features	Size / Dimension [x]	Size / Dimension [y]
Phoenix Contact 2701690	Flat	LED Module	50 °	41 lm/W	Rectangle	5000 K	80	450 lm	Cool, White	55 °C	460 mA	35 mm	24 V	With Connector	365 mm	60 mm
Phoenix Contact 2701691	Flat	LED Module	50 °	64 lm/W	Rectangle	5000 K	80	1410 lm	Cool, White	55 °C	920 mA	35 mm	24 V	With Connector	695 mm	60 mm
Phoenix Contact 2701693	Flat	LED Module	100 °	18 lm/W	Rectangle	5000 K	80	930 lm	Cool, White	55 °C	750 mA	35 mm	24 V	With Connector	365 mm	60 mm
