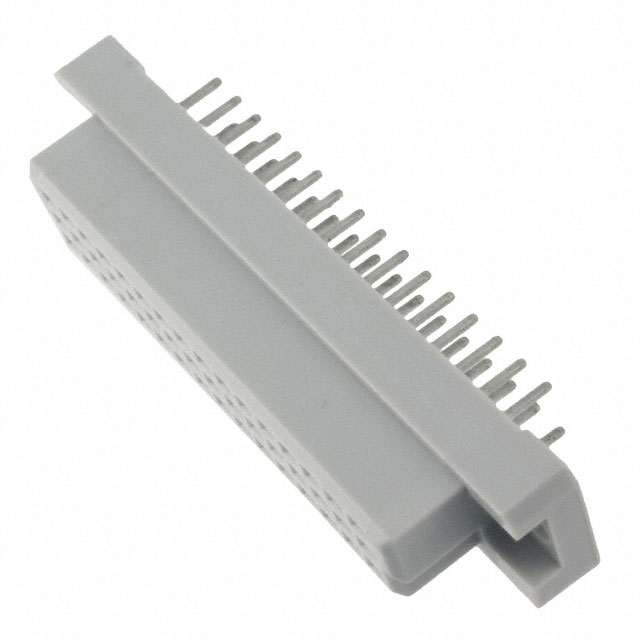

DIN-032CSB-S1L-HM
Active3M (TC)
80001221979 DIN-032CSB-S1L-HM=DIN/32P/C-SKT/A, B&C/3.75MM ST/RET/10PDNI/RO
Deep-Dive with AI
Search across all available documentation for this part.
DIN-032CSB-S1L-HM
Active3M (TC)
80001221979 DIN-032CSB-S1L-HM=DIN/32P/C-SKT/A, B&C/3.75MM ST/RET/10PDNI/RO
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DIN-032CSB-S1L-HM |
|---|---|
| Connector Type | Receptacle, Female Sockets |
| Contact Finish | Gold |
| Contact Finish Thickness | 3 Áin |
| Contact Finish Thickness | 0.076 Ám |
| Current Rating (Amps) | 3 A |
| Material - Insulation | Glass Filled, Polyester, Polybutylene Terephthalate (PBT) |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Through Hole |
| Number of Positions | 48 |
| Number of Positions Loaded | 32 |
| Number of Rows | 3 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -55 °C |
| Pitch [x] | 2.54 mm |
| Pitch [x] | 0.1 in |
| Style | C/2 |
| Style | 1/2 C |
| Termination | Solder |
DIN-032C Series
| Part | Connector Type | Material - Insulation | Material Flammability Rating | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Min] | Operating Temperature [Max] | Number of Rows | Mounting Type | Number of Positions Loaded | Termination | Contact Finish | Pitch [x] | Pitch [x] | Current Rating (Amps) | Style | Style | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | Receptacle Female Sockets | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | 3 Áin | 0.076 Ám | -55 °C | 125 °C | 3 | Through Hole | 32 | Press-Fit | Gold | 2.54 mm | 0.1 in | 3 A | C/2 | 1/2 C | 48 |
3M (TC) | Receptacle Female Sockets | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | 30 Áin | 0.76 Ám | -55 °C | 125 °C | 3 | Through Hole | 32 | Solder | Gold | 2.54 mm | 0.1 in | 3 A | C/2 | 1/2 C | 48 |
3M (TC) | Receptacle Female Sockets | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | 3 Áin | 0.076 Ám | -55 °C | 125 °C | 3 | Through Hole | 32 | Press-Fit | Gold | 2.54 mm | 0.1 in | 3 A | C/2 | 1/2 C | 48 |
3M (TC) | Male Pins Plug | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 3 Áin | 0.076 Ám | -55 °C | 125 °C | 3 | Through Hole Right Angle | 32 | Solder | Gold | 2.54 mm | 0.1 in | 3 A | C/2 | 1/2 C | 48 |
3M (TC) | Receptacle Female Sockets | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | 3 Áin | 0.076 Ám | -55 °C | 125 °C | 3 | Through Hole | 32 | Solder | Gold | 2.54 mm | 0.1 in | 3 A | C/2 | 1/2 C | 48 |
3M (TC) | Male Pins Plug | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 3 Áin | 0.076 Ám | -55 °C | 125 °C | 3 | Through Hole Right Angle | 32 | Solder | Gold | 2.54 mm | 0.1 in | 3 A | C/2 | 1/2 C | 48 |
3M (TC) | Receptacle Female Sockets | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | 3 Áin | 0.076 Ám | -55 °C | 125 °C | 3 | Through Hole | 32 | Solder | Gold | 2.54 mm | 0.1 in | 3 A | C/2 | 1/2 C | 48 |
3M (TC) | Receptacle Female Sockets | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | 3 Áin | 0.076 Ám | -55 °C | 125 °C | 3 | Through Hole | 32 | Solder | Gold | 2.54 mm | 0.1 in | 3 A | C/2 | 1/2 C | 48 |
3M (TC) | Receptacle Female Sockets | Glass Filled Polybutylene Terephthalate (PBT) Polyester | UL94 V-0 | 30 Áin | 0.76 Ám | -55 °C | 125 °C | 3 | Through Hole | 32 | Press-Fit | Gold | 2.54 mm | 0.1 in | 3 A | C/2 | 1/2 C | 48 |
3M (TC) | Male Pins Plug | Polybutylene Terephthalate (PBT) Glass Filled | UL94 V-0 | 3 Áin | 0.076 Ám | -55 °C | 125 °C | 3 | Through Hole Right Angle | 32 | Solder | Gold | 2.54 mm | 0.1 in | 3 A | C/2 | 1/2 C | 48 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
DIN-032C Series
48 Position Din Connector Receptacle, Female Sockets Gold Through Hole
