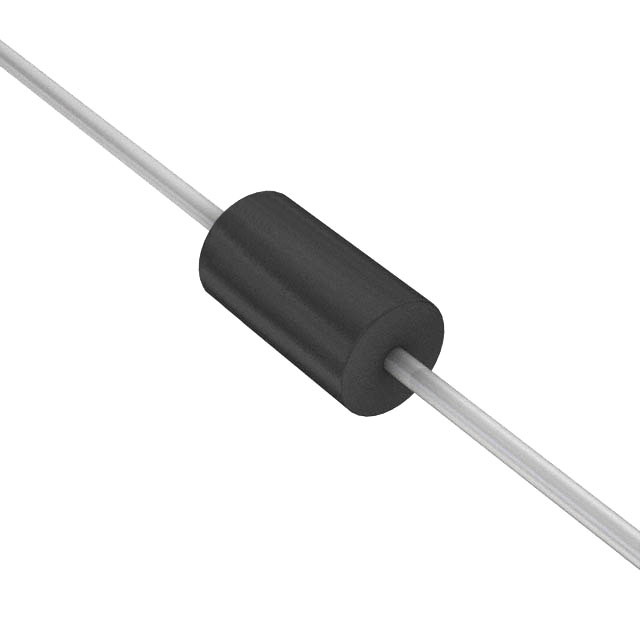

1.5KE12CA-E3/54

Active

Vishay General Semiconductor - Diodes Division

TVS DIODE 10.2VWM 16.7VC 1.5KE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

1.5KE12CA-E3/54

Active

Vishay General Semiconductor - Diodes Division

TVS DIODE 10.2VWM 16.7VC 1.5KE

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Cut Tape (CT)	1	$ 0.79
		10	$ 0.68
		100	$ 0.47
		500	$ 0.40
	Tape & Reel (TR)	1400	$ 0.34
		2800	$ 0.31
		4200	$ 0.30
		7000	$ 0.28
		9800	$ 0.27
		14000	$ 0.26
		35000	$ 0.26

Description

General part information

1.5KE12 Series

16.7V Clamp 89.8A Ipp Tvs Diode Through Hole 1.5KE

Documents

Technical documentation and resources

Datasheet

Specification	1.5KE12CA-E3/54	1.5KE12 Series

Applications	General Purpose	General Purpose, Telecom
Bidirectional Channels [custom]	1	1
Current - Peak Pulse (10/1000µs)	89.8 A	86.7 - 94 A
Grade	-	Automotive
Mounting Type	Through Hole	Through Hole
Operating Temperature [Max]	175 ░C	175 ░C
Operating Temperature [Min]	-55 °C	-55 °C
Package / Case	Axial, DO-27, DO-201AA	Axial, DO-27, DO-201AA
Power - Peak Pulse	1.5 kW	1.5 kW
Power - Peak Pulse	1500 W	1500 W
Power Line Protection	False	False
Qualification	-	AEC-Q101
Supplier Device Package	1.5KE	1.5KE
Type	Zener	Zener
Unidirectional Channels	-	1
Voltage - Breakdown (Min) [Min]	11.4 V	10.8 - 11.4 V
Voltage - Clamping (Max) @ Ipp [Max]	16.7 V	16.7 - 17.3 V
Voltage - Reverse Standoff (Typ)	10.2 V	9.72 - 10.2 V

Part	Current - Peak Pulse (10/1000µs)	Mounting Type	Package / Case	Bidirectional Channels [custom]	Applications	Type	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Breakdown (Min) [Min]	Power - Peak Pulse	Power - Peak Pulse	Supplier Device Package	Voltage - Clamping (Max) @ Ipp [Max]	Voltage - Reverse Standoff (Typ)	Qualification	Grade	Unidirectional Channels [custom]
Vishay General Semiconductor - Diodes Division 1.5KE12CA-E3/54	89.8 A	Through Hole	Axial, DO-201AA, DO-27	1	General Purpose	Zener	-55 °C	175 ░C	11.4 V	1.5 kW	1500 W	1.5KE	16.7 V	10.2 V
Vishay General Semiconductor - Diodes Division 1.5KE12CAHE3_A/C	89.8 A	Through Hole	Axial, DO-201AA, DO-27	1		Zener	-55 °C	175 ░C	11.4 V	1.5 kW	1500 W	1.5KE	16.7 V	10.2 V	AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division 1.5KE12CAHE3/51	89.8 A	Through Hole	Axial, DO-201AA, DO-27	1		Zener	-55 °C	175 ░C	11.4 V	1.5 kW	1500 W	1.5KE	16.7 V	10.2 V	AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division 1.5KE12HE3/73	86.7 A	Through Hole	Axial, DO-201AA, DO-27			Zener	-55 °C	175 ░C	10.8 V	1.5 kW	1500 W	1.5KE	17.3 V	9.72 V	AEC-Q101	Automotive	1
Vishay General Semiconductor - Diodes Division 1.5KE12CA-E3/73	89.8 A	Through Hole	Axial, DO-201AA, DO-27	1	General Purpose	Zener	-55 °C	175 ░C	11.4 V	1.5 kW	1500 W	1.5KE	16.7 V	10.2 V
Vishay General Semiconductor - Diodes Division 1.5KE12A-E3/51	89.8 A	Through Hole	Axial, DO-201AA, DO-27		General Purpose	Zener	-55 °C	175 ░C	11.4 V	1.5 kW	1500 W	1.5KE	16.7 V	10.2 V			1
Vishay General Semiconductor - Diodes Division 1.5KE12-E3/73	86.7 A	Through Hole	Axial, DO-201AA, DO-27		General Purpose	Zener	-55 °C	175 ░C	10.8 V	1.5 kW	1500 W	1.5KE	17.3 V	9.72 V			1
Vishay General Semiconductor - Diodes Division 1.5KE12CHE3/54	86.7 A	Through Hole	Axial, DO-201AA, DO-27	1		Zener	-55 °C	175 ░C	10.8 V	1.5 kW	1500 W	1.5KE	17.3 V	9.72 V	AEC-Q101	Automotive
Vishay General Semiconductor - Diodes Division 1.5KE12CA-E3/51	89.8 A	Through Hole	Axial, DO-201AA, DO-27	1	General Purpose	Zener	-55 °C	175 ░C	11.4 V	1.5 kW	1500 W	1.5KE	16.7 V	10.2 V
Vishay General Semiconductor - Diodes Division 1.5KE12AHE3_B/C	94 A	Through Hole	Axial, DO-201AA, DO-27		Telecom	Zener	-55 °C	175 ░C	11.4 V	1.5 kW	1500 W	1.5KE	16.7 V	10.2 V	AEC-Q101	Automotive	1

Part

Current - Peak Pulse (10/1000µs)

Mounting Type

Package / Case

Bidirectional Channels [custom]

Applications

Type

Power Line Protection

Operating Temperature [Min]

Operating Temperature [Max]

Voltage - Breakdown (Min) [Min]

Power - Peak Pulse

Supplier Device Package

Voltage - Clamping (Max) @ Ipp [Max]

Voltage - Reverse Standoff (Typ)

Qualification

Grade

Unidirectional Channels [custom]

Vishay General Semiconductor - Diodes Division

1.5KE12CA-E3/54

89.8 A

Through Hole

Axial, DO-201AA, DO-27

General Purpose

Zener

-55 °C

175 ░C

11.4 V

1.5 kW

1500 W

1.5KE

16.7 V

10.2 V

Vishay General Semiconductor - Diodes Division

1.5KE12CAHE3_A/C

89.8 A

Through Hole

Axial, DO-201AA, DO-27

Zener

-55 °C

175 ░C

11.4 V

1.5 kW

1500 W

1.5KE

16.7 V

10.2 V

AEC-Q101

Automotive

Vishay General Semiconductor - Diodes Division

1.5KE12CAHE3/51

89.8 A

Through Hole

Axial, DO-201AA, DO-27

Zener

-55 °C

175 ░C

11.4 V

1.5 kW

1500 W

1.5KE

16.7 V

10.2 V

AEC-Q101

Automotive

Vishay General Semiconductor - Diodes Division

1.5KE12HE3/73

86.7 A

Through Hole

Axial, DO-201AA, DO-27

Zener

-55 °C

175 ░C

10.8 V

1.5 kW

1500 W

1.5KE

17.3 V

9.72 V

AEC-Q101

Automotive

Vishay General Semiconductor - Diodes Division

1.5KE12CA-E3/73

89.8 A

Through Hole

Axial, DO-201AA, DO-27

General Purpose

Zener

-55 °C

175 ░C

11.4 V

1.5 kW

1500 W

1.5KE

16.7 V

10.2 V

Vishay General Semiconductor - Diodes Division

1.5KE12A-E3/51

89.8 A

Through Hole

Axial, DO-201AA, DO-27

General Purpose

Zener

-55 °C

175 ░C

11.4 V

1.5 kW

1500 W

1.5KE

16.7 V

10.2 V

Vishay General Semiconductor - Diodes Division

1.5KE12-E3/73

86.7 A

Through Hole

Axial, DO-201AA, DO-27

General Purpose

Zener

-55 °C

175 ░C

10.8 V

1.5 kW

1500 W

1.5KE

17.3 V

9.72 V

Vishay General Semiconductor - Diodes Division

1.5KE12CHE3/54

86.7 A

Through Hole

Axial, DO-201AA, DO-27

Zener

-55 °C

175 ░C

10.8 V

1.5 kW

1500 W

1.5KE

17.3 V

9.72 V

AEC-Q101

Automotive

Vishay General Semiconductor - Diodes Division

1.5KE12CA-E3/51

89.8 A

Through Hole

Axial, DO-201AA, DO-27

General Purpose

Zener

-55 °C

175 ░C

11.4 V

1.5 kW

1500 W

1.5KE

16.7 V

10.2 V

Vishay General Semiconductor - Diodes Division

1.5KE12AHE3_B/C

94 A

Through Hole

Axial, DO-201AA, DO-27

Telecom

Zener

-55 °C

175 ░C

11.4 V

1.5 kW

1500 W

1.5KE

16.7 V

10.2 V

AEC-Q101

Automotive
